7 Product Specic Instructions – Manual Wheelchairs
– BRAVO Racer –

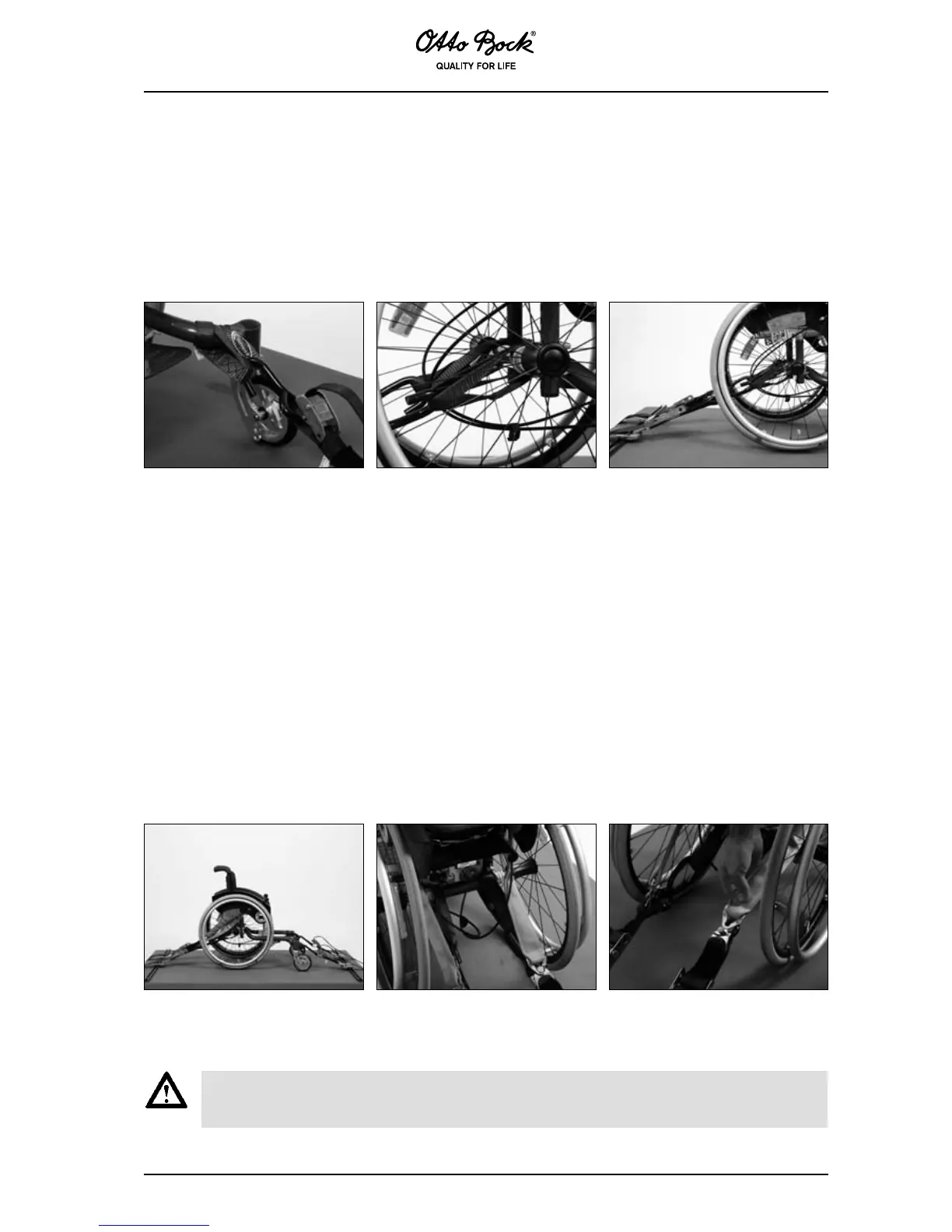

Routing the lap belt
Installation tip: Depending on the length of the belt loops you are using, you may pass them around the frame
tubes once or two times.
Attach one belt loop around the frame
tube behind the caster journals on
the left and right of the front frame,
respectively. Attach the hooks of the
safety belt system to the belt loops.
Before tightening the safety belt
system, verify the correct position of
the belt loops.
Attach one belt loop around the frame tube on the left and right of the rear
frame, respectively. Attach the hooks of the safety belt system to the belt
loops. Before tightening the safety belt system, verify the correct position
of the belt loops.
Pass the two ends of the lap belt towards the back from the sides of the
seat and attach each end of the lap belt to a pin of the safety belt system.
Attaching the anchoring points to the product
BRAVO Racer showing the correct
positioning of the tie-down straps.
This wheelchair may be equipped with a xed angle-adjustable back rest. In order to assure the
safe transportation of the wheelchair user in a vehicle, the back rest must be installed in a close to
upright position . Observe the specications in the wheelchair instructions for use.
Securing with belt loops .
You require four belt loops for installation .
