7 Product–Specic Instructions – Manual Wheelchairs
– Motus –

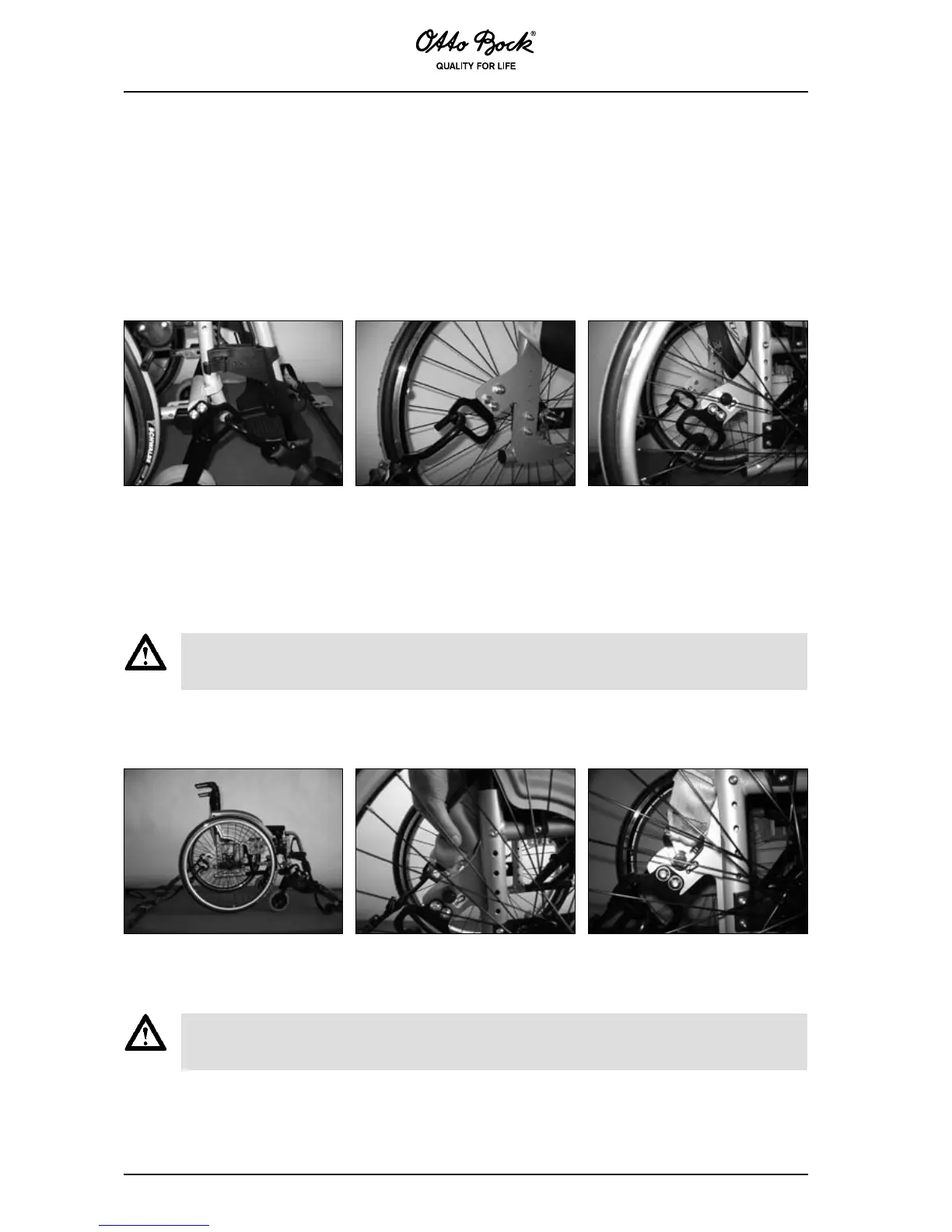

Securing with xing eyelets
Routing the lap belt
Installation tip: Attach the clamps to the frame at the positions indicated. Do not fully tighten the screws until
you have installed all clamps and anchor plates and have turned them to the proper angles.
Screw one anchoring point to the left
and right sides of the front frame,
respectively, behind the caster jour-
nals. The xing eyelets must face out.
Screw one anchor plate to the left and right inside of the rear frame,
respectively. The xing eyelets and the anchor symbols must face out.
Pass one end of the lap belt through from each side of the seat to the rear,
respectively. Now clip the ends of the lap belt to the pins on the anchor
plates.
Attaching the anchoring points to the product
Motus showing the correct positioning
of the tie-down straps.
This wheelchair may be equipped with an angle-adjustable back rest. Prior to operation, adjust the
back rest to a nearly upright position and check if the locking mechanism has engaged on both
sides. Observe the specications in the wheelchair instructions for use.
Unfortunately the xation kits cannot be used with all equipment and accessory combinations. For
existing restrictions in the combination of equipment and accessories, please refer to the 647F231
information sheet.
For assembly of the 481S00=SK018 xation kit you will need the following tools:
Ring wrenches sizes 10 and 13, Allen keys sizes 4 and 5
