25
NOTES:
• All wires of indoor and outdoor unit should be connected by a qualified person.
• If the length of power connection wire is insufficient, please contact your dealer for a new one.
Do not extend the wire by yourself.
• A circuit break must be installed in the line. The air switch should be all-pole parting and the contact
parting distance should be more than 3 mm.

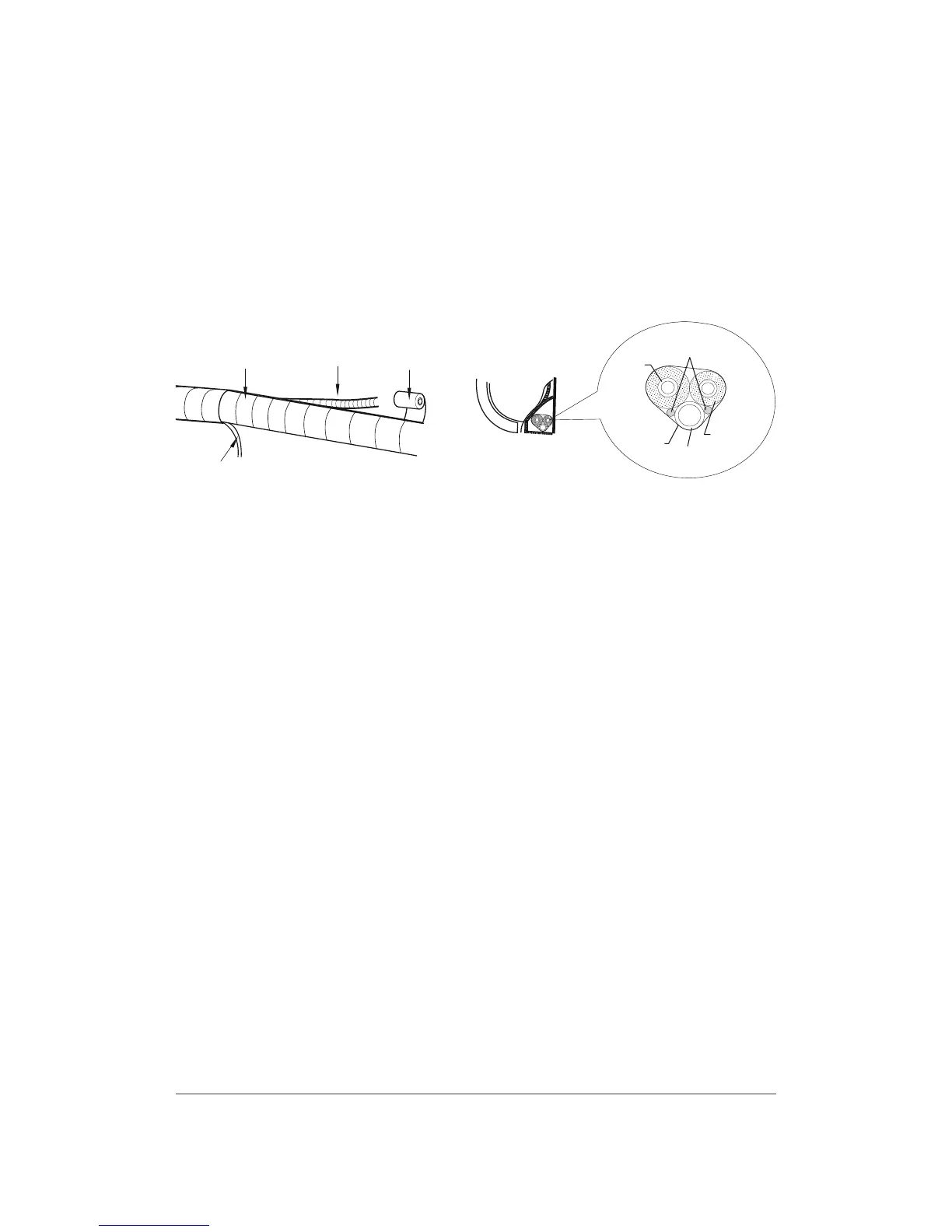

Step 8: Bind up pipes
• Bind up the connection pipe, power cord and drain hose with the band.
Connection
pipe
Drain hose
Band
Indoor power cord
Indoor unit
Gas
pipe
Indoor and outdoor
power cord
Band
Drain hose
Liquid
pipe
• Reserve a certain length of drain hose and power cord for installation when binding them.
When binding to a certain degree, separate the indoor power and then separate the drain hose.
• Bind them evenly.
• The liquid pipe and gas pipe should be bound separately at the end.
NOTES:
• The power cord and control wire cannot be crossed or winded.
• The drain hose should be bound at the bottom.
Step 9: Install the indoor unit
• Open the front panel and remove the 4 screws.
• Follow the arrow to disengage the tabs on the casing to remove the front grille.
• Remove the pillars.
• For side piping:
- Remove the 7 screws.
- Remove the upper casing (2 tabs).
- Remove the left and right casings (2 tabs on each side).
• Remove the slit portions on the bottom frame and casings using nippers.
To Next Page
