Ouellet CMD12KCHVS-I - Secure Indoor Unit to Wall

26
3 tabs

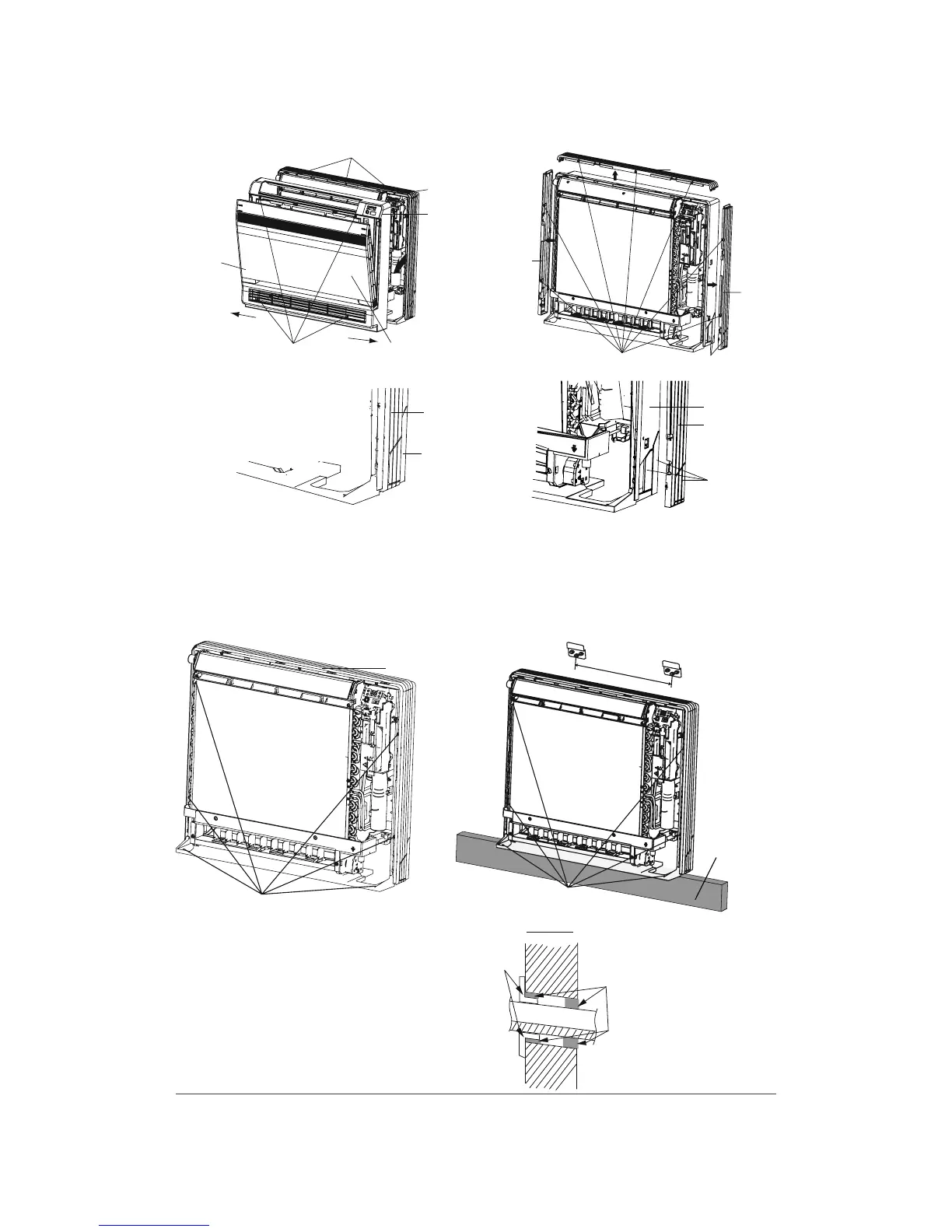

Open the front panel
Upper casing
Side
casings
Remove the pillar
Remove 4 screws
Remove 7 screws
Casing
Front grille
Casing
Bottom frame
Casing
Remove
the pillar
Remove
the pillar
Side casings
Front
panel
Remove
front grille
• Put the bound pipes in the wall pipe and then make them pass through the wall hole.
• Secure the unit using 6 screws for installation (Do not forget to secure the wall behind).
200 mm
Casing
F
loor Installation Wall Installation
Molding
6 screws
6 screws
• Stuff the gap between pipes and
wall hole with sealing gum.
• Fix the wall pipe.
• Check if the indoor unit is installed firmly
to the wall.
• Install the front panel and front grille back.
Indoor
Wall pipe
Sealing gum
Outdoor
