DC BAT 12.5V 99%
Bat -0.6A 0.000kW
Net -4AH 00.7kWH
Days Since Full 4.8

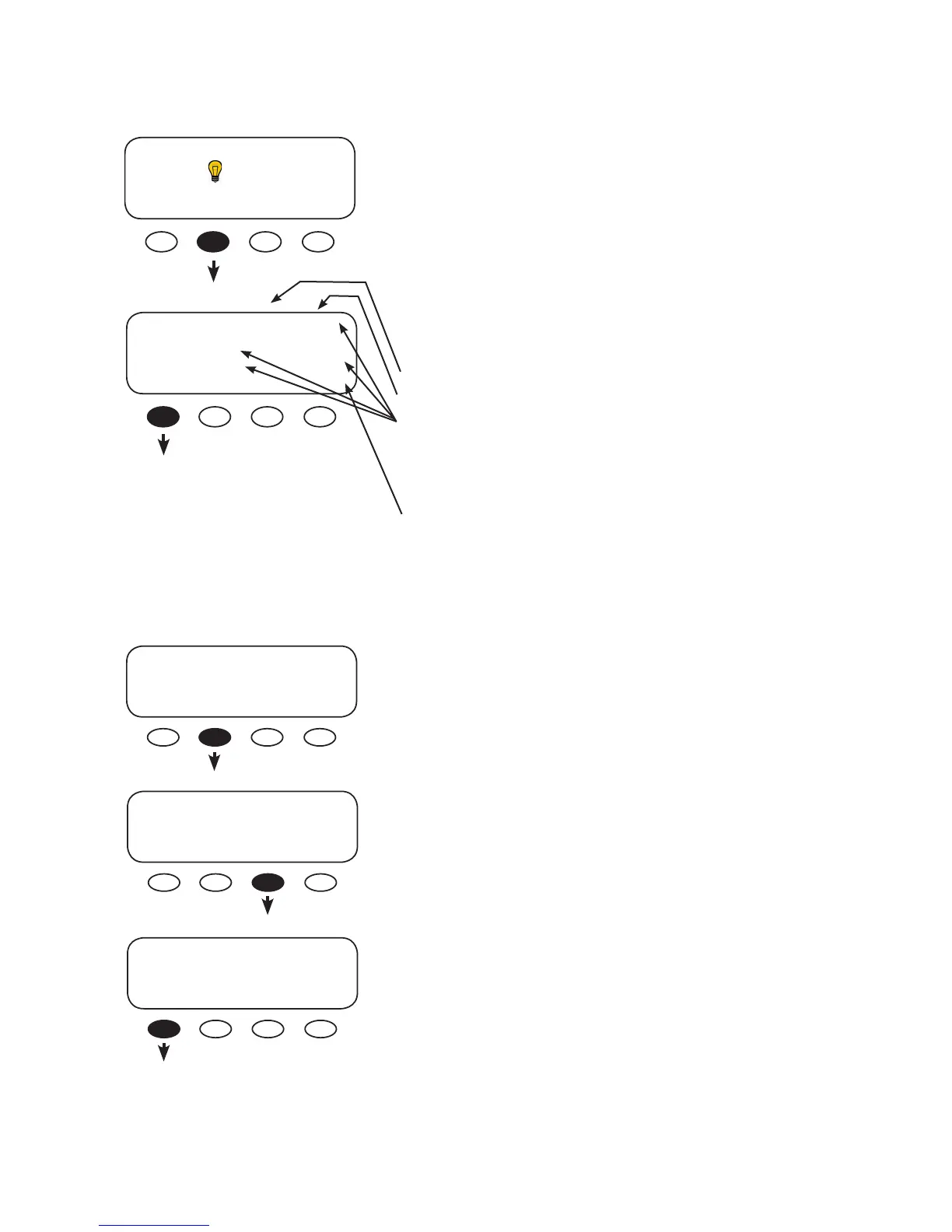

The fourth SUM screen shows:
• Battery voltage
The current state-of-charge
• Battery readings show the instantaneous amp, amp hour,
kilowatt, and kilowatt hour gures. When comparing the
amp hours reading to “FULL, the gure is charge factor
compensated.
•The number of days since the battery last met the charge
parameters.
Press the rst soft key to return to the Main screen.
Press the <STATUS> soft key to open the STATUS screen to
view the status of either the FX, Charge Controller, of FLEXnet
DC
MAIN------------------------------
11:30:55A
SUM STATUS SETUP ADV
Press the <DC> soft key to view the status of the FlexNet DC
STATUS
choose device:
FX CC DC MAIN
Press the <METER> soft key to view the FlexNet DC meter
readings.
STATUS/DC/PAGE1 --------------
STATS
METER SHUNT BATT TOP
From the MAIN MATE menu, press the <SUM> soft key to
view a summary of the systems operation. This information is
a sum of all FlexNet DC data. Press the second soft key to view
the next SUM screen
FX Total 12.6V 99%
Inverting 0.000kW
AC Loads 0.000kW
Buying $ 0.000kW
