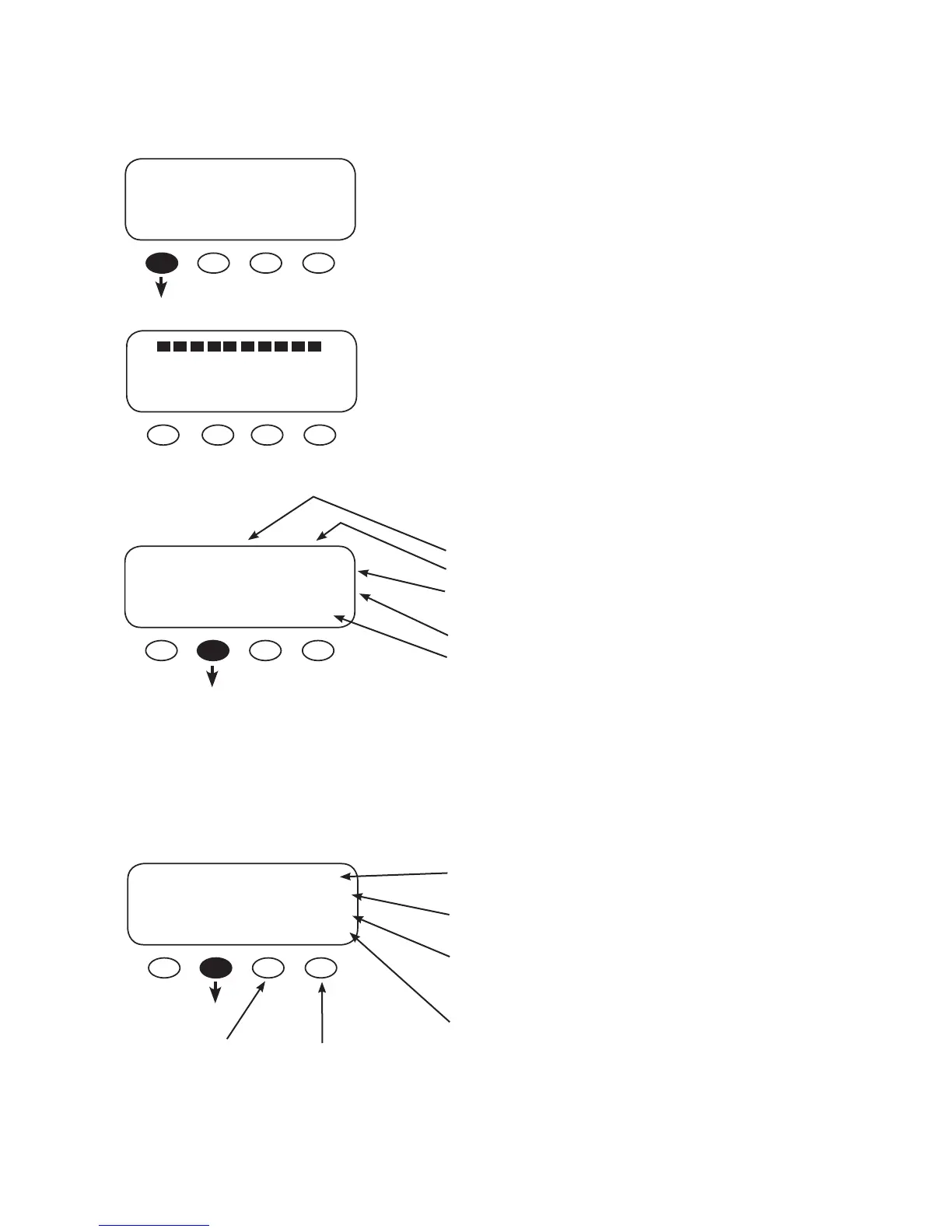

From the MAIN MATE menu, press the <SUM> soft key
to view a summary of the system’s operation.
MATE Screens
DC Today min/SOC 76%
In 347AH 9.040kWH
Out 331AH 8.510kWH
Bat 16AH 0.530kWH
• Minimum SOC today (since midnight)
• In: Amp hours and kiloWatt hours from sources
today
• Out: Amp hours and kiloWatt hours output by
system today
• Bat: Dierence of battery in and out amp hours and
kiloWatt hours
Press the second soft key to view the next SUM screen
Press to view
previous days’ history
Press to move
forward one day
MAIN-------------------------------
11:30:55A
SUM STATUS SETUP ADV
• Battery voltage
• The current battery state-of-charge (SOC)
• In shows the amount of DC current coming into the
system from all sources
• Out shows DC current from the system
• Battery displays dierence between the In and Out
values and shows whether the battery is storing or
using current
Press the second soft key to view the next SUM screen
(the screens will also scroll automatically after a user-
determined period of time programmed in the MATE).
DC NOW 12.5V 99%
In 0.0A 0.000kW
Out 0.5A 0.000kW
Bat -0.5A 0.000kW
This rst summary screen appears for a few seconds
to display the battery State of Charge. The screen
automatically disappears and a system summary
screen appears.
E F
Battery Charging
State of charge 99%
