BAT + BAT -

CHARGE CONTROLLER

FX INVERTER/CHARGER

SHUNT C

SHUNT B

SHUNT A

CHARGE CONTROLLER BATTERY -

FX BATTERY -

BATTERY -

A BAT (-)

A DEVICE

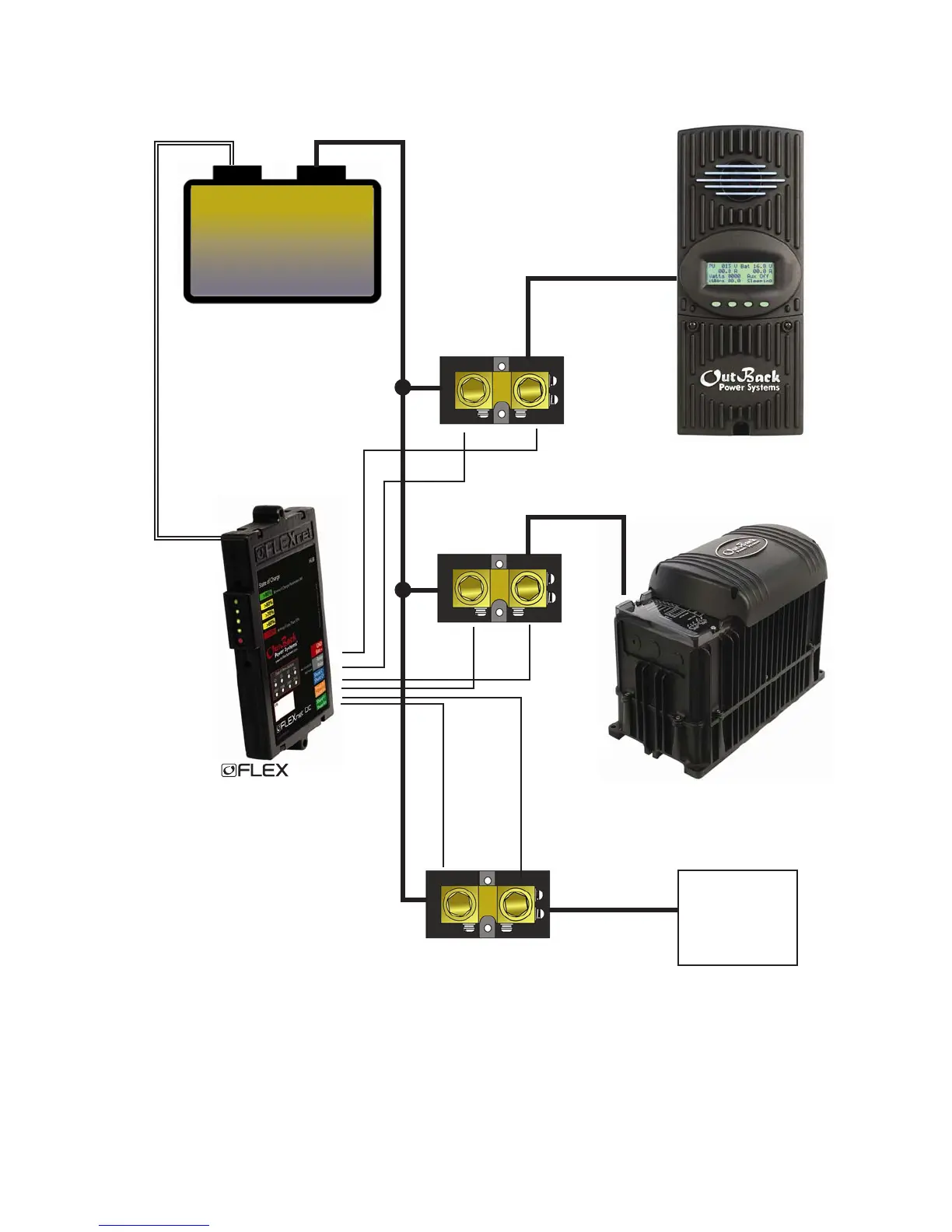

Think of the input shunts as breaks or junctions in the DC (-) conductor. The current is conducted

as though it were a continuous conductor, but the shunts allow the user to monitor the current,

providing information for more accurate battery recharging.

OTHER DC

SOURCE OR

LOAD

net DC

B BAT (-)

B DEVICE

C BAT (-)

C DEVICE

SYSTEM OVERVIEW
