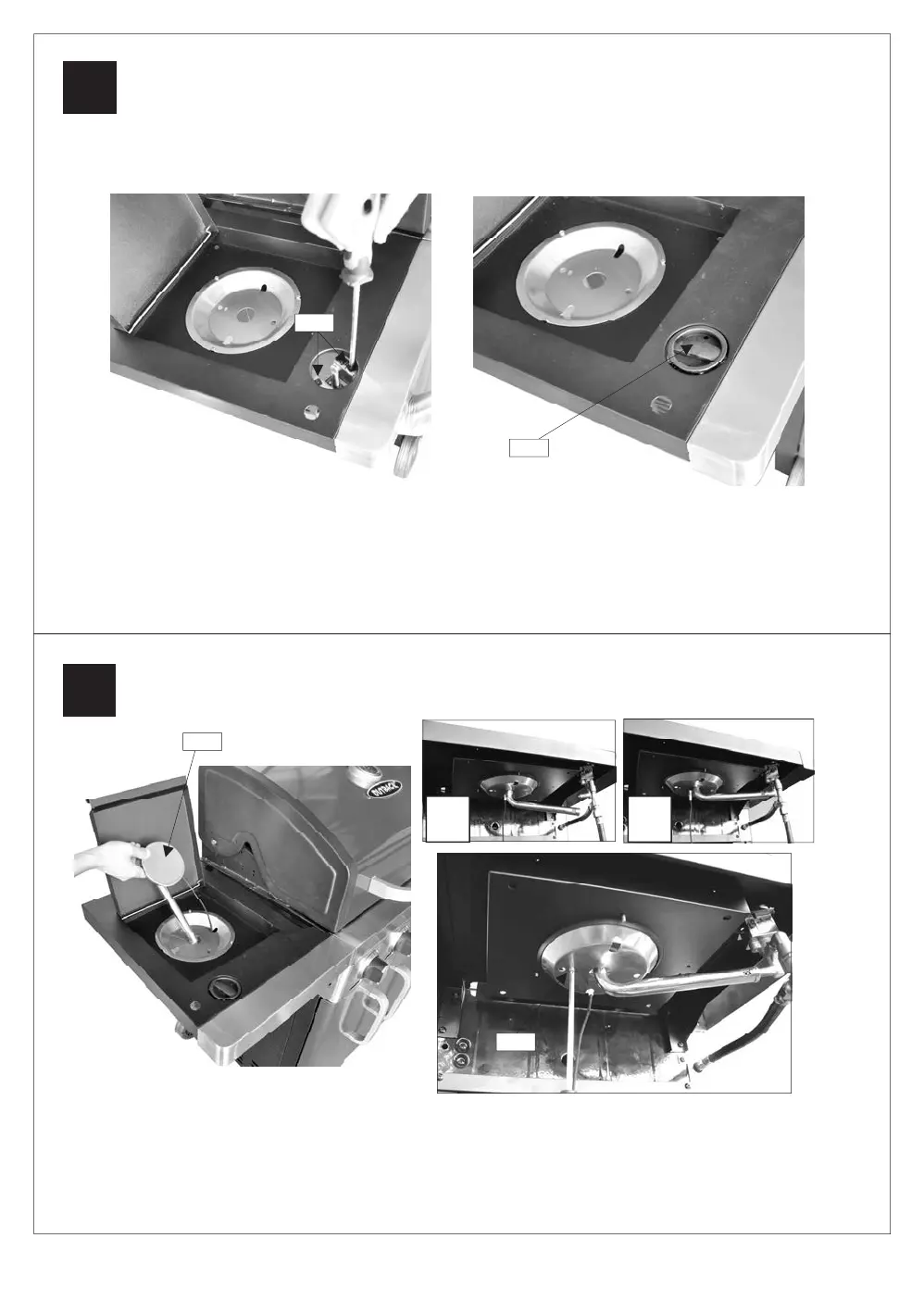

Feed the venturi tube of the Side Burner (C9) through the hole in bottom of the side burner shelf,
and fix it onto side burner shelf using a M4x10 Bolt (D5x1pcs) as shown. Make sure that the end
of venturi tube is set over the gas outlet of side burner valve.
Attach the side burner valve onto side burner shelf using M4x10 Bolts (D5x2pcs) as shown. Press
the Side Burner Knob (C7) onto side burner valve stem.
C9
D5
C7
D5
To Next Page
