Outbound 084-6693-4 - Assembling the Top Rail Frame; Assembling the Leg Tubes to the Top Rail Tubes

10
Model No. 084-6693-4
TM

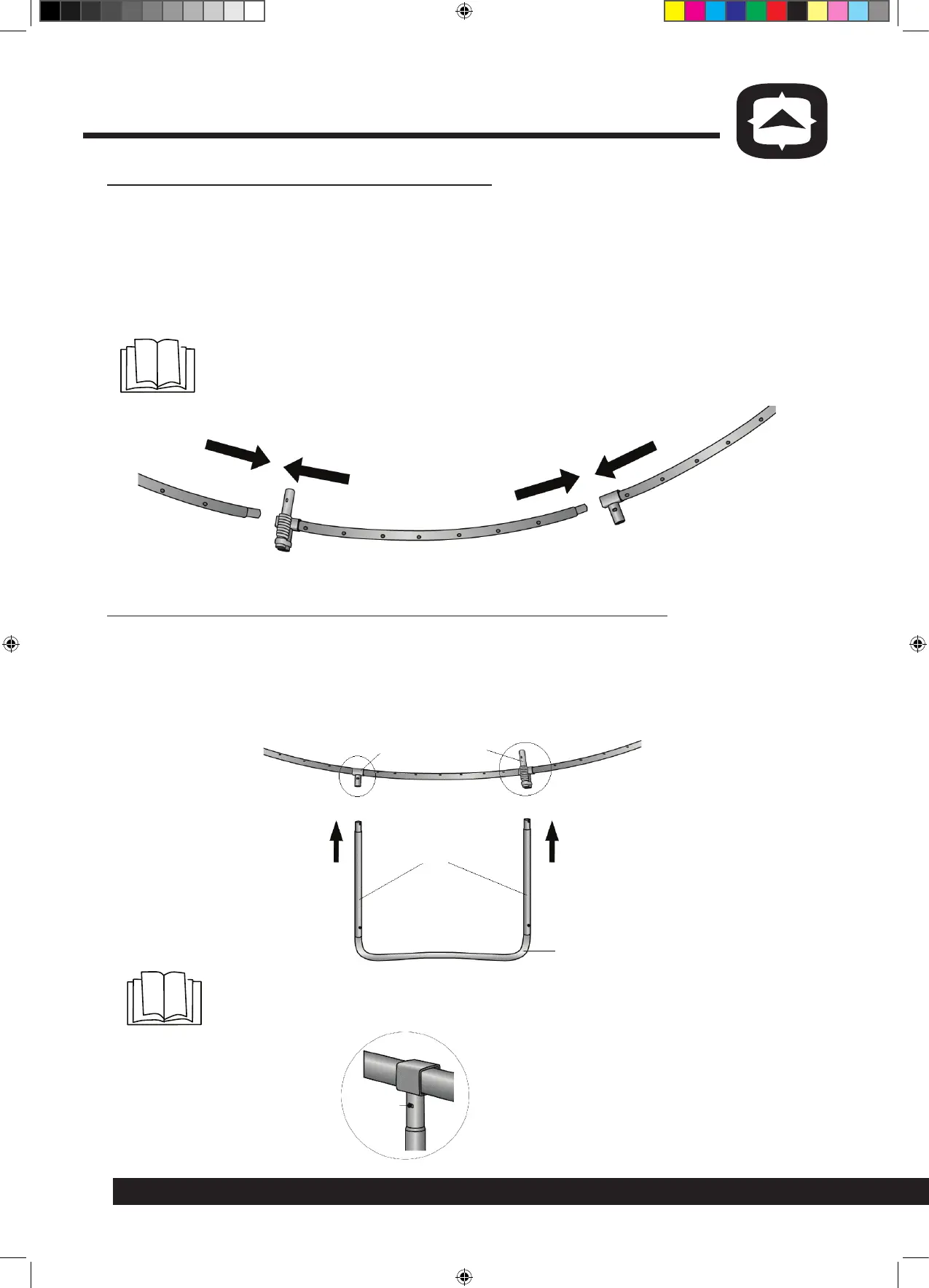

Step 3: Assembling the top rail frame
• Connect Top Rail Tubes (9A & 9B) to the T-Joints (4 & 5). Make sure
on T-Joints (5), the side with Spring Mechanism faces away from the
centre of the trampoline. Always slide the bigger end of the Top Rail
Tube (9A & 9B) into the T-shaped Joints (4 or 5) first. Repeat this step
with the other 11 rail tubes, making a total of 12 top rail sections.
• Connect all 12 assembled sections into one circle.
STEP 4: Assembling the leg tubes to the top rail tubes
• Connect the assembled Leg Tubes to the assembled Top Rail Frame.
• Slide the T-joints (4 & 5) into the Vertical Legs (6), make sure that the
locking tabs on the Vertical Leg Tubes (6) go through the hole on the
T-Joints (4 & 5).
Locking
tab
6
4
5
7
ASSEMBLY
Note: Make sure all the locking holes and tabs are facing inner
toward the jumping mat.
Note: When connecting the Top Rail Tubes (9A & 9B) to the
T-Joints (4 or 5) be sure that the hole on each T-Joint is facing the
inner side of the Top Rail Frame.
