Outbound 084-6693-4 - Affixing the Supporting Poles to the Trampoline Legs

16
Model No. 084-6693-4
TM
Allen KeyAllen Key
14
14
5
13
13
8

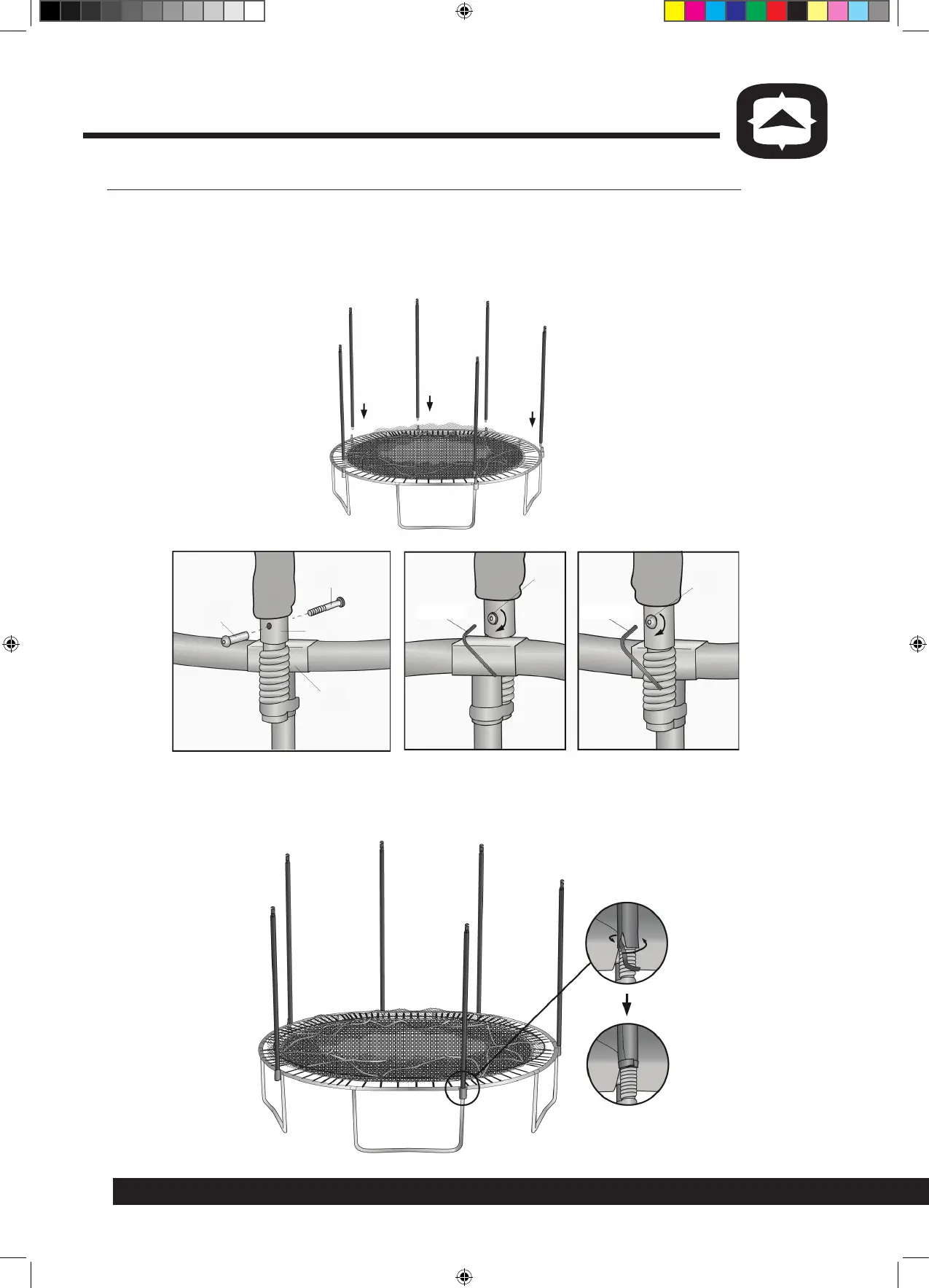

STEP 10: Axing the supporting poles to the trampoline legs
• Connect the Lower Supporting Poles (8) to the trampoline by inserting them
into each of the T-joint with Spring Mechanism (5).
• Secure each Lower Supporting Pole (8) with a Hex Bolt (14) and Nut (13)
using Allen Key (22).
• There is a hook-and-loop tapes added at the lower end of the pole foam
sleeves to prevent the whole pole foam & sleeves from sliding down to
cover up the red spring pole mechanism. Secure it as shown below.
ASSEMBLY
