Outbound 084-6693-4 - Support Poles and Enclosure Assembly

15
Model No. 084-6693-4
TM
ASSEMBLY
Hole
Locking
tab
3
2

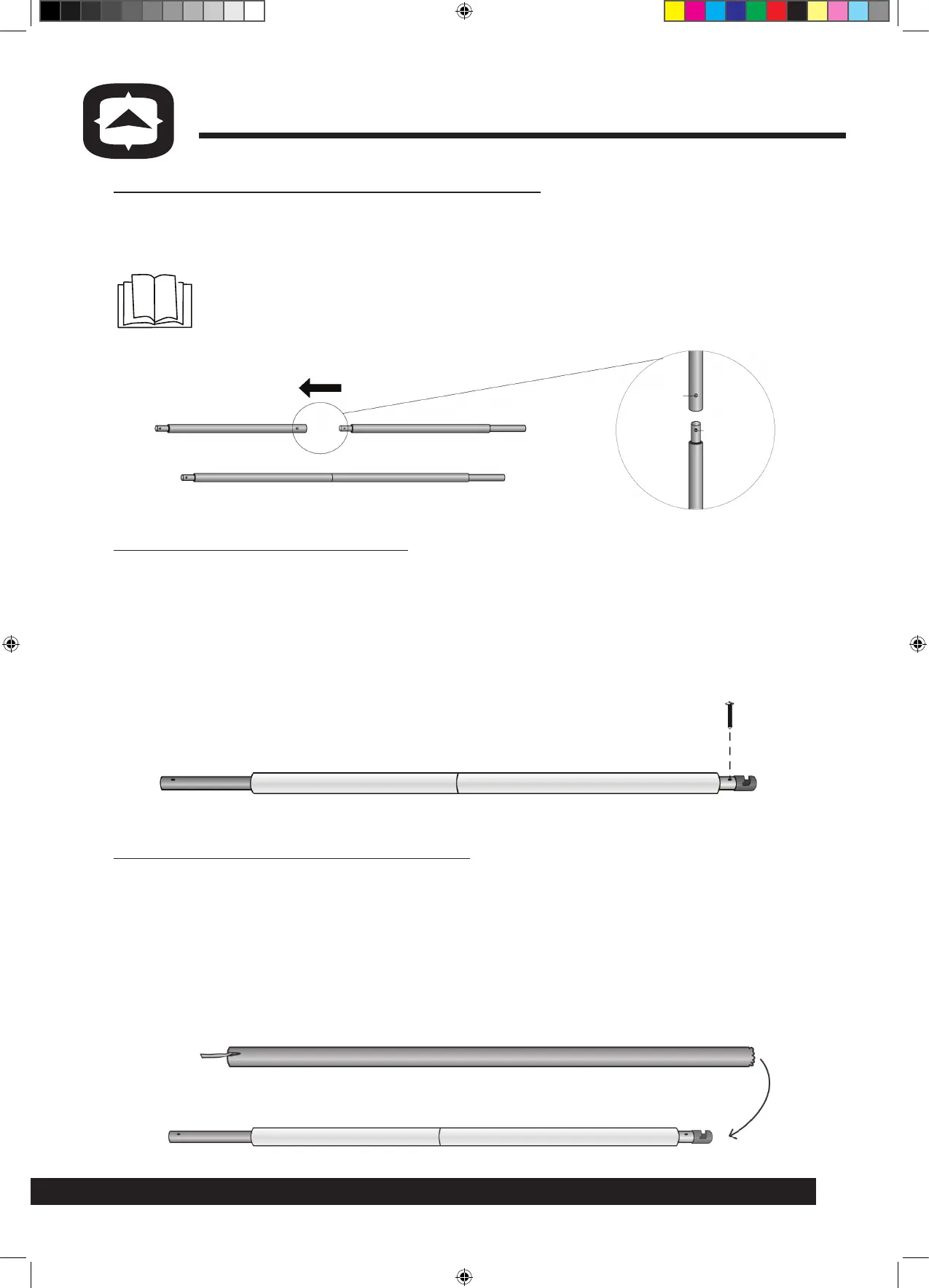

STEP 7: Assembling the supporting poles
• Connect all six Upper Supporting Poles (17) to the six Lower Supporting
Poles (8). Make sure that the locking tabs “click” into the holes of the Upper
Supporting Poles (17).
STEP 8: Axing the ball cap
• Place a Ball Cap (2) onto the top end of each Upper Supporting Pole (17).
Make sure that the screw hole on the Ball Cap (2) is aligned with the screw
hole on the top end of the Pole.
• Fasten the Ball Caps (2) using the Ball Cap Screws (3).
STEP 9: Attaching the foam sleeve
• Insert the assembled Upper and Lower Supporting Poles (17, 8) into the
wider opening of the Foam Sleeve (16).
• Slide the assembled poles in until the top end of the Upper Supporting
Pole (18) comes out on the opposite side.
• Make sure that the Sleeve (16) covers the entire pre-installed foam of the
Supporting Poles.
Note: All of the Supporting Poles come with pre-installed
Pole Foams (18 or 15).
