2.2. FRAME BAR SPECIFICATIONS
FRM1-AL630
Superfly
/
Mantas28
is a frame bar
approved and certified for these two line array ele-
ments that share the same integrated hardware.

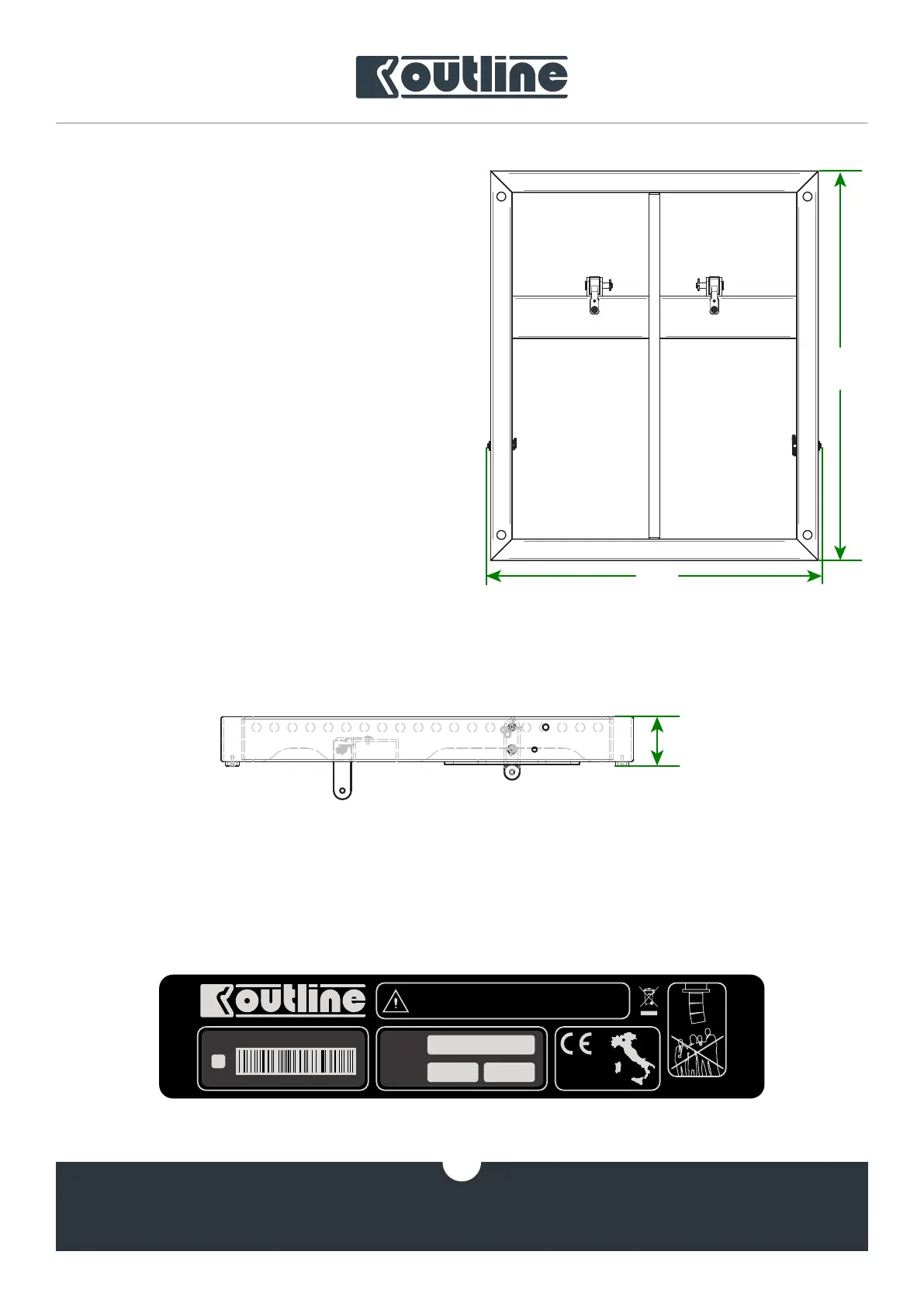

Below you will find the specifications of the frame
bar:
• Weight…………………………….………………....... 28 kg
• Material.…………..... Ultra-resistant aluminium
• Width.......………………………………..………. 790 mm
• Length.....………………………………...……… 917 mm
• Height………………………………………..……. 110 mm
790
917
110
The maximum declared load is 630 kg, including the line array elements, their cables, spansets, shackles
and additional safety locks. It is necessary in any case to follow the parameters given in the chapter above and
respect the limits imposed by OpenArray2 in the design phase.
SERIAL N°
Designed and
manufactured
with pride in Italy
MAX LOAD
WEIGHT
CAUTION
YEAR
TESTED
outline.it
READ INSTRUCTIONS BEFORE USE.
DO NOT STAND OR WALK UNDER
THE SYSTEM WHEN IT IS FLOWN.
S.N°: 000000000
MODEL: A FRM1-AL630
TESTED
MAX LOAD
21.5 kg 47.4 lb
WEIGHT
630 kg - 1388 lb
