2.4. LOCKING PINS
The locking pins on the back and front of the cabi-
nets are practical and convenient to use, guaranteeing
maximum safety.
They are made of ultra-resistant steel and once in-
serted into the lock point the whole body of the line
array element remains stable mantaining the chosen
pointing angle. The pins chosen for
Superfly
and
Man-
tas 28
are of two types and differ only in their length:
the longer ones (
BLC6BA14S
) have been chosen for
the rear hardware parts, while the shorter ones (
BL-
C6BA12S
) have been chosen for the front hardware
parts.
All the pins are fixed to the cabinet by means of a
lanyard, to avoid their loss.
The specifications of the locking pins:

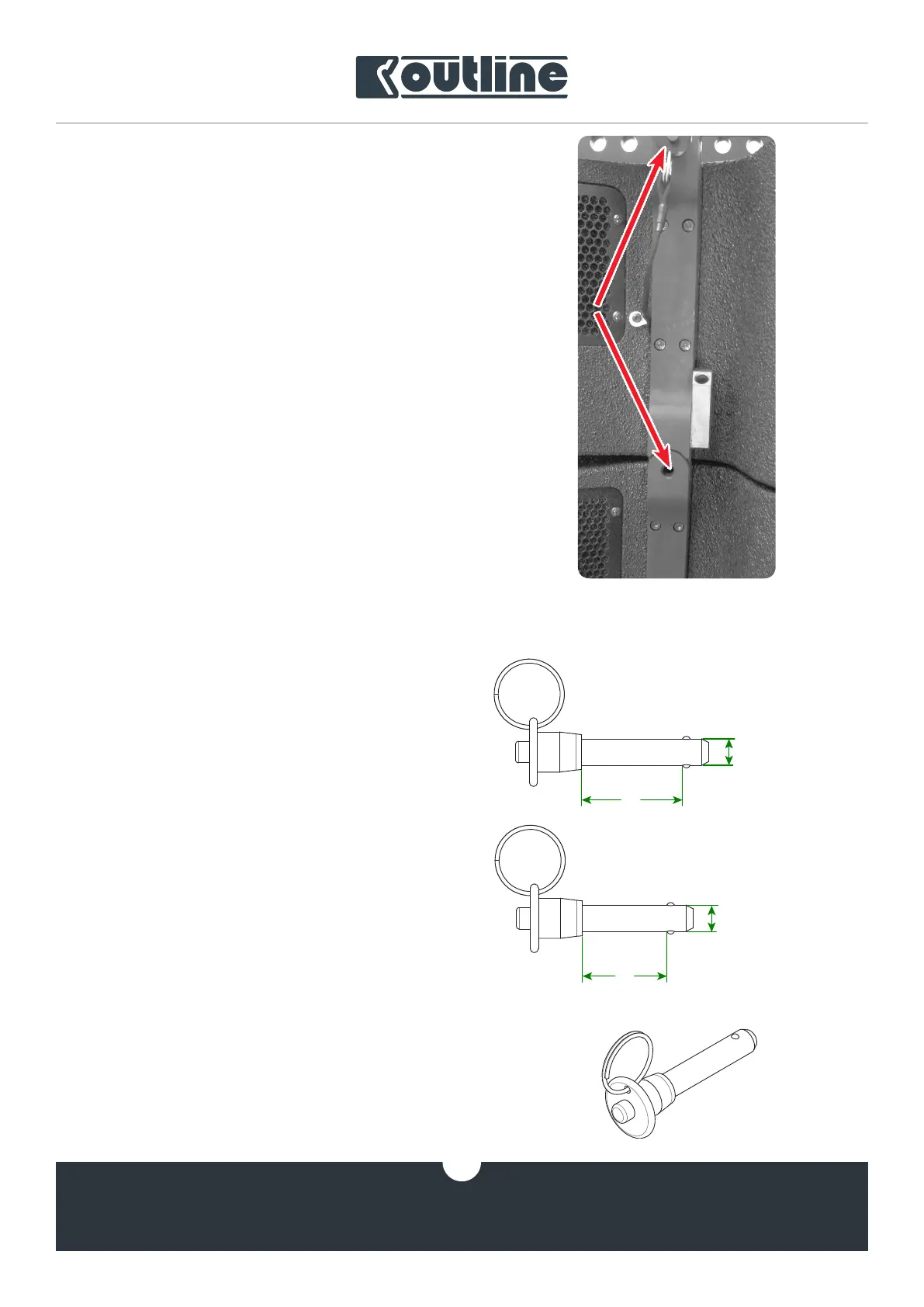

The front of the cabinet (figure 3) has non-adju-
stable hardware parts on both sides, complementary
to the rear ones.
The example in Figure 3 shows a first element fa-
stened to the frame and a second element ready to
be fastened. Learn more about the various steps in
Chapter 4.
figure 3
item nr. BLC6BA14S
item nr. BLC6BA12S
• Weight………………….....………….……………… 30 / 40 g
• Material.....………….............. Ultra-resistant steel
• Diameter (body)...……………………………...... 9.5 mm
• Depth (body).........……………….………..... 30 / 36 mm
36
9.5
9.5
