4. RIGGING PROCEDURE
4.1. PREPARATION
4.1.1. SPLAY ANGLES
Once the necessary motors have been arranged
according to the project and the elements are out of
their flightcases, it is possible to proceed with the rig-
ging.
However, we suggest you follow the steps descri-
bed below to do everything with ease.
Pre-set the splay angles between the array ele-
ments in pairs, according to OpenArray2 project in-
structions, while still positioned on their trolleys:

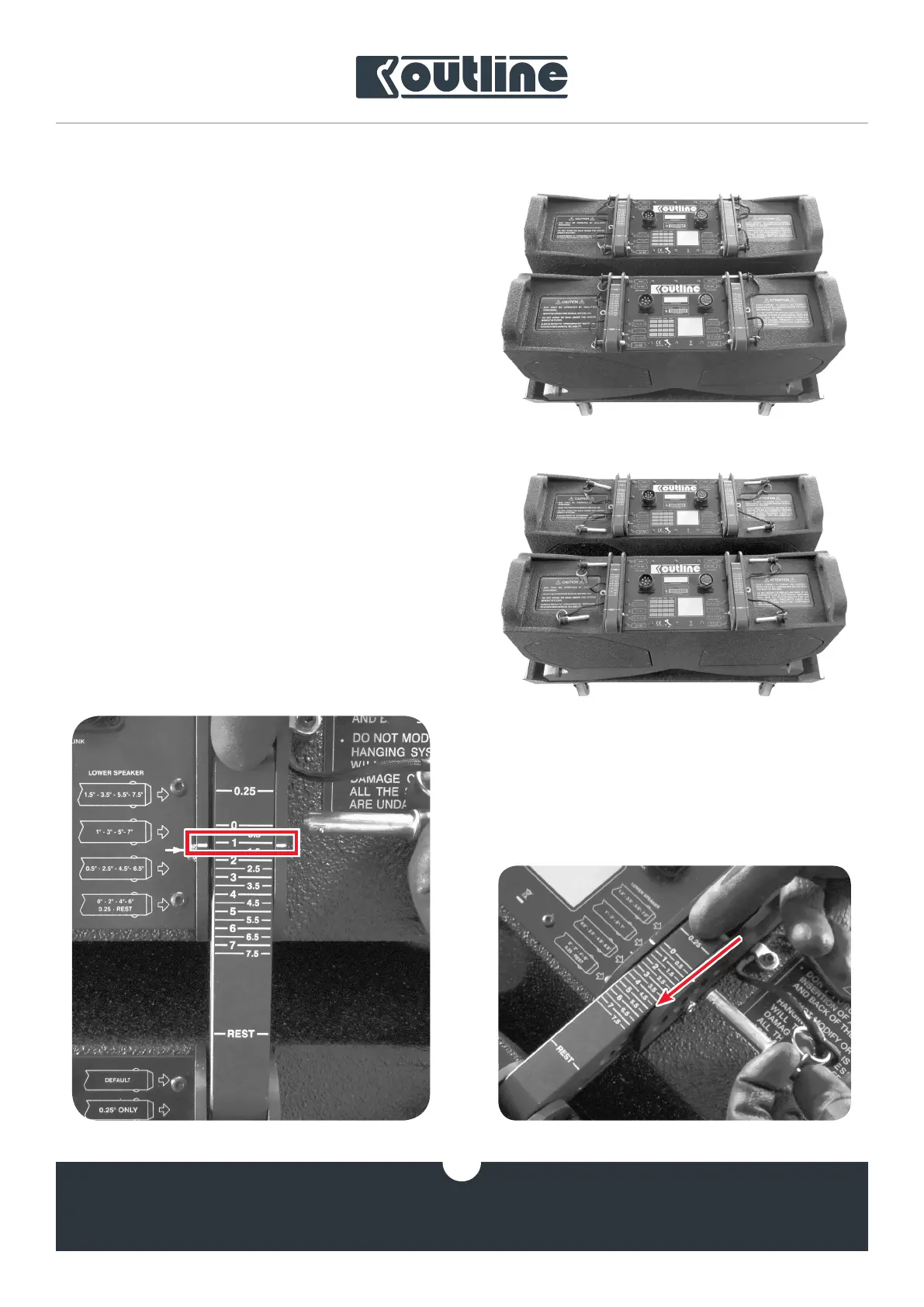

1. unlock the sliding bars (figure 11);
figure 10
figure 11
figure 12 figure 13
2. position the sliding bars aligning the chosen
degree point with the marker (white line) on the
rails containing them (figures 12 - 13);
