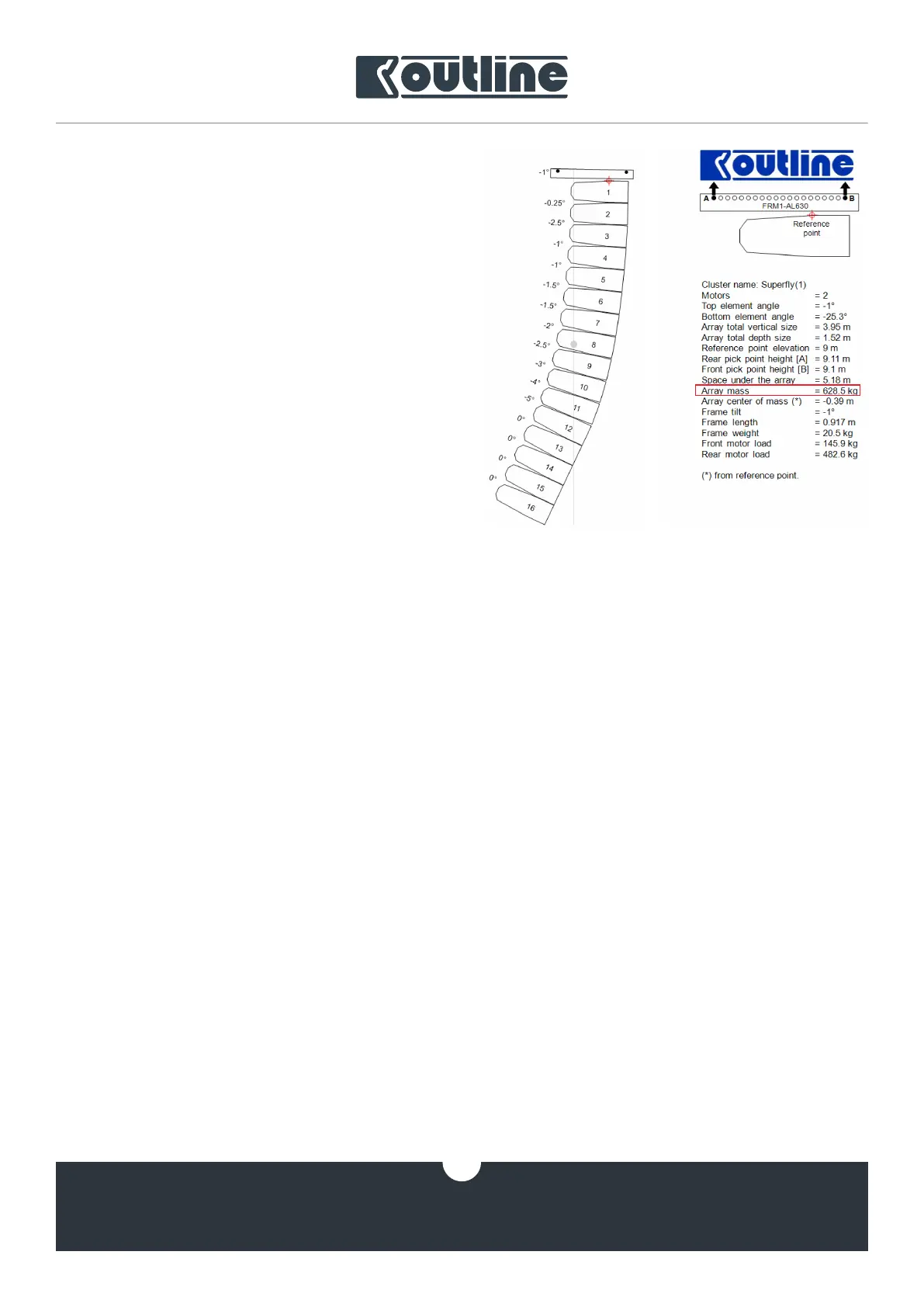

Based on what stated in chap. 2.1, as in the exam-
ple in figure 9, when setting 16 Superfly elements in
the project the final weight of the array (array mass)
will be different from the declared 608 kg (1340 lb).
This happens because the software sums also the
weight of the frame and the approximate weight of
other elements, such as cables, spansets, inclinome-
ters and other small accessories, to the array weight.
Once all these points have been cleared, we can
proceed to the rigging execution phase.
figure 9
