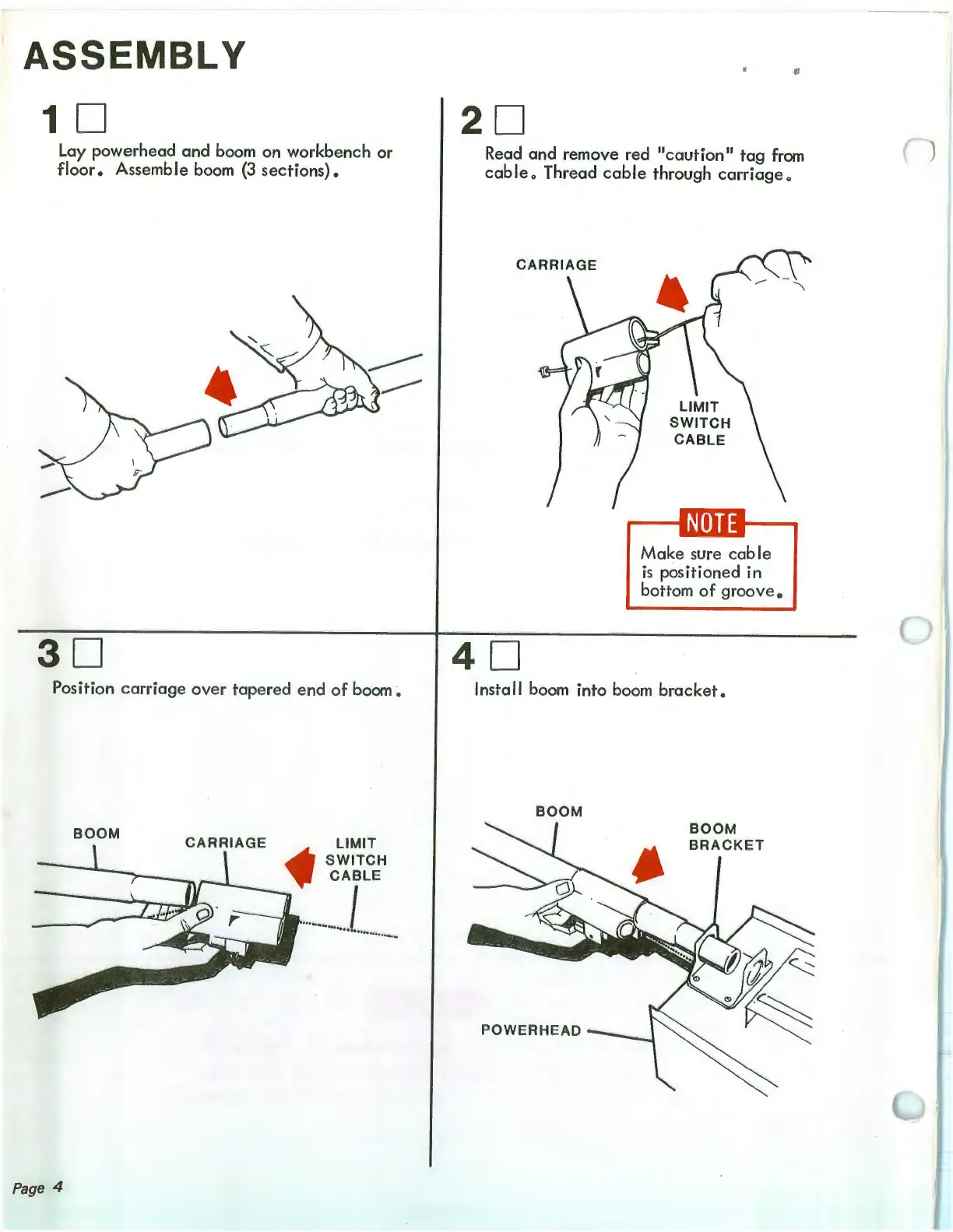

ASSEMBLY
10
Lay powerhead and boom on workbench or
floor. Assemble boom (3 sections).
30
Position carriage over tapered end of boom~
BOOM
CARRIAGE
Page 4
LIMIT
•
SWITCH
CABLE
... _ l
..............
...... __
20
Read and remove red "caution" tag from
cable o Thread cable through carriage o
40
Make sure cable
is positioned in
bottom
of groove.
Install boom into boom bracket.
BOOM
BOOM
BRACKET
POWE RHEAD
