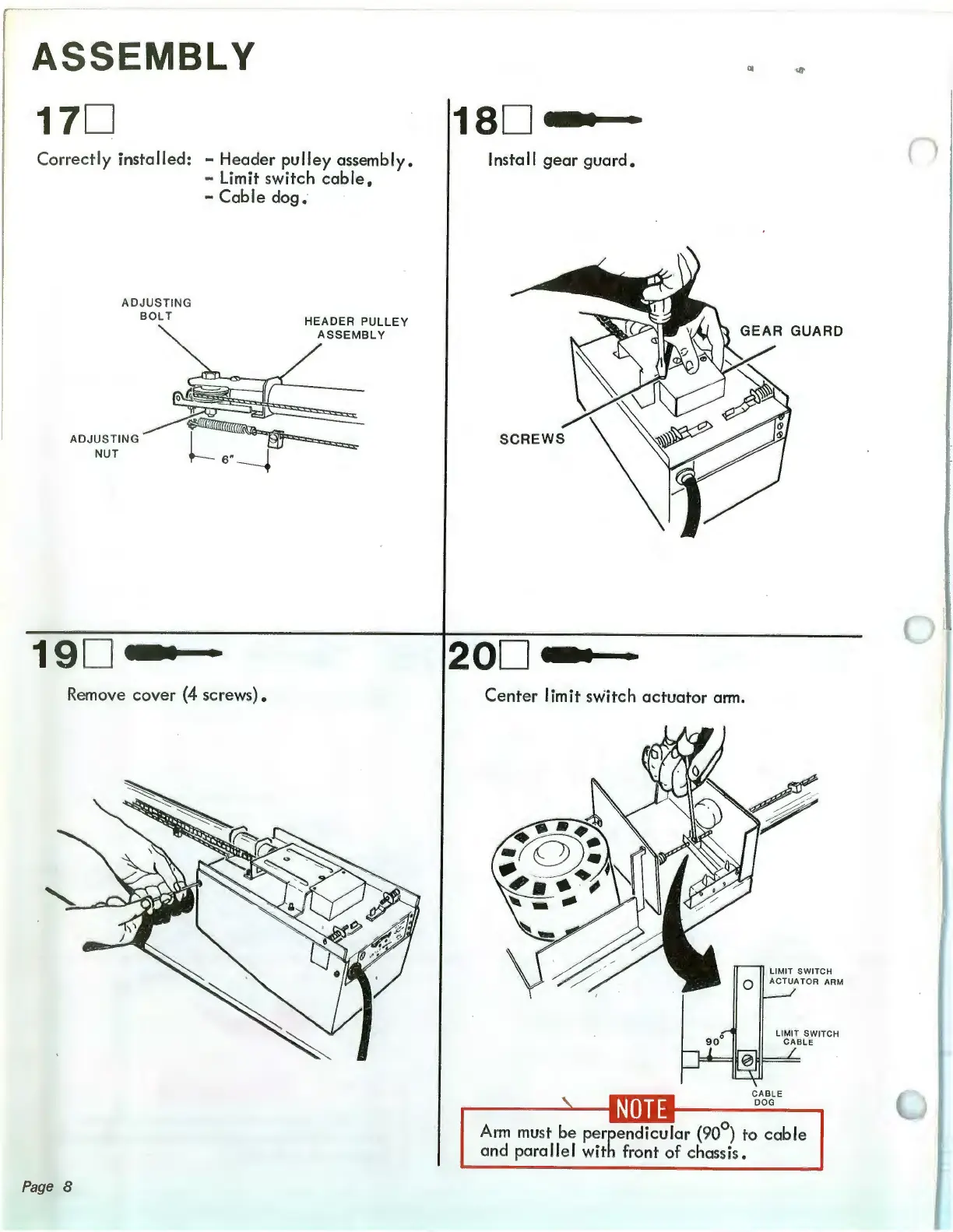

A SSE MBLY
170
Correctly installed : - Header pulley assembly.
- Limit switch
cable,
ADJUSTING
BOLT
ADJUSTING
NUT
190
- Cable dog.
HEADER PULLEY
ASSEMBLY
Remove cover (4 screws).
Page 8
180
Install gear guard.
200
Center limit switch actuator arm.
CABLE
DO G
Arm must be perpendicular (90°) to cable
and parallel with front of chassis.
