Installation
4
OWC Data Doubler

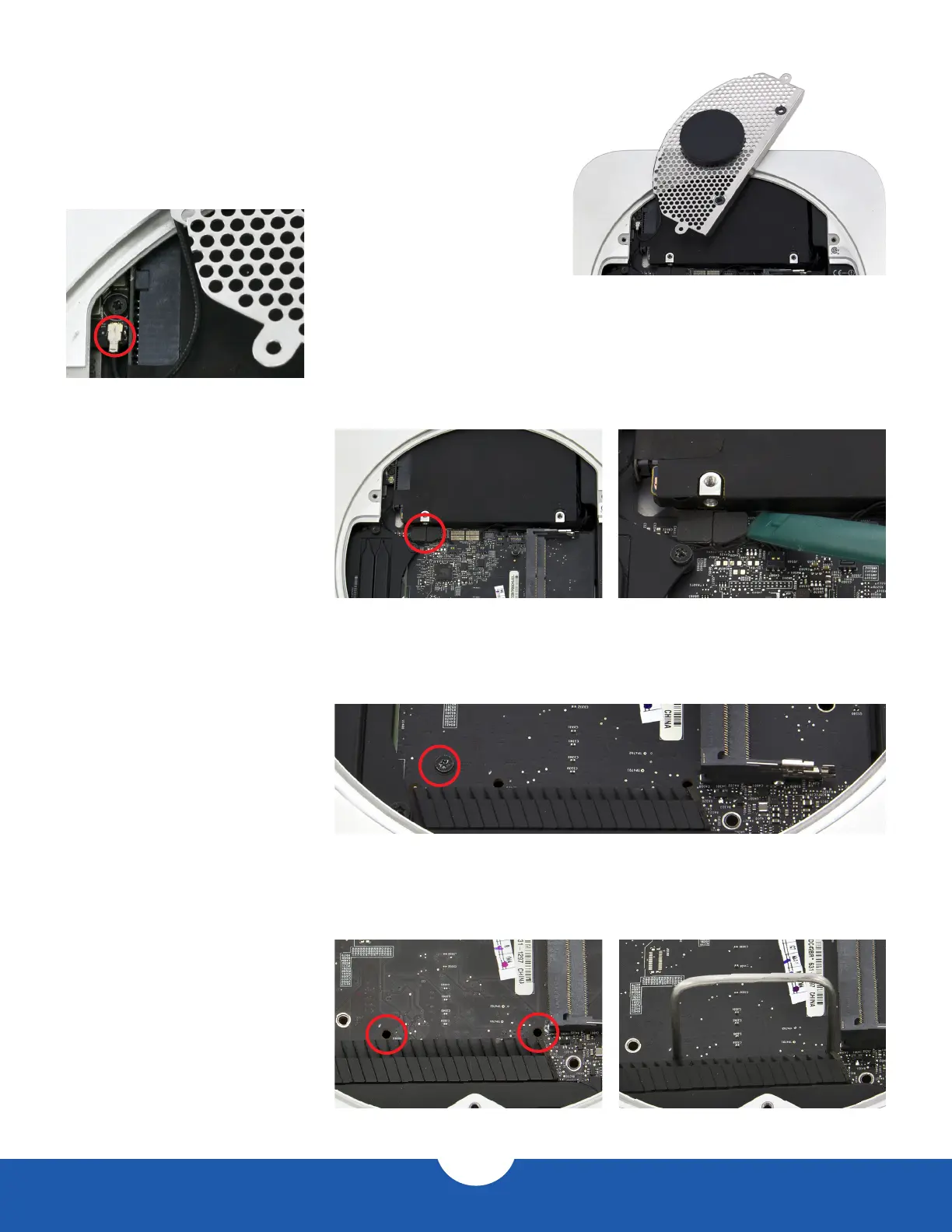

9. Lift up carefully on the antenna plate and move it slightly
up and to the right in order to reveal the antenna cable attached
to the wireless card, as shown in the picture to the right.
10. Disconnect the antenna cable, circled in the picture to the left.
Be careful, as the connection is fragile and can break. Gently lift the cable
connector directly up. The nylon pry tool or a pair of tweezers may help.
11. Disconnect the hard drive ex
cable and the optical drive ex cable,
as shown in the pictures to the right.
Use the nylon pry tool to lift the cable
connectors free from the logic board.
12. Remove the T6 screw
at the bottom left of the logic board,
circled in the picture to the right.
13. Insert the logic board removal
tool into the two holes
at the bottom of the logic board,
as shown in the pictures to the
right. Make sure the tool is securely
seated in the holes.
To Next Page
