USER IGNITION SIGNAL, 1A (F102)
This fuse will not be pre-mounted on, but supplied with, the Helm Harness.
The “User ignition signal, 1A” is only supposed to drive low power applications that
needs an ignition signal, e.g. relays (NOT power supply!). Therefore, a separately
fused relay must be used to supply currents higher than 0,75 Ampere. If a relay is
used, the relay signal ground must be connected close to a battery and the relay
power supply must also be connected to a battery.
Fuse size: 1A

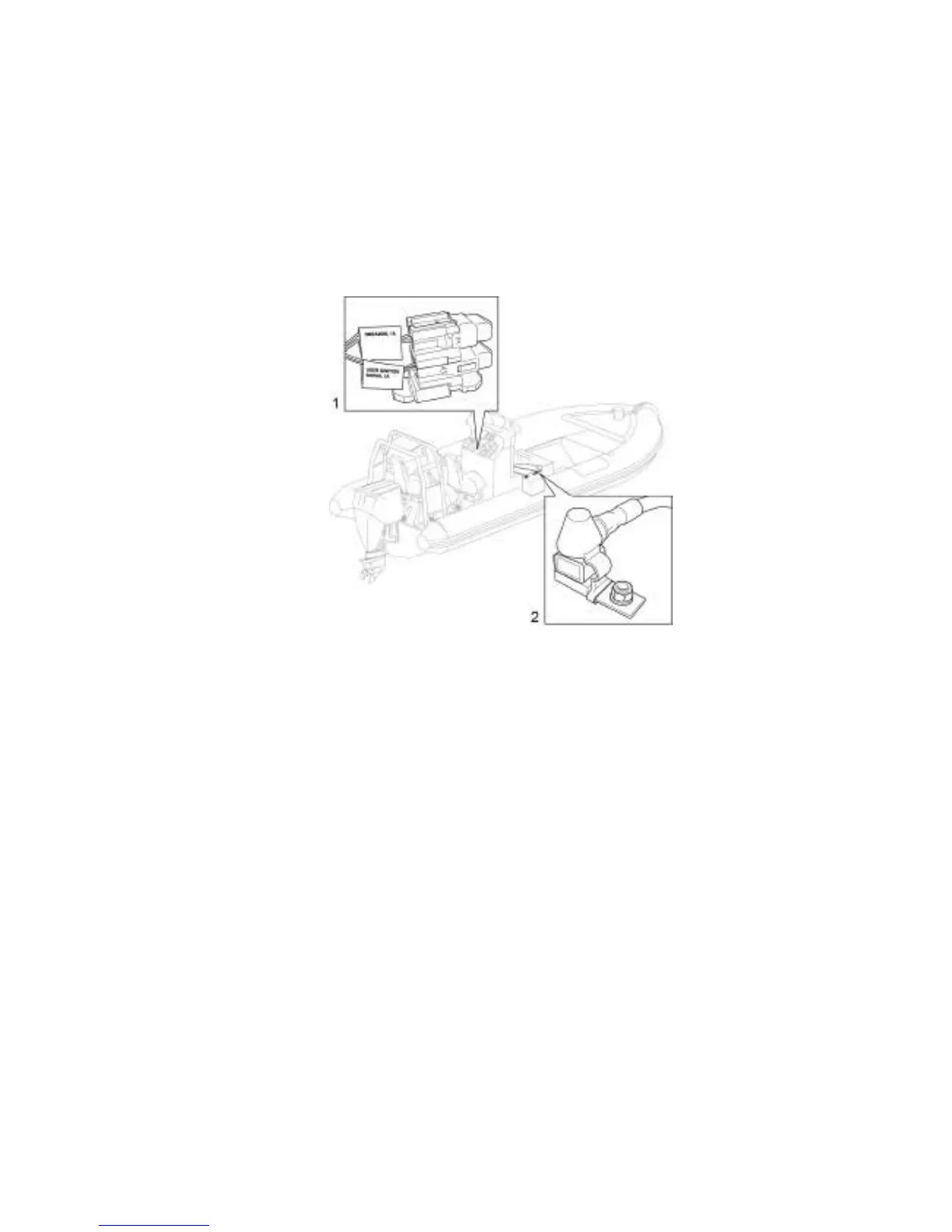

1. Connect all applicable helm related devices to the helm harness (items
applicable):
- Ignition key (s)
- Emergency Stop (s)
- Throttle handle (s)
- Display (s)
- Diagnostic adaptor harness (es) (if applicable -preferred in order to
perform a pre-start-up control)
