OXE 150/200 HP INSTALLATION MANUAL
WIRING
Power trim and tilt unit power cable assembly

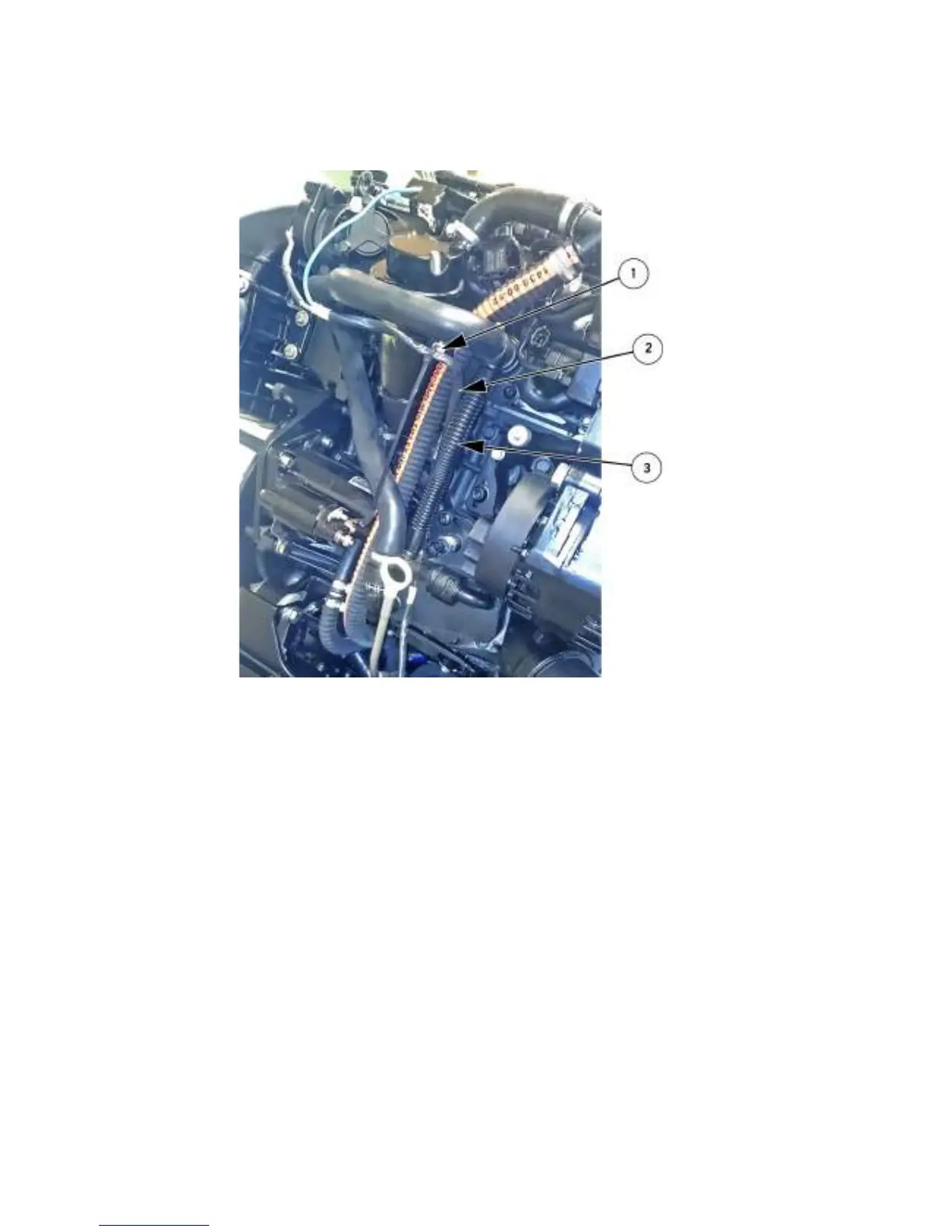

1. Use an arrow head clip (1) on cyclon in order to fasten the PTT power cable.
2. Route the ppt power cable (2) behind the cooling fluid return pipe (3) from
the oil cooler.
