OXE 150/200 HP INSTALLATION MANUAL
FUEL SYSTEM

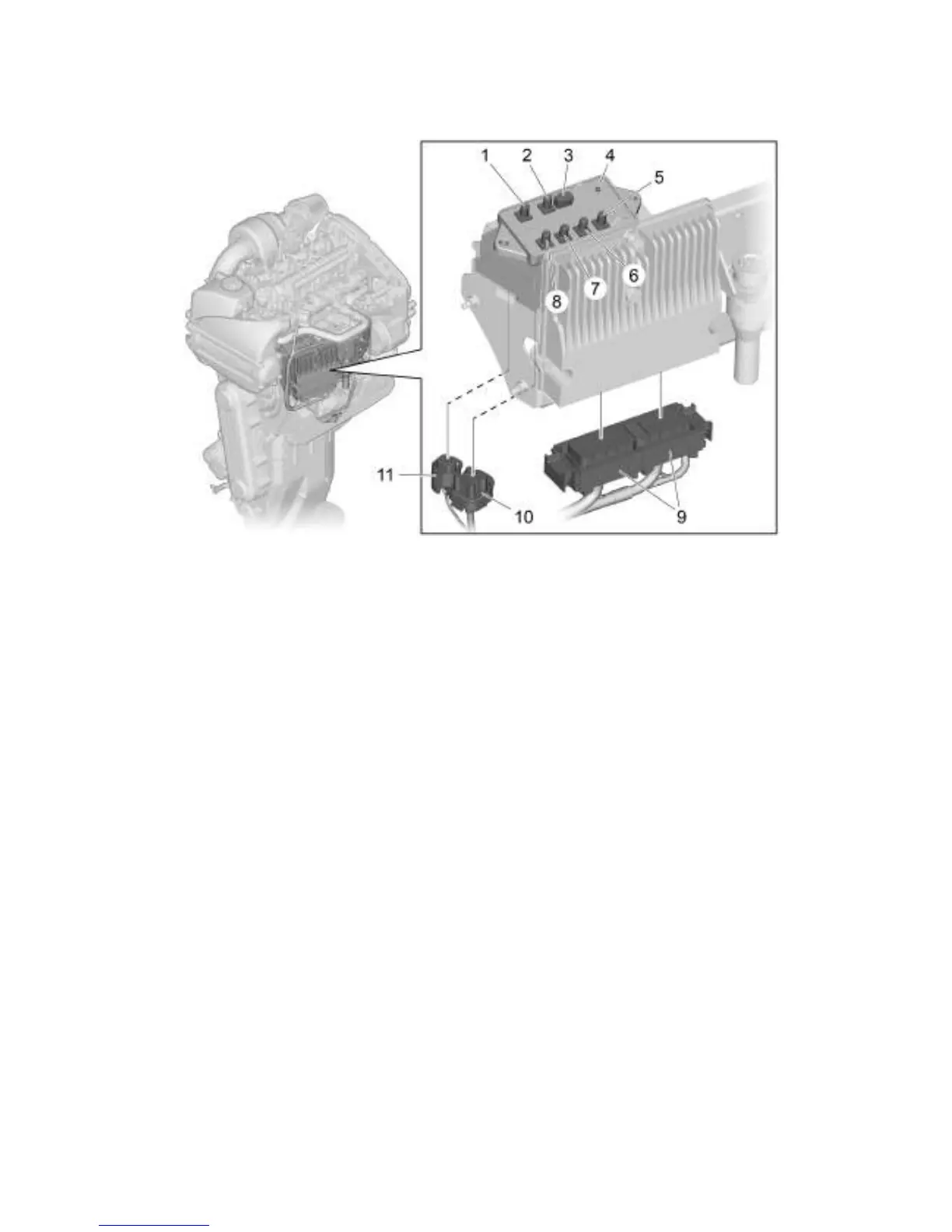

ENGINE CONTROL UNIT
1. GND
2. Supply
3. PSU control and feedback
4. PSU OK LED-indicator
5. ECU and helm
6. Glow plug control module
7. PTT up
8. PTT down
9. ECU connectors
10. Glow module, control, feedback, supply
