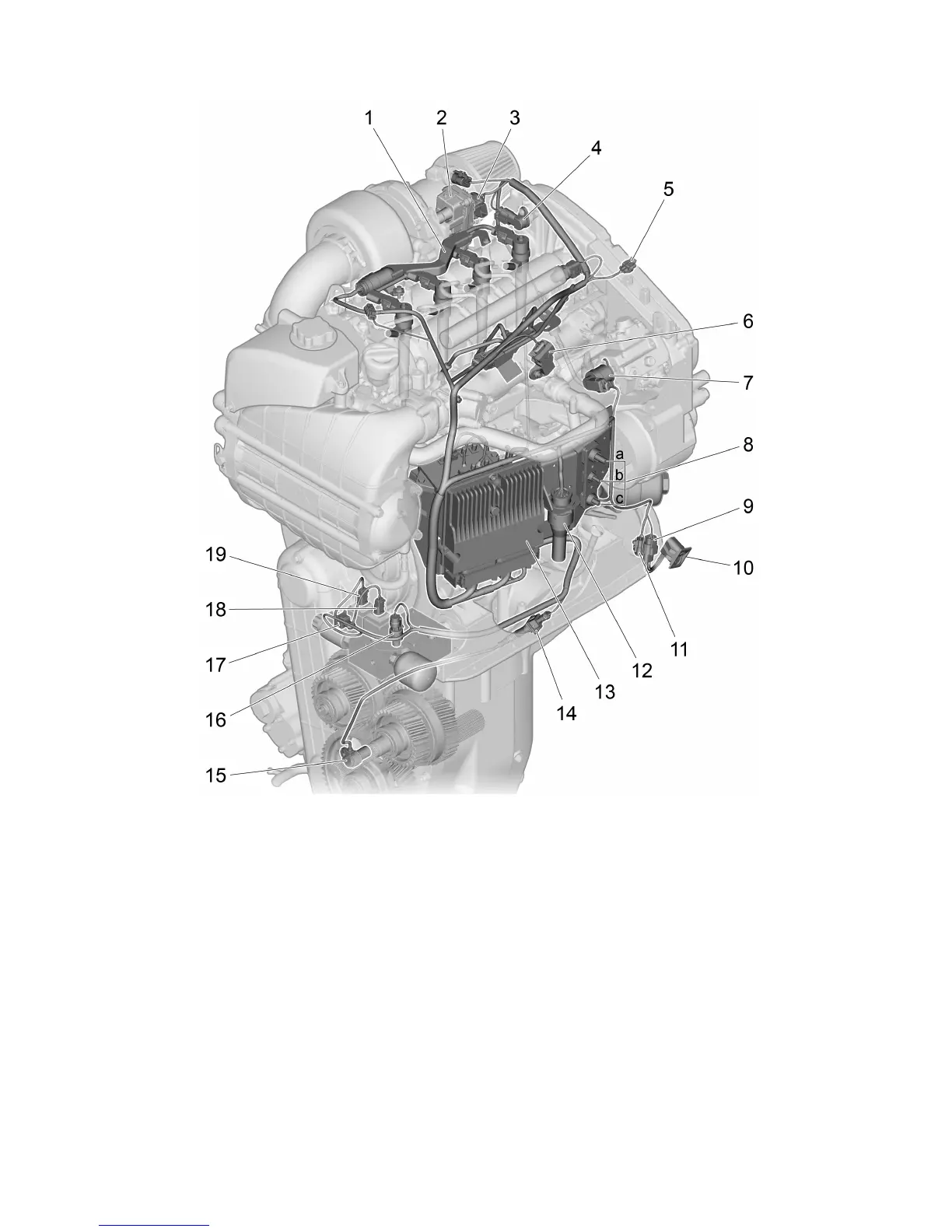

1. Injector harness
2. Actuator
3. Turbo actuator connector
4. Camsha position sensor
5. Fuel supply modul (FSM) connector
6. Temperature and air mass meter
7. Fuel pressure control valve
8. Power cable connector
a) GND
b) ECU & Helm power
c) Engine starter power
9. PTT cowl connector
10. PTT-switch
11. PTT sensor connector
12. Engine connector
13. ECU
14. Gearbox output speed sensor connector
15. Gearbox output speed sensor
16. Gearbox oil pressure sensor
17. Trolling valve
18. Starboard gear coil
19. Port gear coil
