OXE 150/200 HP INSTALLATION MANUAL

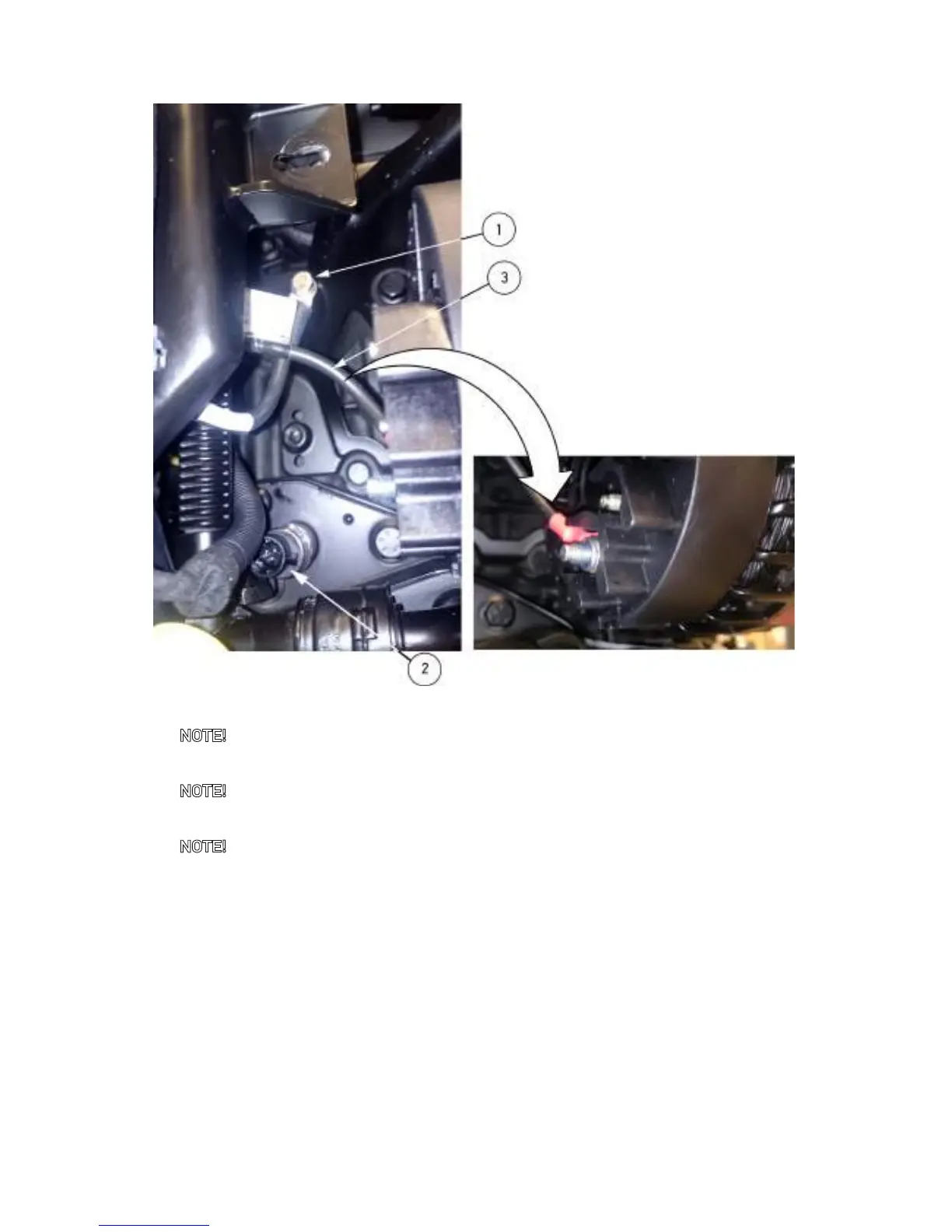

6. Mount engine block GND cable (1) on the engine block.
NOTE! Ensure that the contact surface is free from paint.
7. Connect the engine oil pressure sensor connector (2).
NOTE! Ensure it click’s.
8. Mount the alternator supply (3) on the alternator.
NOTE! Route the cable towards the engine.
