User Manual - Mistral 24 V1.2 05/2015 8/52
28. Tap Sync Button Repeatedly tapping this button establish the chase speed.
29. Full On Button This function bring overall output to full intensity.
30. Black Out Button This button is used to kill all output with exception for that
resulting from Flash and Full On.
31. Fade Time Slider Used to adjust the Fade Time.
32. Speed Slider Used to adjust the chase speed.
33. Audio Level Slider This slider controls the sensitivity of the Audio input.
34. Fog Machine button

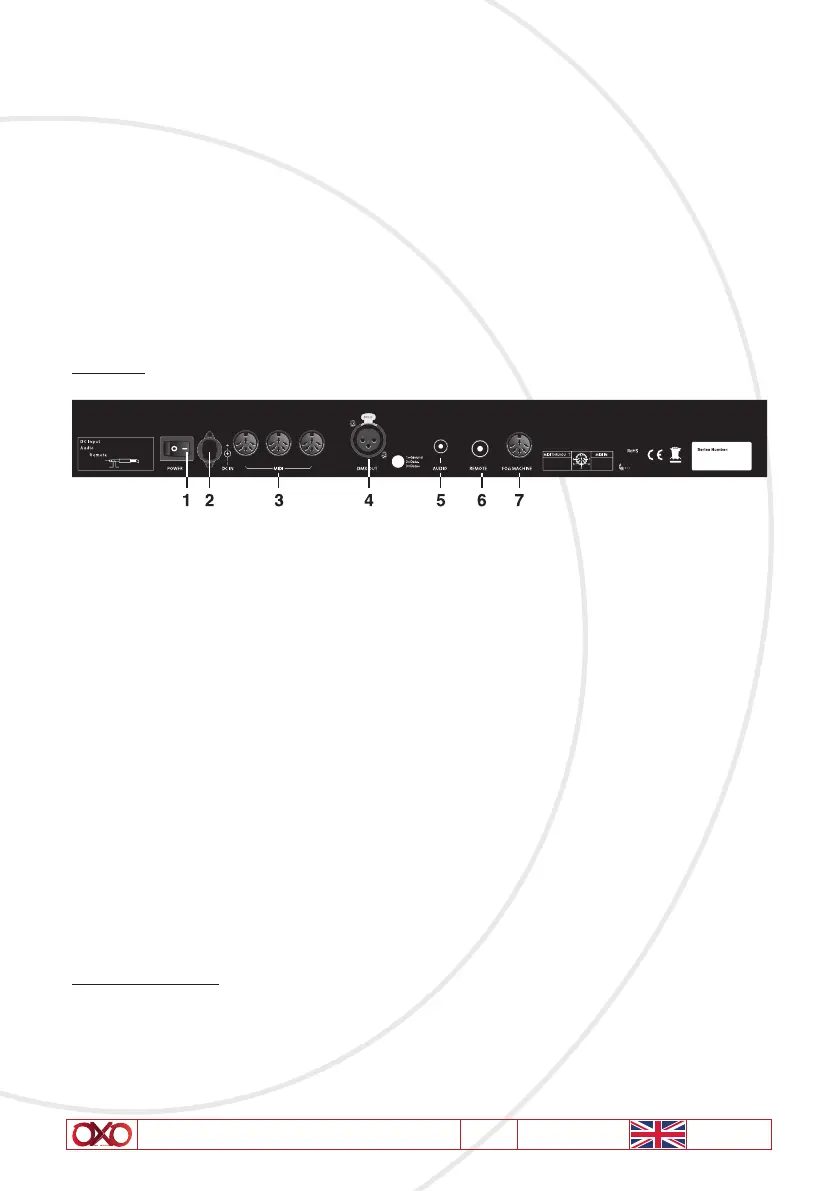

Rear view
1=NC; 2=GND
3=NC; 4=V+
5=Signal
1=NC; 2=NC
3=NC; 4=V+
5=Signal
IN
OUTTHRU
Made in P.R.C.
: 12-20VDC , 500mA Min
: Lin e IN 0.1V- 1Vp-p
: 1/4"stereo jac k
o
35 C
Full on
Black out
GND
1. Power Switch This switch controls turning on or off of the power.
2. DC Input DC 12-20V, 500 mA Min.
3. MIDI Thru/Out/In MIDI ports for connection to a sequencer or MIDI device.
4. DMX Out This connector sends your DMX value to the DMX fixture or
DMX pack.
5. Audio Input This jack accepts a line level audio input signal ranged from
100mV to 1Vpp.
6. Remote Input Black Out and Full On may be controlled by a remote control
using a standard 1/4»stereo jack.
7. Fog Machine Connector
5. Operation guide
