M3x10 Hex cap Screw
( 4pcs two side left and right)
add loctite to Screws in this step
Note: Don't fully tighten yet.
Wait for laterassembly step.
add loctite to Screw in this step
Note: Don't fully tighten yet the
Screws on Main Shaft Bearing Block
and Boom Clamp.
Wait for later assembly
step.
Serial Number
2 x M2.5x6
Hex Cap Screw
M3x8 Hex Cap Screw
( 6pcs )
3x8x1 Washer
( 6pcs )

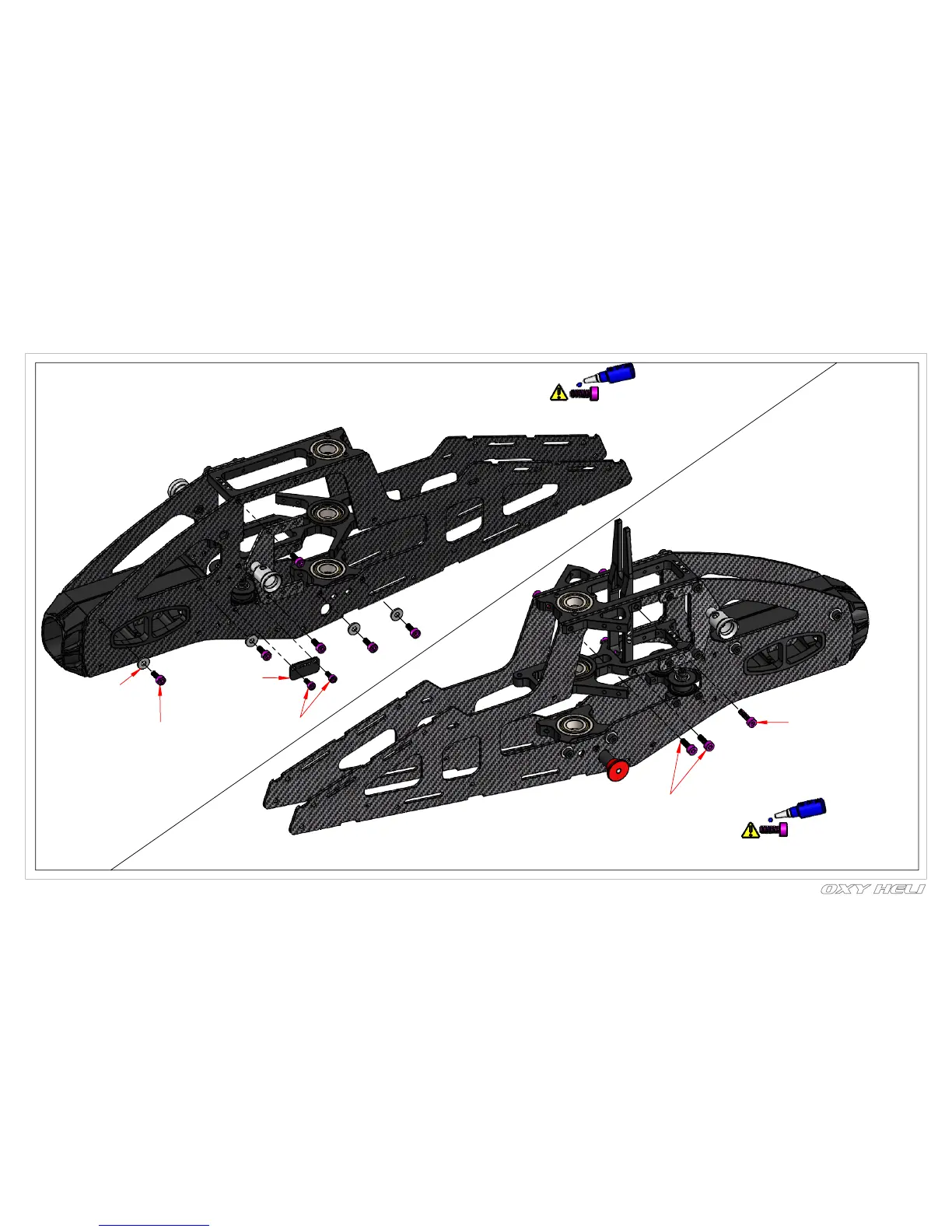

Chapter 7: Main Frame Assembly
M3x14 Hex cap Screw
( 4pcs two side left and right)
page 23
