Oxy Heli 5 - Chapter 12 - Main Rotor Assembly

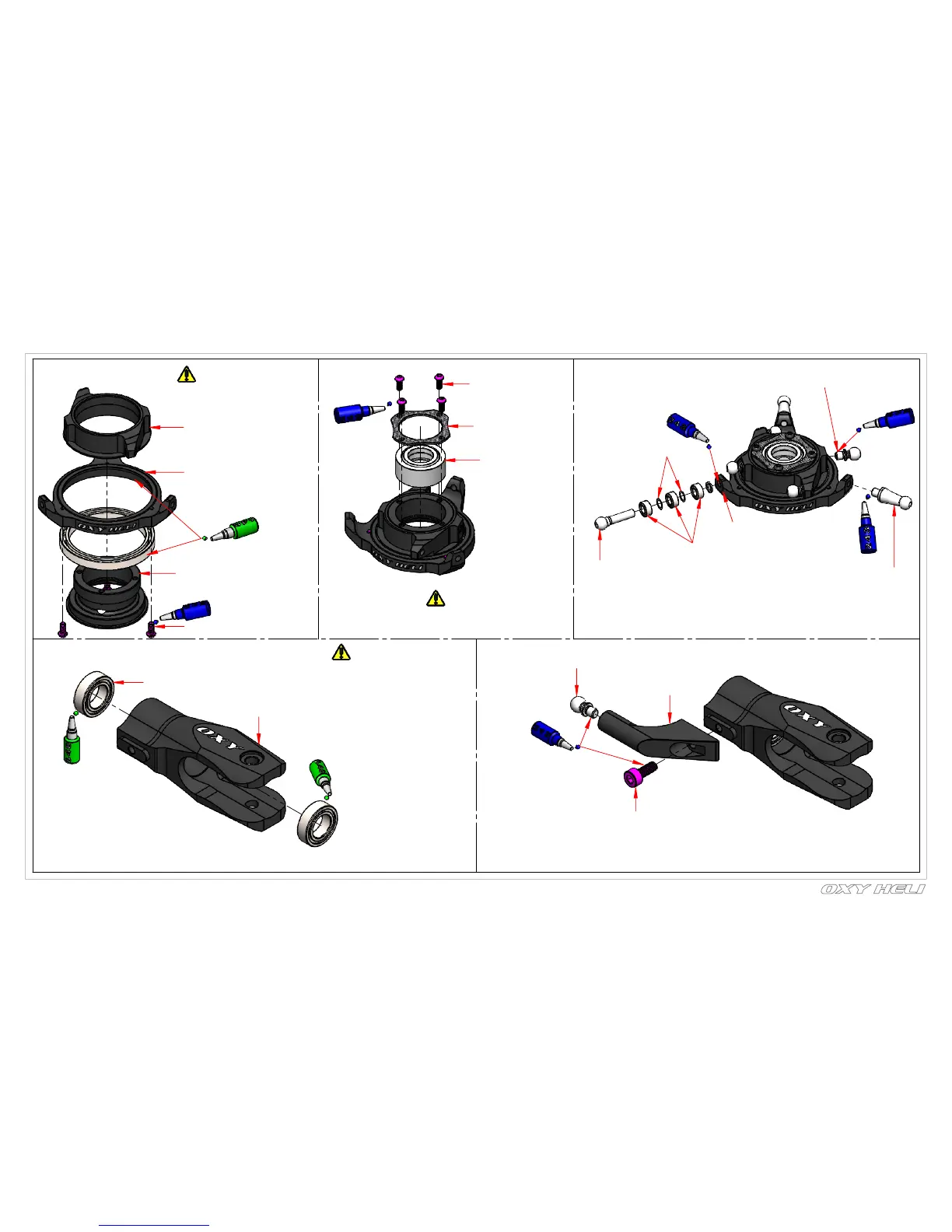

Swash Plate Assembly
( Box3/bag 24 )
Important Note:
this part, for tuning reasions,
comes factory pre assembled,
it's ready to use.
loctite 243
3 x M2x5 Button Screw
Upper Swash Plate Screw
Lower Swash Plate
Upper Swash Plate Nut
4 x M2x5 Button Screw
loctite 243
SW CF Cover
Center Ball
Lower Swash Plate Ball
loctite 243
Anti Rotation Ball
Inner Linkage Ball
loctite 243
loctite 243
3x6x2.5 Radial Bearing
3x4x0.1 Shim
3x4.5x0.5 Spacer
2 x 8x14x4 Radial Bearing
loctite 648
loctite 648
loctite 648
loctite 243
Main Grip
Main Grip Arm
SW Inner Linkage Ball
M3x8 Hex Cap Screw
Important Note:
this part, for tuning reasions,
comes factory pre assembled,
it's ready to use.
page 32
Main Rotor Assembly
( Box3/bag 25 )
Important Note:
this part, for tuning reasions,
comes factory pre assembled,
it's ready to use.
Chapter 12: Main Rotor Assembly
