A
ID
8
ID
8.2
64.75
Follower Arm
2 x 2.5x6x2.6
Flange Bearing
2.5x4.5x4.5 Busing
loctite 648
M2.5x18 Hex Cap Screw
2.6x4x0.5 Washer
loctite 243
2.6x4x7 Bushing
2 x 2.5x6x2.6
Flange Bearing
Important Note:
this part, for tuning reasions,
comes factory pre assembled,
it's ready to use.
Important Note:
This part comes pre assembled WITHOUT
thread lock. Follow the instruction for final
assembly.
Center Hub
Oring 7.5W3.5 70 Shore
M6x10 Button Screw
8x12x1.5 Washer
11x14x1 Spacer
add grease
8x12x0.1 Shim
Fine Adjust Shims:
In order to give fine adjustment options,
the extra Hardware Bag contains extra
Shims 8x12x0.1. Start assembly
with one (each side)pre installed shim.
If the Main Grips have
sideway play, add shims as required.
Each Grips must have the same number
of shims. If you add one shim on the left
side, you need to also add one shim on
the right side
Turnbuckle Pitch Rod
2 x PL Linkage Ball
Right Hand Thread Position
( Short Shoulder )
Left Hand Thread position
( long shoulder )
Anti Rotation Arm Assembly
( Box3/bag 25 )
page 33
Important note:
This part comes pre assembled
WITHOUT thread lock. It MUST
be re-assembled with thread
lock as shown.

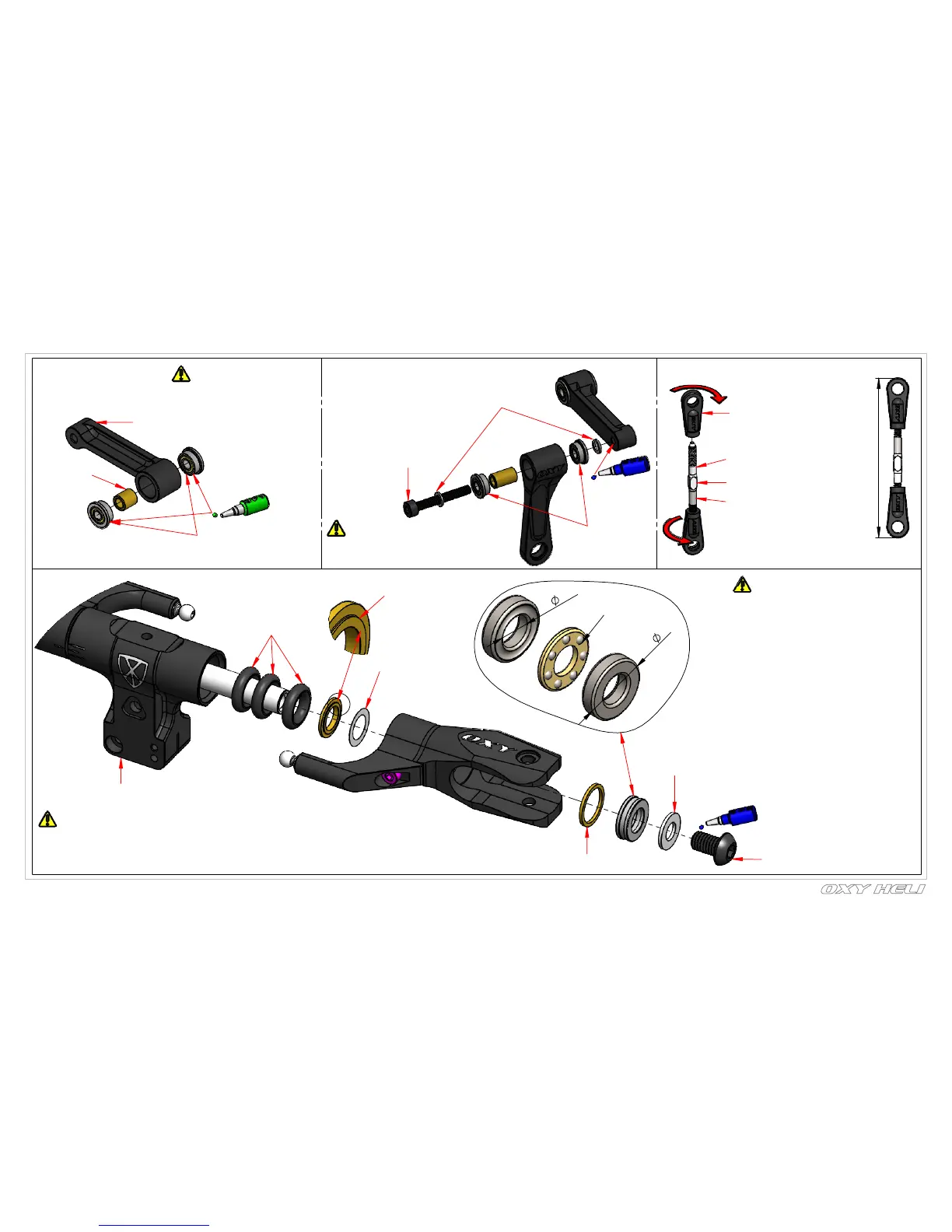

Chapter 11: Main Rotor Assembly
Step face to bearing
To Next Page
