Oxy Heli 5 - Chapter 15: Motor Installation

4 x M3x8/M4x8
Hex cap Screw
27
4.10
3
30
25
6
Motor Mount holes support
Motor Mount
Motor
loctite 243
loctite 243
2 x Set Screw M4x4
Pinion
( 13T - 6mm Shaft Included )
Motor Assembly
( Box3/bag 14 )

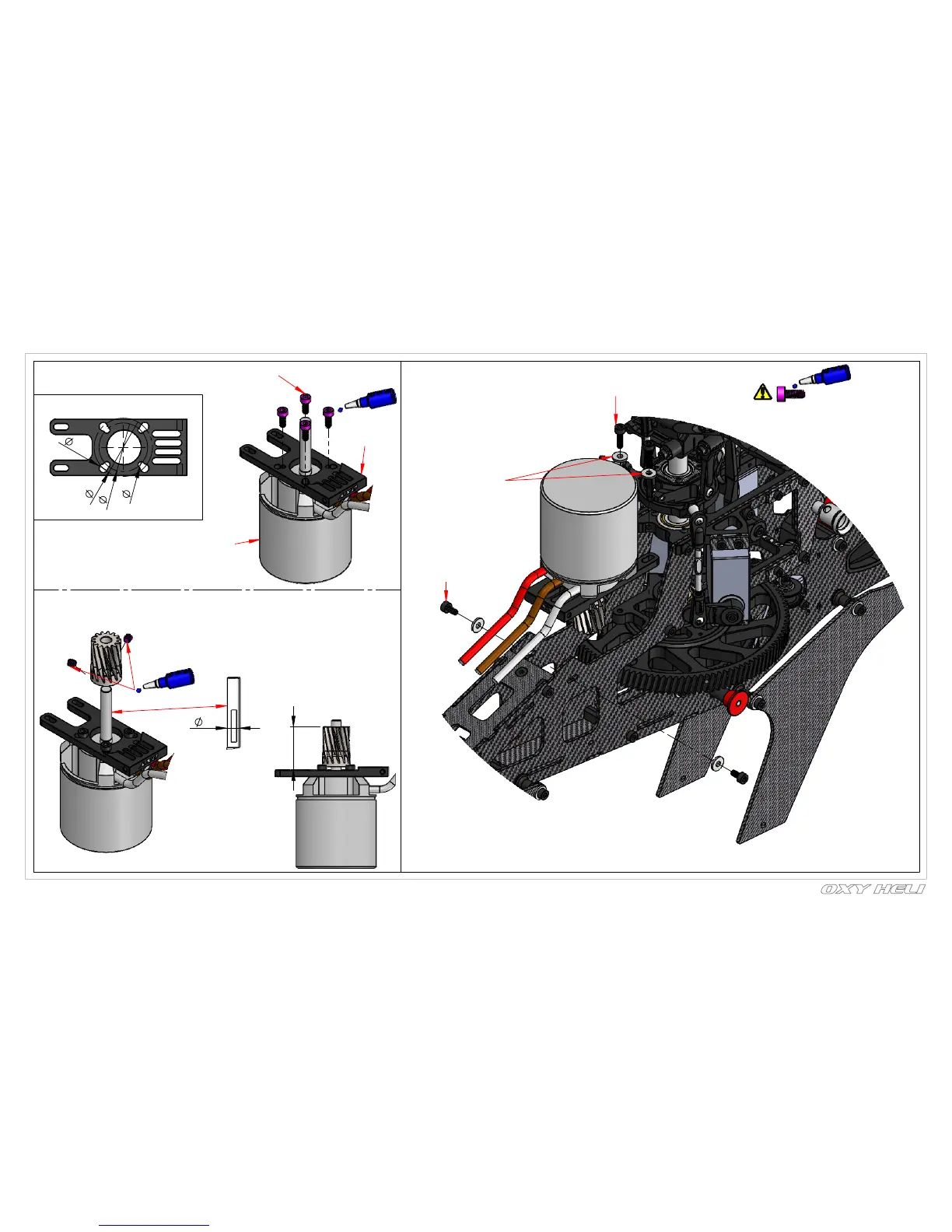

Chapter 15: Motor Installation
M3x10 Hex Cap Screw
( 2 pcs )
3x8x1 Washer
( 4 pcs )
M3x8 Hex Cap Screw
( 2 pcs )
add loctite to all
Screw in this step
page 42
