Oxy Heli 5 - Page 25

add loctite 243 to All Screws
in this step
Note: Don't fully tighten yet.
until next step.

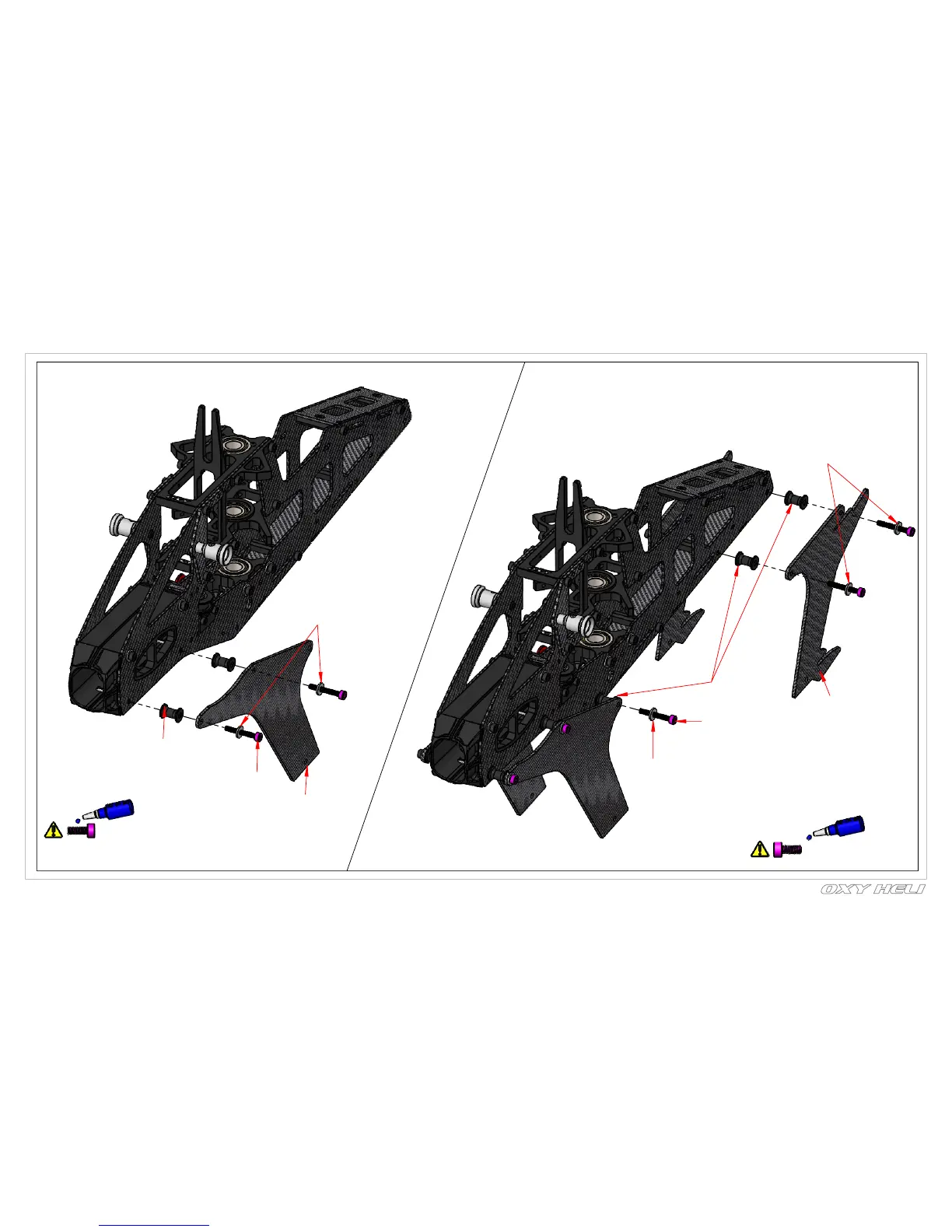

M3x22 Hex Cap Screw
( 4pcs Left and right)
Frame Spacer Bushing
( 4pcs )
Rear Leng Plate
( Box2/bag 22 )
Chapter 7: Main Frame Assembly
page 25
M3x22 Hex Cap Screw
( 6pcs Left and right)
Frame Spacer Bushing
( 6pcs )
Front Leng Plate
( Box2/bag 22 )
Add loctite 243 to All Screws
in this step.
3x8x1 Washer
3x8x1 Washer
3x8x1 Washer
