3.0 Access Requirements
Top of Unit
The National Electrical Code (NEC) stipulates that there must be a minimum of 36 inches of clearance from an
electrical connection. The installing contractor must ensure there is at least 36 inches of clearance perpendicular to
the top of the electrical box.
Front of Unit
In order to open the doors of the unit, the installing contractor must leave 48 inches perpendicular to the doors.
If there is no intention to open the doors fully, they can be removed for servicing, by removing the hinge pins and
lifting o the doors.
4.0 Lifting Requirements
Horizontally Installed Units
Once the mounting angles have been installed, the unit can be lifted by the
angles.
Vertically Installed Units
A vertically installed unit that is delivered with base rails, can be lifted from
the base rail with the use of a spreader bar to prevent damage to the unit.

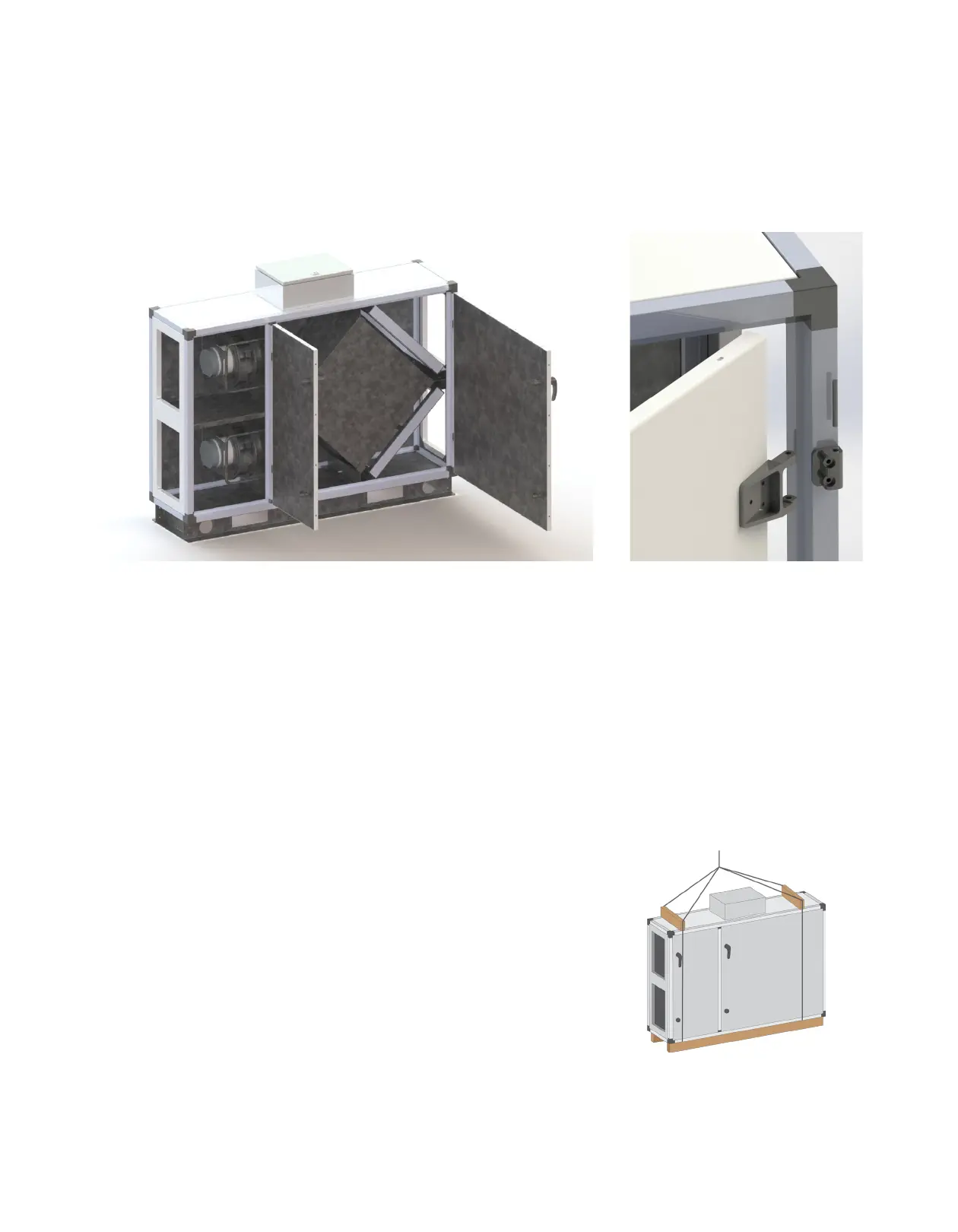

Door with removed hinge pinUnit with doors open
Unit with Spreader Bars
