Installation Manual Nova Series
6
2.4 Horizontal Installation
2.4.1 Front Doors
The hanging brackets are supplied loose with the
necessary hardware to install them. They are not
shipped assembled due to the variability of installation
access on job sites.

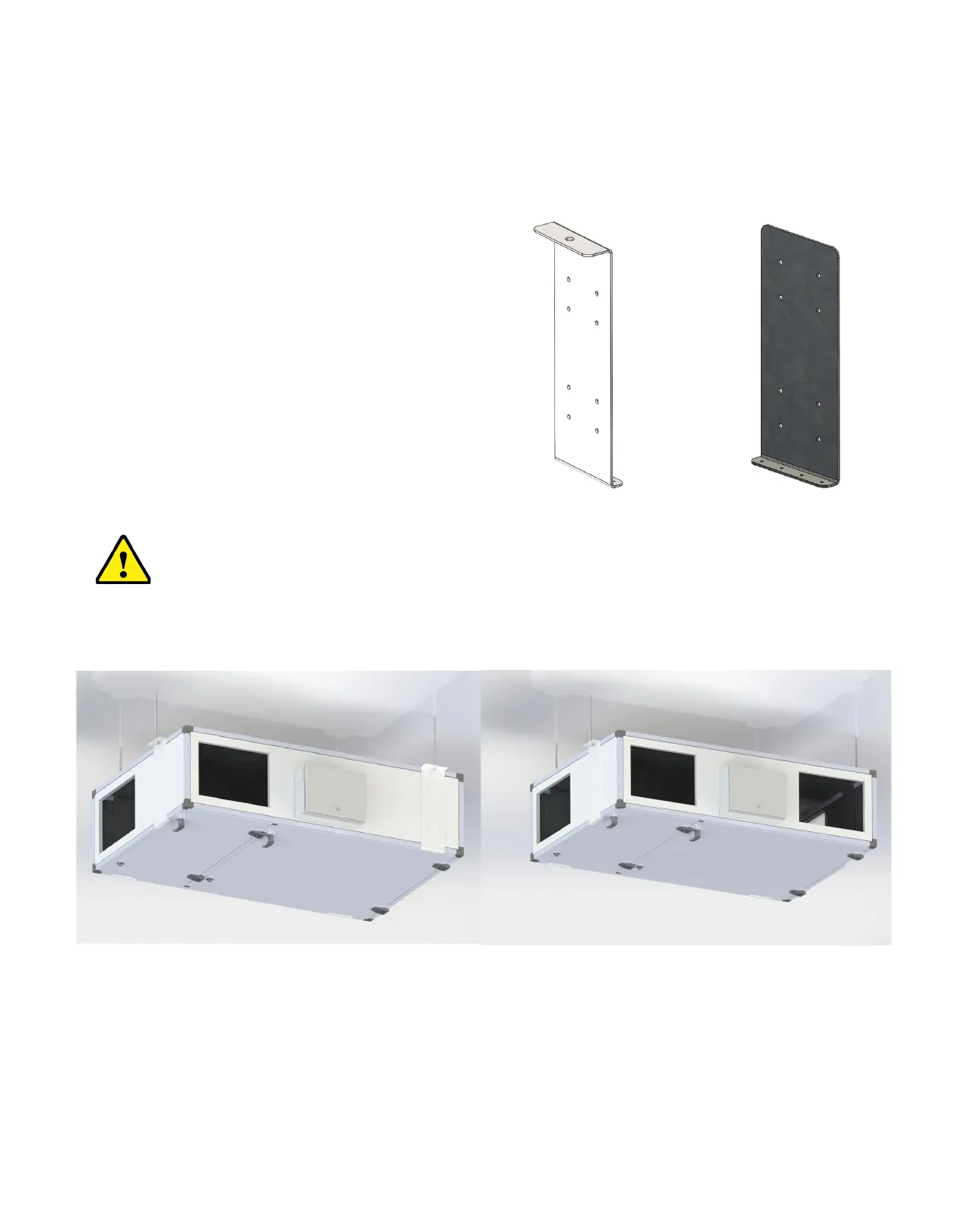

Each hanging bracket is composed of two pieces: an
inner component and an outer component. The units
are designed to have four sets of brackets to support
the unit.
Note Depending on the ducted opening location
selected during the design phase, the location of
the brackets will vary. Please consult your submittal
drawings for specific locations.
Outer
Bracket
Inner
Bracket
Unit with 1A Opening Unit with 1A and 3A Openings
Warning
The unit must be installed with both the inner and outer bracket. Each unit must also have all four brackets installed
to meet these guidelines.
