Installation Manual Nova Series
7

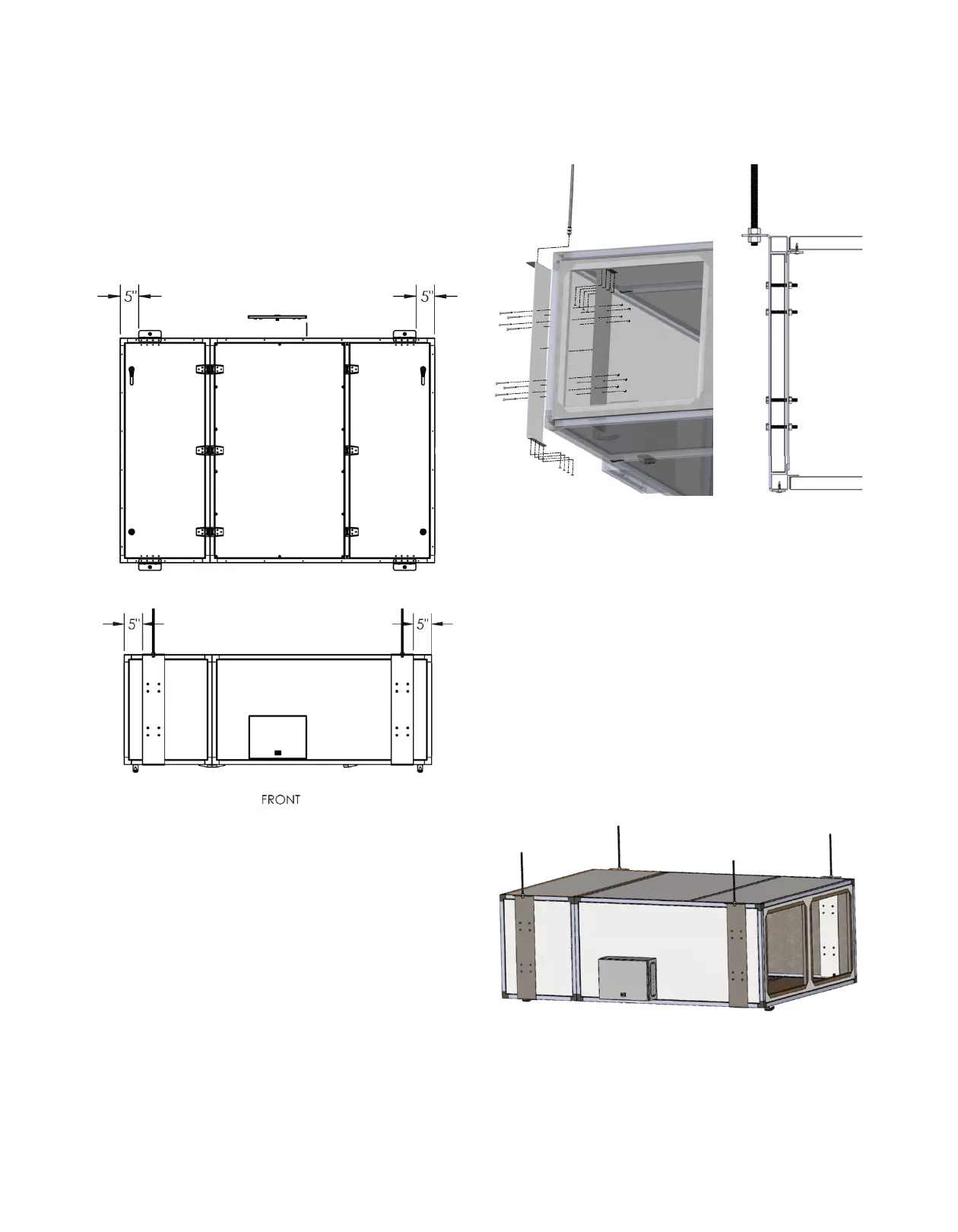

Assembly of Hanging Brackets
1. Locate the position of the brackets on the outside
of the unit.
2. Mark the 8 hole locations and drill to allow for
the ¼" bolt. 32 - ¼" bolts, 32 - ¼" lock nut, 32 - ¼"
washers and 64 - ¼" washers have been provided
with the unit.
3. Assemble the hanging bracket by aligning the 8
holes of the outer bracket through the unit and
with the inner bracket. Note: the inner component
should be oriented so that its flange is pointing to
the ceiling, and the outer bracket has the single
hole pointing to the ceiling.
4. Install the 8 bolts. Caution - Do not over tighten
and crush the panel.
5. Install 4 tek-screws in the flange portion of the
inner bracket and secure it to the top casing of the
unit.
6. Install 4 tek-screws in the lower flange of the outer
bracket to secure it to the bottom frame of the unit.
7. Repeat steps 1 through 6 for the remainder of the
brackets.
8. The hole in the outer brackets are designed for a
½" threaded rod to hang the units by.
Bracket Alignment
