Oxygen 8 SERENA - Components

Installation Manual Serena Series
No. Description Part No. Qty.
1 ERV - Lid, Pan Assembly 9391 1
2 Polypropylene Collar 6" Dia. PBD6C 2
3 Enthalpy Core 9394 N/A
4 Filter 10½" x 12" (MERV4) 9395 2
5 Temperature Sensor 9326 1
6 6" Ø Polypropylene Backdraft
Damper
PBD6 2
7 Fan - Supply/Exhaust 013070 ECM 1
8 Adjustable Door Latch 9319 1
9 Optional Drain Spout Assembly 9320 2
10 Core Locking Bracket 9321 1
11 Nut 014016 1
No. Description Part No. Qty.
12 Safety Switch 9322 1
13 Main Control Board (ECM) 9356 ECM 1
14 Main Control Board Bracket 9355 2
15 Door Hinges 9328 1 Set
12 Safety Switch 9322 1
13 Main Control Board (ECM) 9356 ECM 1
14 Main Control Board Bracket 9355 2
15 Door Hinges 9328 1 Set
16 Mounting Brackets -11136 4
17 "T" Connector 9330 1

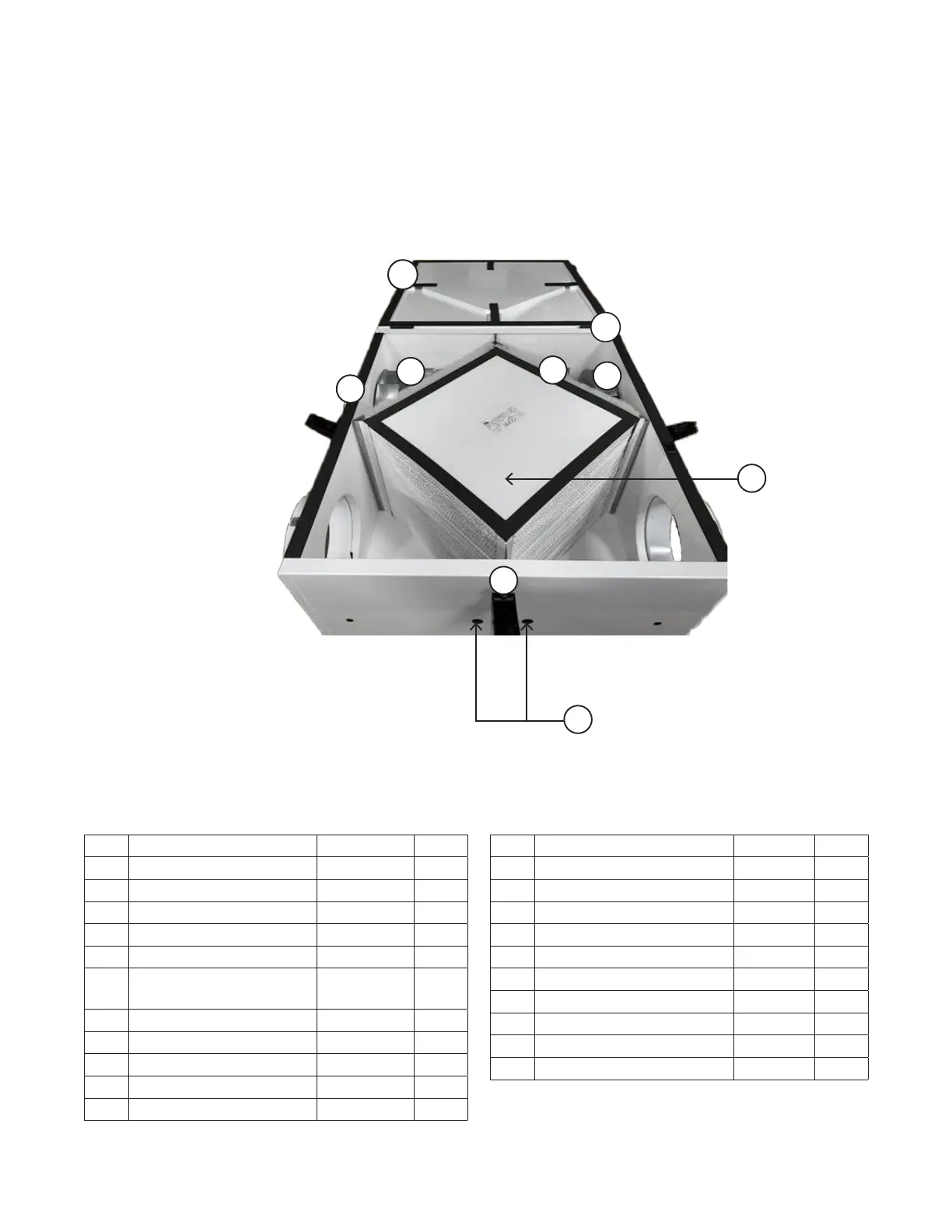

2.0 Components
1
2
3
15
4
6
7
8
9
Note Units come standard with a plug-in style connection, but
may be ordered with direct connections.
