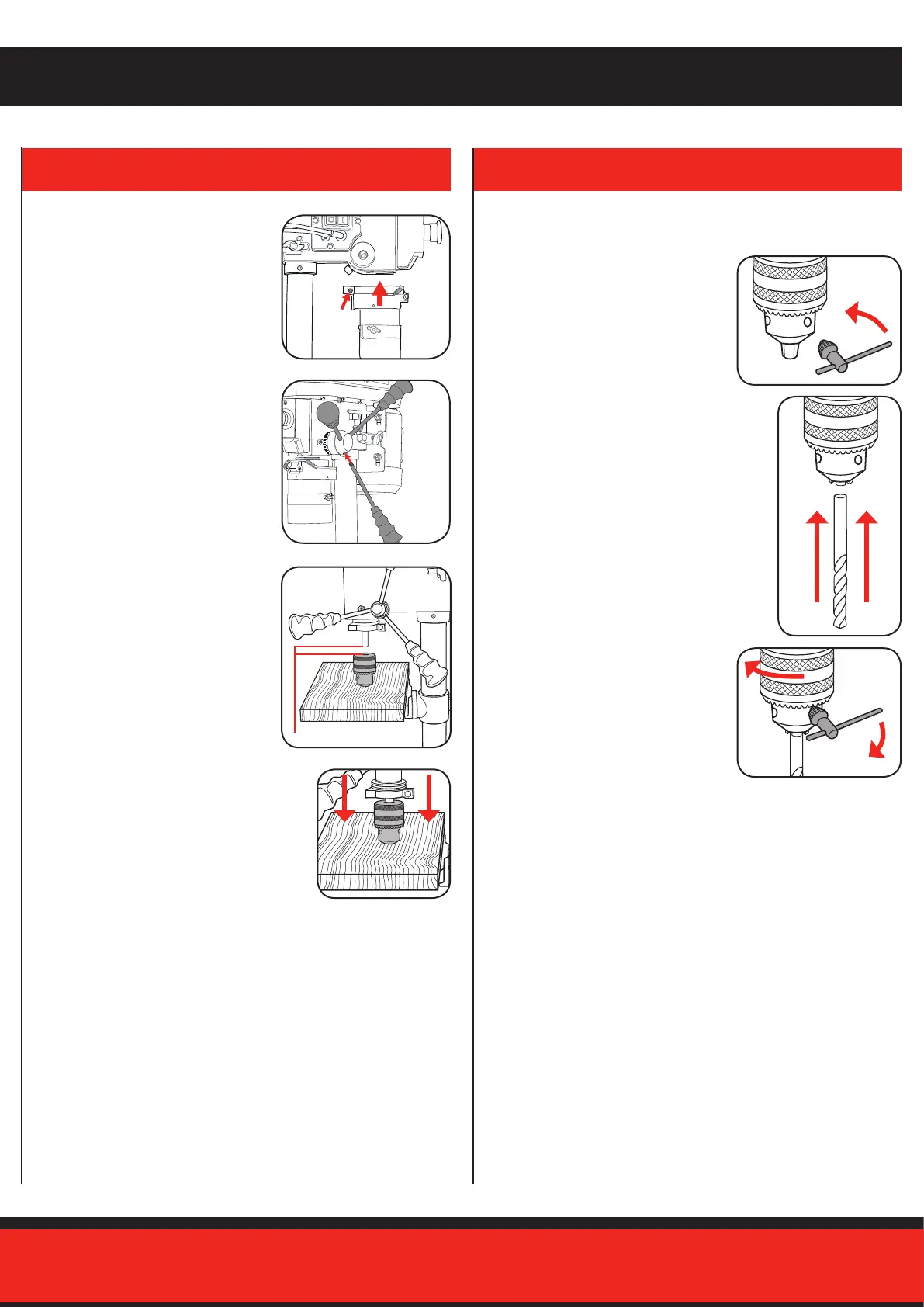

6. To t the eye shield, rst loosen the
phillips head screw on the shield
and then slide over the drill spindle.
Tighten the securing screw to lock
in position.
7. To t the feed wheel handles,
screw them into the feed
wheel hub.
8. To t the keyed chuck, rst place
a piece of timber on the table and
position the keyed chuck with the
jaws retracted under the drive
shaft. Raise the table toward
the drive shaft until the chuck is
approximately 25mm from the
drive shaft.
9. To secure the keyed chuck to the drive
shaft gently lower the drive shaft using
the feed wheel handles until the drive
shaft is pushed into the rear of the keyed
chuck. A gentle tap on the timber is
required to secure the keyed chuck onto
the tapered drive shaft.
Installing and removing drill bits
1. Using the chuck key, loosen the
jaws of the chuck by rotating in an
anti-clockwise direction.
2. Insert the drill bit fully into the
keyed chuck.
3. Whilst holding the drill bit in one
hand, rotate the top collar of
the keyed chuck in a clockwise
direction.
Ensure that you tighten all 3 holes
in the keyed chuck using the chuck
key to securely tighten the jaws and
hold the drill bit in position.
Approx. 25mm
