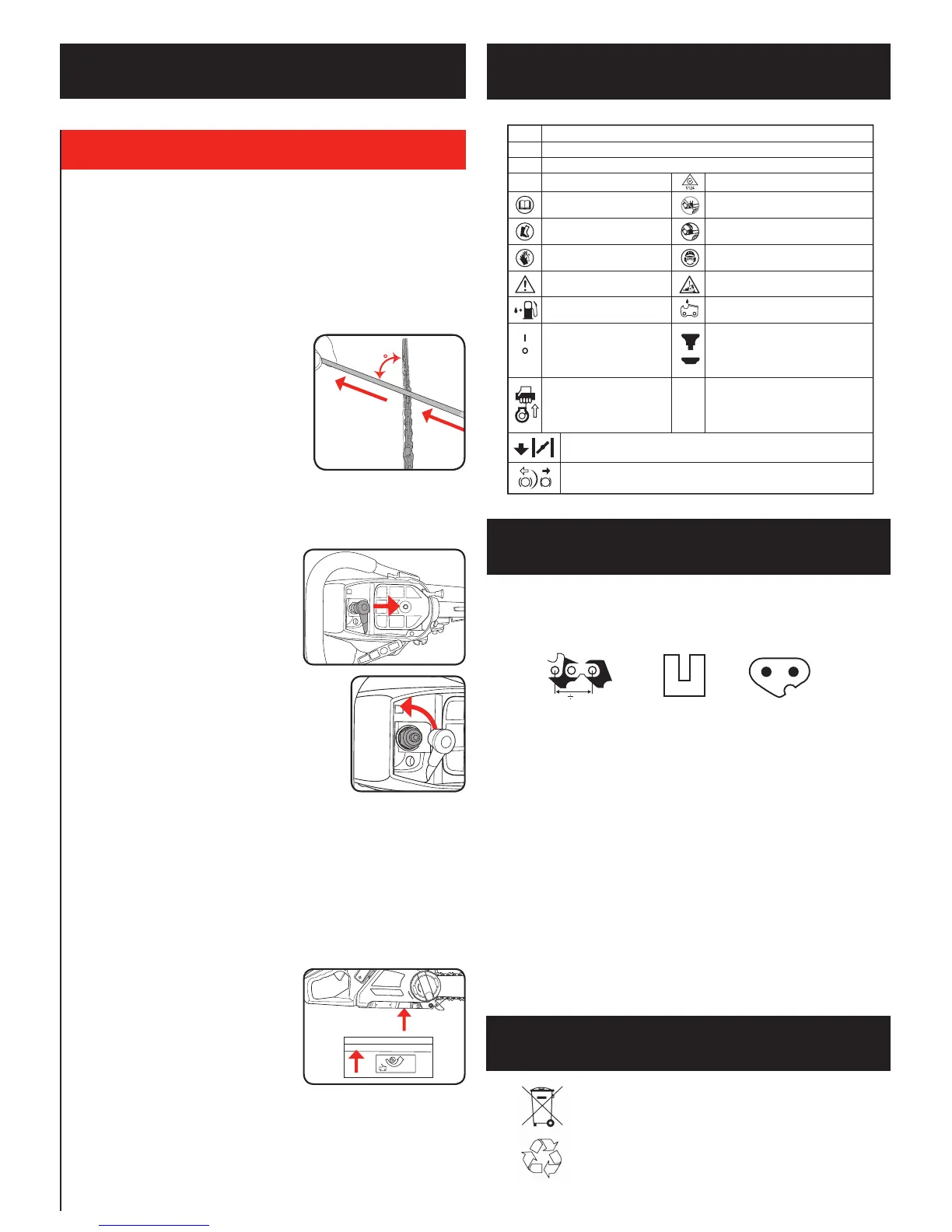

Chain Replacement:
The chain can be purchased through Ozito spare parts or from your
local Bunnings Warehouse. The correct chain can be purchased by
matching the pitch, gauge and number of links as shown below:
SPARE PARTS
DESCRIPTION OF SYMBOLS
cc Cubic Centimeters (the standard measure of displacement in Europe and Asia)
no No load speed
/min Revolutions or reciprocation per minute
dB Decibel level
Read the manual prior to use
Wear safety boots
Wear safety gloves
Warning Be aware of moving branches
Pull recoil starter to start motor
Do not use chainsaw when
only holding with one hand
Use both hands when using chainsaw
Use eye, ear, head and breathing
protection when operating the chainsaw
Fuel inlet
On/Off
(Position: next to throttle trigger)
Setting the On/Off switch to Off,
stops the engine immediately
Choke control
(Position: above priming bulb)
Chain brake released (hollow arrow) and activated (solid arrow)
(Position: right side of machine, on chain drive cover)
CHOKE Start position (when engine is cold)
RUN Run position
Chain oil inlet
H High run adjustment screw
L Low run adjustment screw
T Idel adjustment screw (Position: left side of
machine close to pull start handle)
Regulator compliance mark
Chain Sharpening
Sharpen the chain using protective gloves and the round le supplied.
Sharpen the chain regularly to maintain optimum performance of the
saw. Signs of a dull chain are:
• The sawdust becomes powder-like
• Extra force is required to execute a cut
• The cut does not track in a straight line
• Increased vibration
Sharpen each cutter using a chain le.
Always use outward strokes and maintain
a 30° angle between the chain and le.
After sharpening, the cutters must all
have the same width and length.
After every 3–4 uses get an authorised
repair centre to professionally sharpen
your chain. They have the special tools
necessary to ensure the correct cutting
angles and depths.
Replacing the spark plug
When the chainsaw will not start and everything has been checked,
it is likely the spark plug will need replacing. The spark plug is not
covered under warranty.
To replace the spark plug:
1. Loosen the lter cover knob and
remove the lter cover.
2. Pull the spark plug lead off the spark
plug end.
3. Loosen (anti-clockwise) the spark
plug using the larger socket side of the socket
wrench provided.
4. Remove the spark plug and replace with a new
one, as specied.
Spark plug types:
LD L8RTF, NGK BPMR7A, Champion RCJ7Y.
5. Secure the spark plug in position by tightening (clockwise) the
spark plug using the socket wrench provided.
6. Fix the spark plug lead back to the end of the spark plug ensuring
it clicks into place.
7. Replace the lter cover and secure in place with the ller cover
knob.
Adjusting the Automatic Oil Feed System
It is possible to adjust the ow rate of
the chain bar oil if it is not supplying a
sufcient quantity of oil to the chain.
1. Turn the saw onto its side.
2. Using the screwdriver provided,
adjust the oil feed by rotating
clockwise to decrease the ow of oil,
or rotating anti-clockwise to increase
the ow of oil.
3. Test the operation of the automatic oil feed system to ensure
sufcient oil is being supplied to the chain. (Refer to the
“Operation” section overleaf for instructions on how to test
automatic oil feed system.)
2
9.53mm(3/8) 1.3mm(.050”) 57 Links
