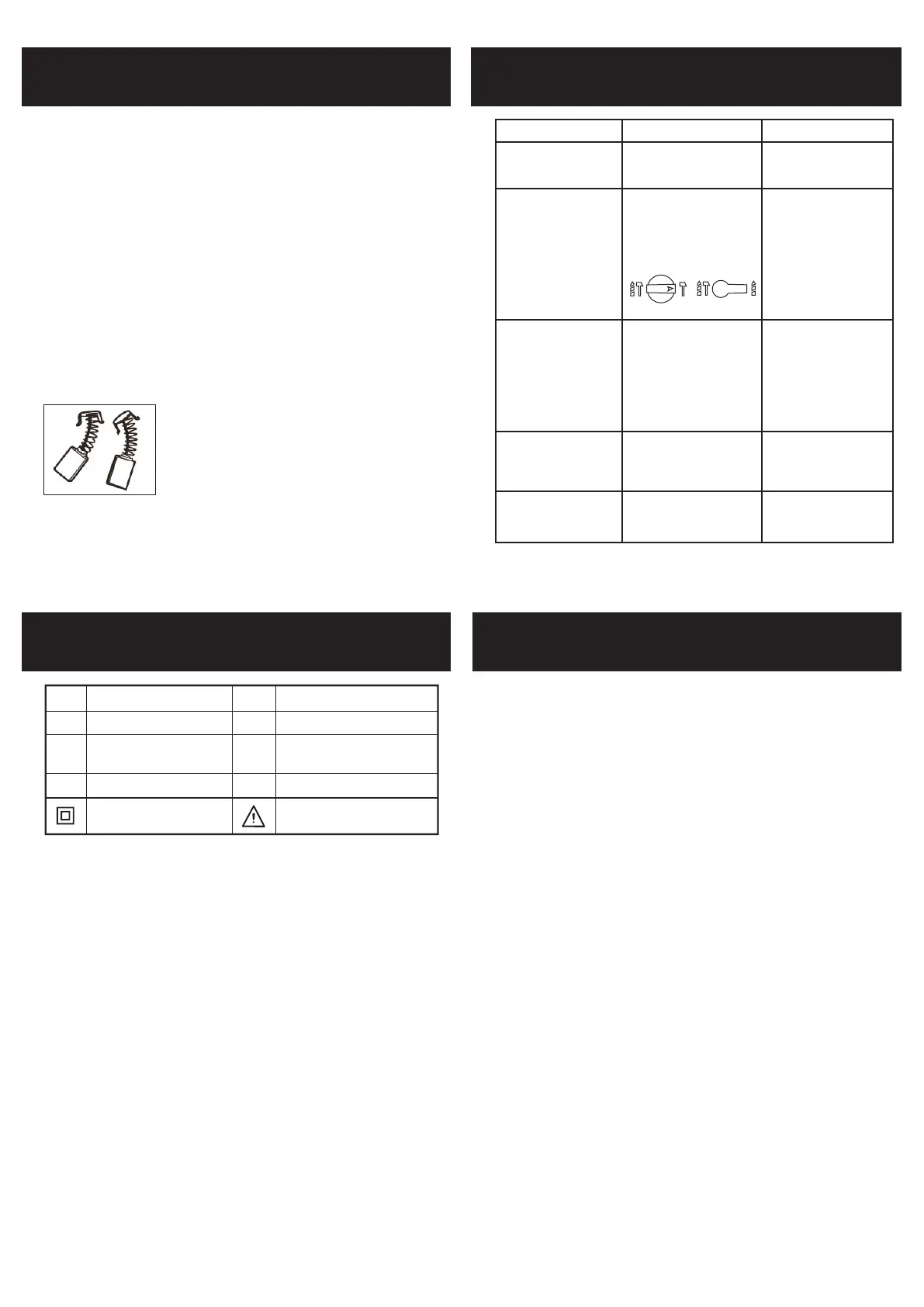

MAINTENANCE
DESCRIPTION OF SYMBOLS
TROUBLE SHOOTING
V Hz
~ W
/bpm
ø
/min
n
o
Volts
Alternating current
Revolutions or
reciprocation per minute
Impact rate
Double insulated Warning
Hertz
Watts
No load speed
Diameter
• Keep the ventilation vents of the drill clean at all times.
• After each use, blow air through the drill housing to ensure it is free from all
dust particles which may build up. Build up of dust particles may cause the
drill to overheat and fail.
• If the enclosure of the drill requires cleaning, do not use solvents but a moist
soft cloth only. Never let any liquid get inside the drill; never immerse any part
of the drill into a liquid.
Gear Box Grease Replenishment
The grease in the gearbox will require replenishment after approximately 50
hours accumulative use. After this time, add approximately 50 grams (approx
2 – 3 teaspoons) of the grease, into the gearbox. First remove the grease
cap from the drill by using the pin spanner. Once removed, add the grease
through this hole. Ensure the grease cap is secured back into position prior to
operation. Grease (normal ball bearing grease) can be purchased through your
local Bunnings Warehouse.
Carbon Brushes
When the carbon brushes wear out, the drill will spark and/or stop. Discontinue
use as soon as this happens. They should be replaced prior to recommencing
use of the drill. Carbon brushes are a wearing
component of the drill therefore not covered under
warranty. Continuing to use the drill when carbon
brushes need to be replaced may cause permanent
damage to the drill. Carbon brushes will wear out
after many uses but when the carbon brushes
need to be replaced, take the drill to an electrician
or a power tool repairer for a quick and low cost
replacement. Always replace both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the drill by an unauthorised person or by mishandling of the
drill.
SPARE PARTS
Problem Cause Remedy
Rotary Hammer
Drill is not working
No power supplied Make sure all plugs are
connected and power
outlet is in working order
Mode Selectors in wrong
position.
Chisel Function will not
engage is mode selectors
are as shown below
Please refer to
‘Operating The Hammer
Drill’ section in the
manual.
Hammer Function
Not Engaging
Excess grease has been
packed
Insert SDS-Plus
accessory and then
set both the modes to
hammer function. Turn
the drill on, rmly tap
the accessory bit up and
down onto a scrap piece
of material to activate.
Motor brushes binding in
brush holders.
Clean brush holders.
Remove carbon dust by
using compressed air to
blow out brush dust
Excessive
sparking visible
through air vents
Carbon brushes have
worn out
Replace carbon brushes
as per maintenance
section.
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: enquires@ozito-diy.co.uk
