ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
required
drilling
depth

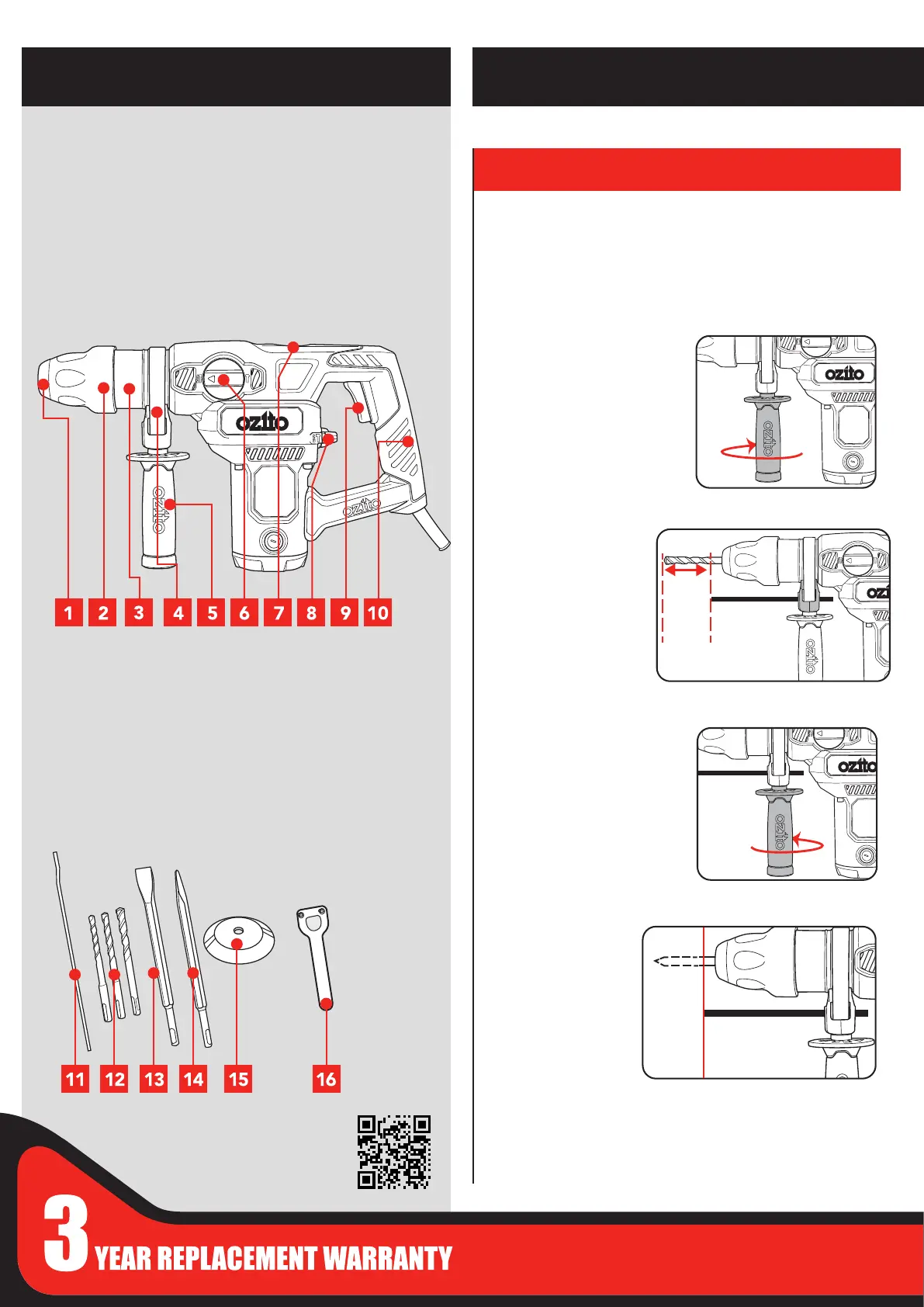

KNOW YOUR PRODUCT
1. USING THE DEPTH ROD
The depth rod allows you to drill to a predetermined depth.
1. Loosen the side handle
by turning as shown.
2. Drill the hole until
the end of the
depth rod touches
the workpiece.
3. To secure the
depth rod in
position, tighten
the side handle by
turning as shown.
2. Adjust the depth
rod so the drill bit
extends beyond the
end of the depth
rod to the required
drilling depth.
1 SDS-Plus Accessory Holder
2 Accessory Locking Sleeve
3 Magnesium Gear Case
4 Depth Rod Locking Hole
5 Side Handle
6 Side Mode Selector
7 Grease Cap
8 Rear Mode Selector
9 On/Off Switch
10 Soft Grip Rear Handle
ROTARY HAMMER DRILL
11 Depth Rod
12 3 x SDS-Plus 150mm Drill
Bits
13 1 x SDS-Plus Flat Chisel
14 x 250mm
14 1 x SDS-Plus Point Chisel
14 x 250mm
15 Dust Cover
16 Pin Spanner
ACCESSORIES
SETUP & PREPARATION
Ensure the tool is disconnected from the power supply before
performing any of the following operations.
