Ozito TBS-2000 - 6. ADJUSTING THE RIVING KNIFE; Setting the Riving Knife

OPERATION

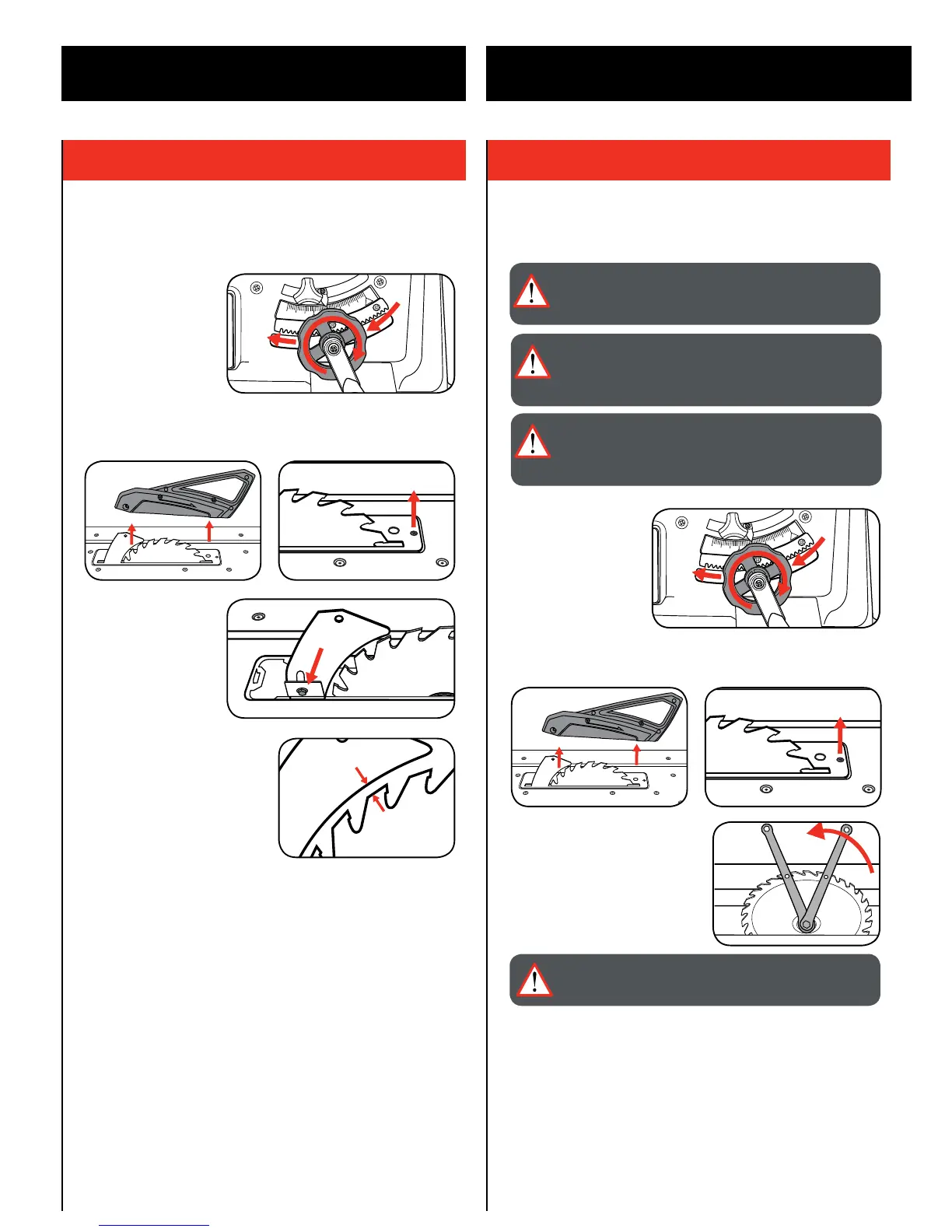

6. ADJUSTING THE RIVING KNIFE 7. BLADE REPLACEMENT
Setting the Riving Knife
2 Remove the blade guard by
removing the bolt.
5 Raise the riving knife until the
clearance between the blade
and the riving knife is 3-5mm.
3-5mm
1 Set the blade to the
Max cutting depth
by rotating the blade
height adjustment
handle and setting
the bevel adjustment
to 0°.
4 Loosenthexing
screw.
6 Retightenthexingscrewandthenretthetableinsertandblade
guard.
22.5°
15°
30°
45°
Note: The riving knife helps to prevent kickback and should be checked
each time the blade is replaced.
IMPORTANT! TURN THE BLADE BOLT IN THE
DIRECTION OF ROTATION OF THE SAW BLADE.
WARNING! ENSURE THE TOOL IS SWITCHED OFF AND
DISCONNECTED FROM THE POWER SUPPLY BEFORE
PERFORMING ANY OF THE FOLLOWING PROCEDURES.
WARNING! USE ONLY SAW BLADES WHERE THE
RIVING KNIFE IS NOT THICKER THAN THE WIDTH OF
THE GROOVE CUT BY THE SAW BLADE AND NOT
THINNER THAN THE BODY OF THE SAW BLADE.
WARNING! ENSURE THAT THE SAW BLADE IS
SUITABLE FOR THE MATERIAL TO BE CUT AND THAT
THE MAXIMUM POSSIBLE SPEED IS NOT LESS THAN
THE MAXIMUM TOOL SPEED.
3 Unscrew the countersunk
head screw and remove the
table insert.
Fitting / Replacing the Blade
Note: This product is designed for 254mm saw blades for timber
cutting only.
MAINTENANCE
1 Set the blade to the
Max cutting depth
by rotating the blade
height adjustment
and setting the bevel
adjustment to 0°.
2 Remove the blade guard by
removing the bolt.
3 Unscrew the countersunk
head screw and remove the
table insert.
4 Undo the blade bolt with the pin
spanner and 12mm spanner on
thebladeouterangetoapply
counter-pressure.Keepngers
and hands away from blade.
Wear leather gloves
5 Takeofftheouterangeandpulltheoldsawbladeofftheinner
angebydroppingthebladeatanangle.
22.5°
15°
30°
45°
