System Features

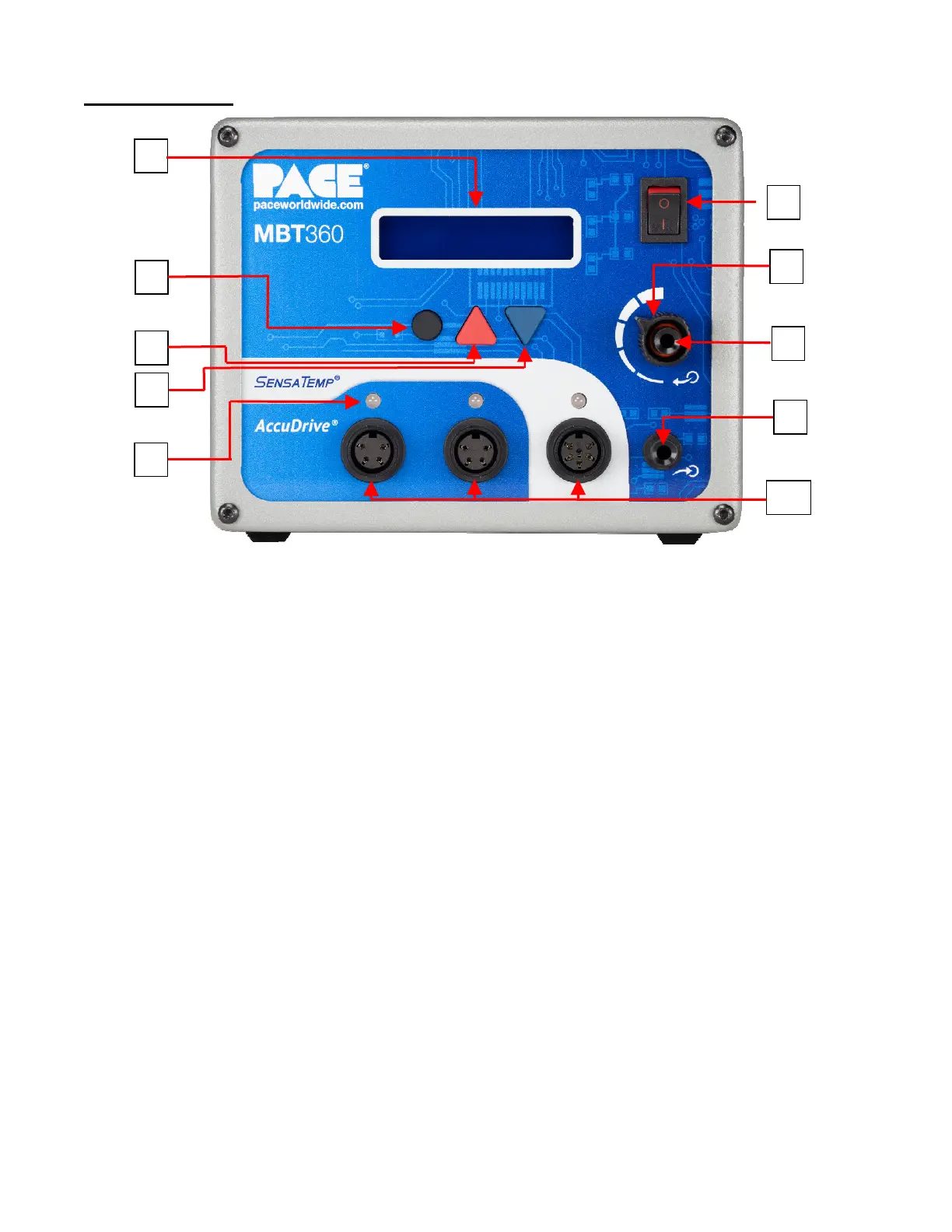

Listed below is a description of the Control Panel features. Use Figures 1 & 2 as a guide.
1. LIQUID CRYSTAL DISPLAY - Provides temperature information for all three channels.
2. PROGRAM KEY – Used to accept settings and to scroll through system channels.
3. SCROLL UP KEY - Increases the Set Tip Temperature or the Tip Temperature Offset in increments of
one, then ten-degree increments when held down. Also used to “wake up” the machine from SetBack.
4. SCROLL DOWN KEY - Decreases the Set Tip Temperature in one, then ten-degree increments. Also
used to navigate menu options.
5. LED: CH 1, CH 2 or CH 3 Illuminated LED’s change color to reflect handpiece connectivity. GREEN
(circuit complete) AMBER (in process) RED (no connection / error)
6. POWER SWITCH - Turns system ON ("1") and OFF ("0"); controls input power to the system.
7. PRESSURE ADJUSTMENT – Controls the amount of pressure of airflow delivery.
8. PRESSURE PORT – Quick connect fitting which provides airflow for ThermoJet handpiece. Air pressure
will blow for a minimum of 1.2 seconds after activation and will remain active after that for as long as the
switch or foot pedal is depressed.
9. AUTO SNAP-VAC PORT - Quick connect fitting provides quick-rise vacuum for Sodr-X-Tractor, and
ThermoPik handpieces. Vacuum is present for a minimum of 1.2 seconds after activation and will remain
active after that for as long as the switch or foot pedal is depressed.
10. CH 1 POWER RECEPTACLE - Provides for connection of power, tip ground, and sensing circuitry
between the MBT system and handpiece connected to Channel 1 (CH 1).
CH 2 POWER RECEPTACLE – Provides for connection of power, tip ground, and sensing circuitry
between the MBT system and handpiece connected to Channel 2 (CH 2).
CH 3 POWER RECEPTACLE - Provides for connection of power, tip ground, sensing circuitry, and finger
switch input between the MBT system and handpiece connected to Channel 3 (CH 3).
