Pace SX-100 - Handpiece Replacement Parts; Service

PACE Sodr-X-Tractor Handpiece
©2012 PACE Inc., Southern Pines, NC. All Rights Reserved Page 10 of 11
www.paceworldwide.com
Handpiece Replacement Parts
Ref# Description Part Number
1 Solder Flux Chamber 1309-0054-P10
2
Handle Assembly (Black Connector)
Handle Assembly (Blue Connector)
6010-0115-P1
6010-0162-P1
3 Door Assembly 1119-0141-P1
4
Heater Assembly (Black Connector)
Heater Assembly (Blue Connector)
6010-0107-P1
6010-0163-P1
5 Plunger Shaft 1261-0154-P1
6 Plunger Lock 1500-0063-P1
7 Front Seal 1213-0087-P1
8 Rear Seal 1213-0086-P1
9 "C" Clips 1348-0387-P3
10 Spring "Long Slide" 1221-0136-P1
11 Spring "Short Slide" 1221-0137-P1
12 Door Lock 1119-0142-P1
* NOT PICTURED
13* Heater Set Screws Pack of 10 1348-0547-P10
14* Glass Flux Trap Kit 6000-0212-P1
15* Glass Chamber Only 1265-0011-P1
Service
Please contact PACE or your local distributor for service and repair.

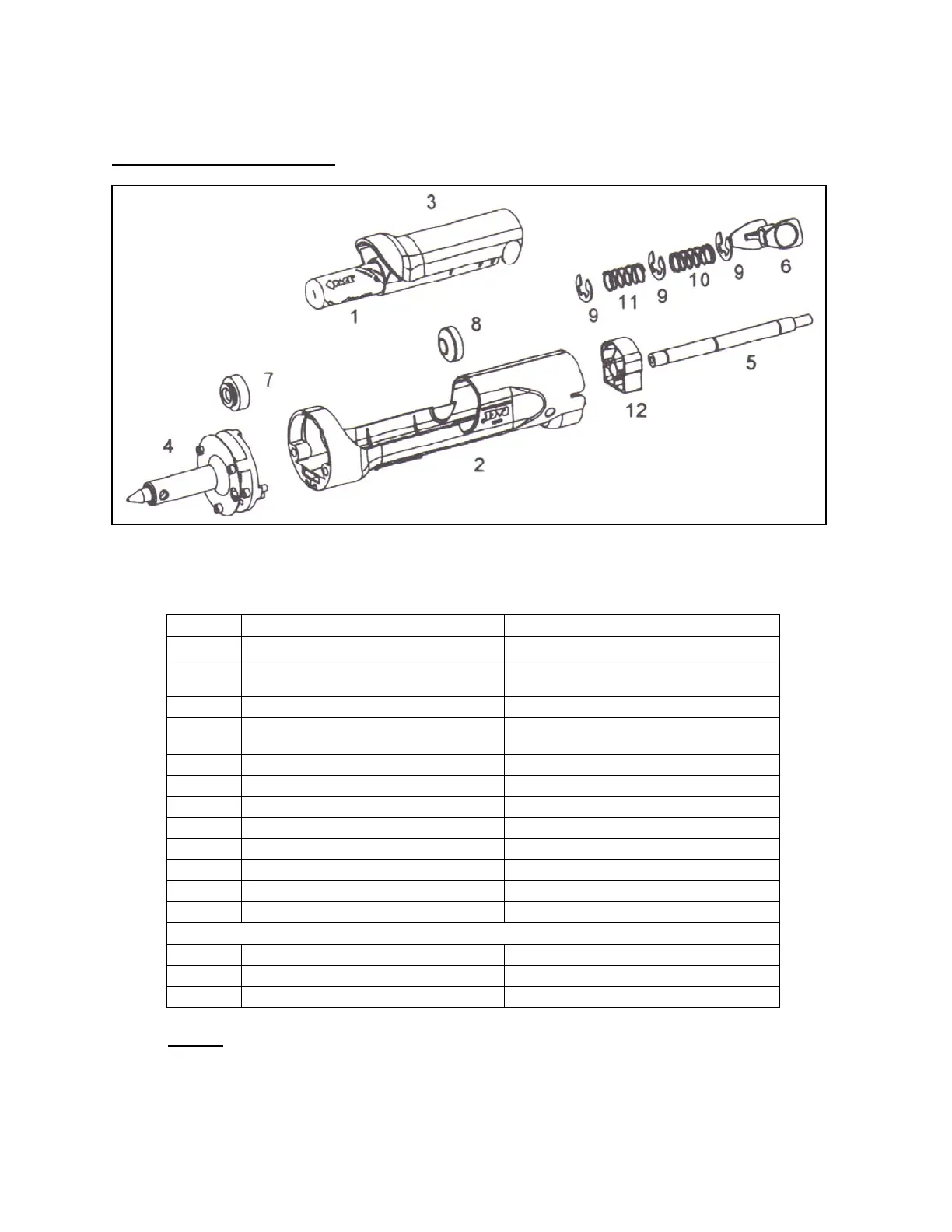

Sodr
-
X
-
Tractor Ex
p
loded Dia
g
ram
S
X
-90 Re
p
lacement Part Numbers
