TDC777D OPERATOR’S MANUAL (501-3432100)

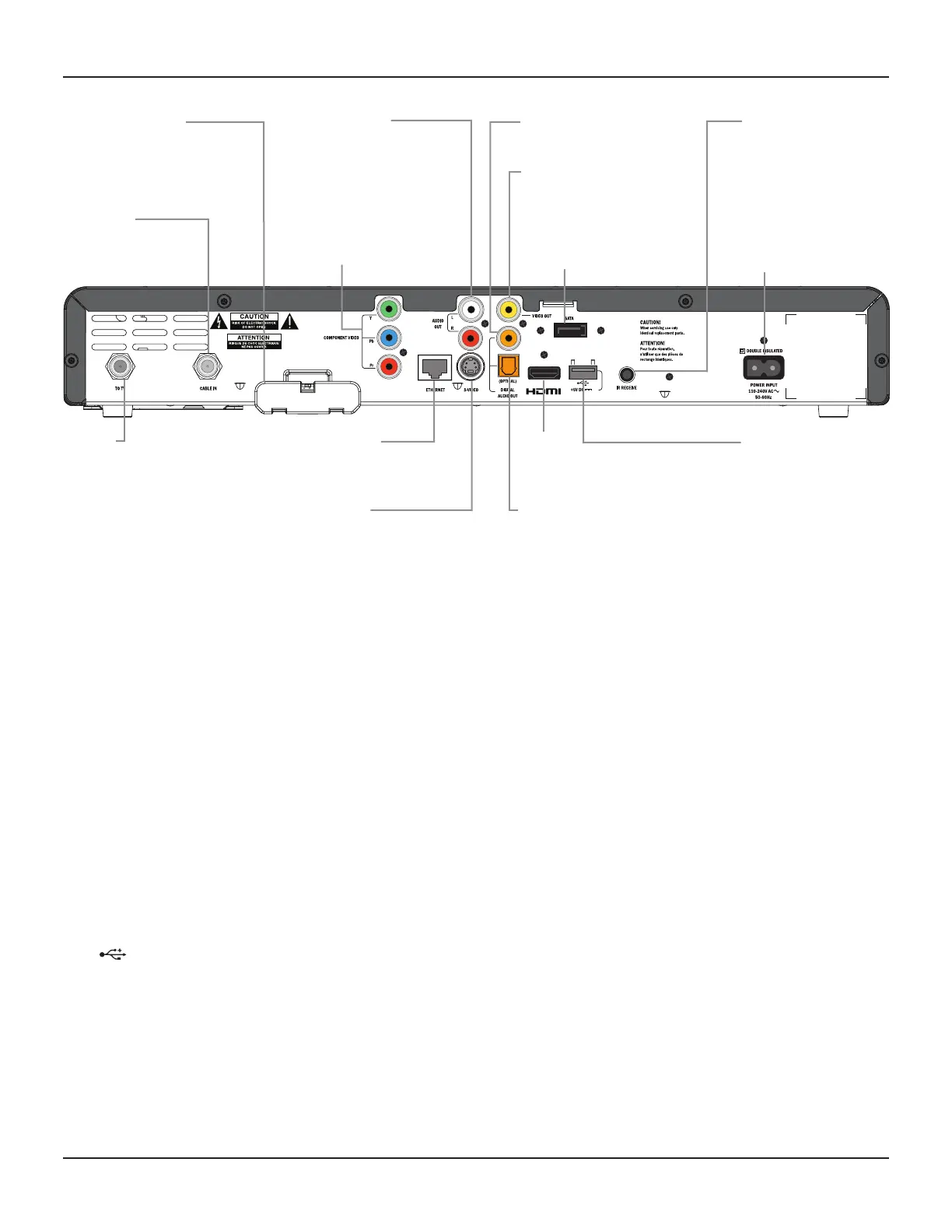

REAR PANEL
500mA MAX.
CABLE IN
Connect the cable service here.
TO TV
Connect to the RF/antenna input on your TV or VCR (optional).
AUDIO OUT
Connect to the L and R audio inputs on your stereo TV, stereo VCR, or optional stereo amplifier.
DIGITAL AUDIO OUT
Connect to the electrical digital audio input on optional digital audio equipment, such as an audio decoder or
home theater receiver.
DIGITAL AUDIO OUT (OPTICAL)
Connect to the optical digital audio input on optional digital audio equipment.
VIDEO OUT
Connect to the composite video input on your VCR (or a standard TV).
S-VIDEO
Connect to the S-video input (if present) on your VCR or TV.
COMPONENT VIDEO
If your HDTV does not have an HDMI, connect your HDTV here.
HDMI
(High Definition Multimedia
Interface)
If your HDTV has an HDMI, connect it here for a digital audio/video connection (instead of using the AUDIO
and three analog COMPONENT VIDEO connectors).
IR Receive
Connect to an optional remote “eye”.
SATA
Connect to an optional external hard disk (if enabled by your cable service-provider).
USB
(Universal Serial Bus) port
Connect to compatible optional equipment that supports a USB 2.0 interface (future use).
ETHERNET
For future use.
TV PASS MODULE
Connect a TV Pass
®
module, if required.
POWER INPUT
Connect your set-top’s power cord here. Make this connection last of all.
COMPONENT VIDEO
Component video
output for analog HDTV
AUDIO OUT
Audio outputs
(stereo, L and R)
CABLE IN
From cable
service-provider
TO TV
RF output to the
TV or VCR
S-VIDEO
S-video output
VIDEO OUT
Composite video output
SATA
For connection to an
optional external hard disk
DIGITAL AUDIO OUT
Electrical S/PDIF audio output
POWER INPUT
(Make this
connection
last of all)
DIGITAL AUDIO OUT (OPTICAL)
Optical S/PDIF audio output
ETHERNET
For future use
HDMI
TM
Video and audio output
for digital HDTV
USB (Universal Serial
Bus) port
For connection to an
optional USB device
(for future use)
IR RECEIVE
Infra-red input from
a remote “eye”
TV PASS MODULE
Connector for a TV Pass
®
module (for installers’ use only)
