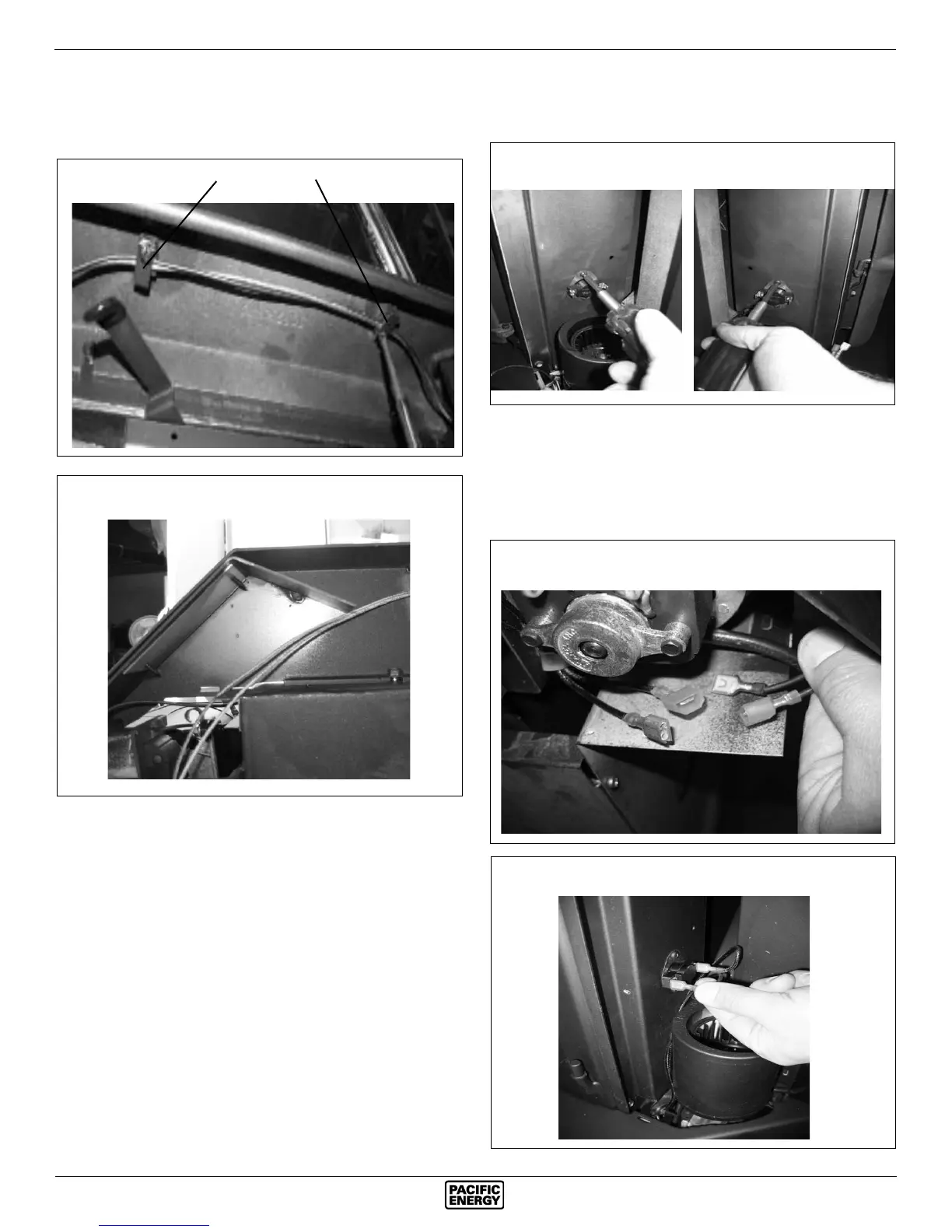

6) Route cable from speed control to fan and reattach wire
support tabs on the underside of the ash lip. Note wire
positions. (Fig.18 & Fig.19)
7) Remove Thermal switch from right hand fan mounting
bracket and relocate to left hand fan mounting bracket.
Fig #20&21
8) Reconnect the wires to the fans (Fig.22) and thermal snap
switch (Fig.23), re๎ t ash lip, sides and top. Ensure that
the power cable is correctly routed through the surround
and it is not touching the ๎ rebox side. Wire placement is
important to prevent damage to wires.
WIRE SUPPORT TABS
Fig. # 18
Fig. # 19
Fig. # 21
Fig. # 20
Fig. # 22
Fig. # 23
