Pacific energy SUMMIT INSERT - Appendix A; Firebrick Installation

SINC 250314-24 19
ITEM SIZE PART NUMBER
A 1 1/2” X 4 1/2” X 1 1/4” (39 mm x 115 mm x 32 mm) 248.001
B 4” X 4 1/2” X 1 1/4” (102 mm x 115 mm x 32 mm) 246.001
C 7 1/4” X 4 1/2” X 1 1/4” (184 mm x 115 mm x 32 mm) 245.001
D 9” X 4 1/2” X 1 1/4” (230 mm x 115 mm x 32 mm) 5096.99
E 9” X 4 1/2” (cut) X 1 1/4” (230 mm x 115 mm (cut) x 32 mm) 3245.011
F 9” X 3 1/2” X 1 1/4” (102 mm x 115 mm x 32 mm) 3245.501
Summit Insert Wood Stove
This package contains 17 full-size fi rebricks, as well as 7 various cut-size bricks.

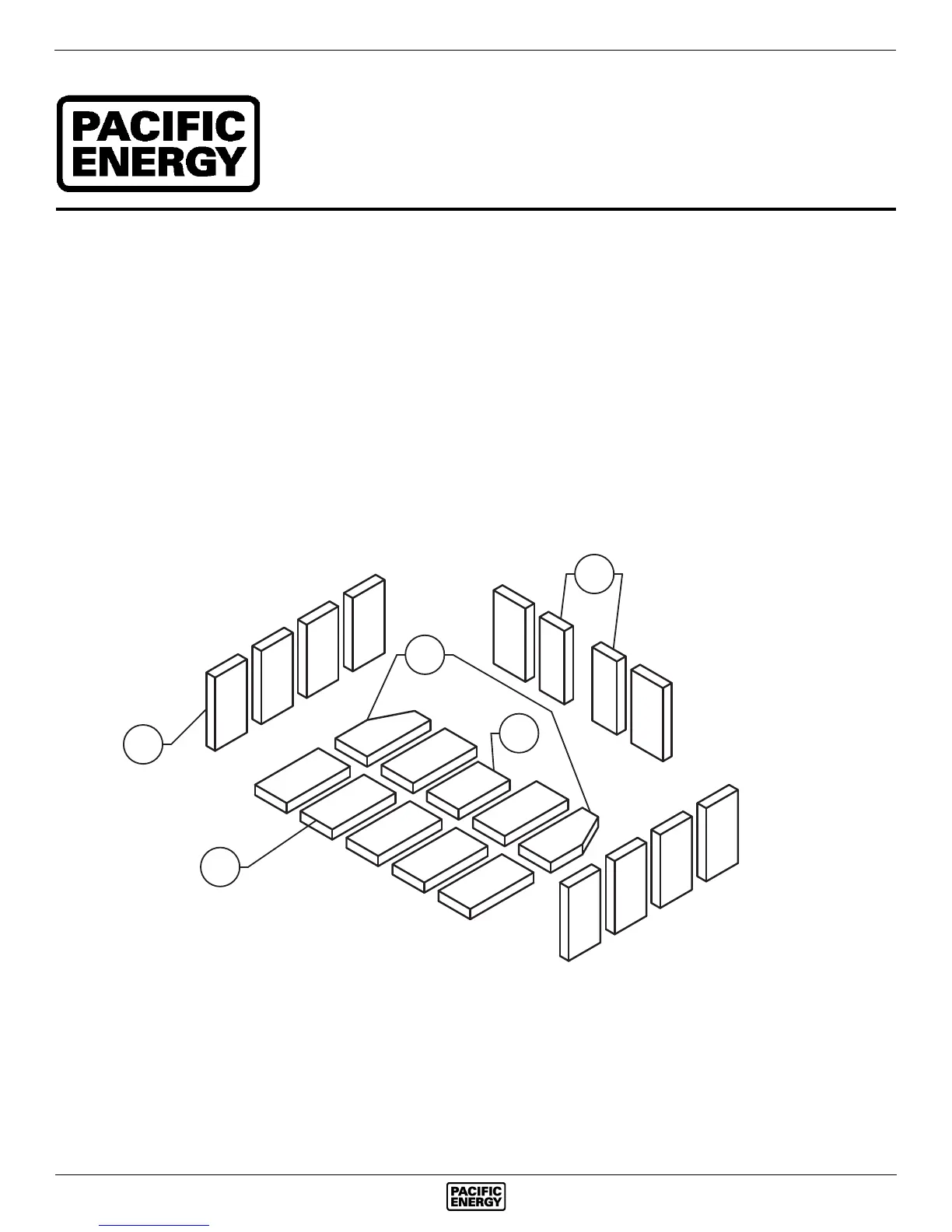

With the woodstove in the upright position, install fi rebricks as follows:
1) Place the fi rebricks on the bottom of the unit fi rst. Use 7 full-size (D) and 3 cut
bricks (C & 2E).
2) Next install the side fi rebricks, 4 full-size bricks on each side of the fi rebox as
shown.
3) Finally install 2 full-size and 2 cut fi rebricks against the rear wall as shown.
F
C
E
D
D
Firebrick Installation
NOTE: FIREBRICKS WILL
NOT FIT TIGHT ON
BOTTOM.
