Page 8 For technical questions, please call 1-888-866-5797. ITEM 69746
SAFETY SETUP OPERATION MAINTENANCE

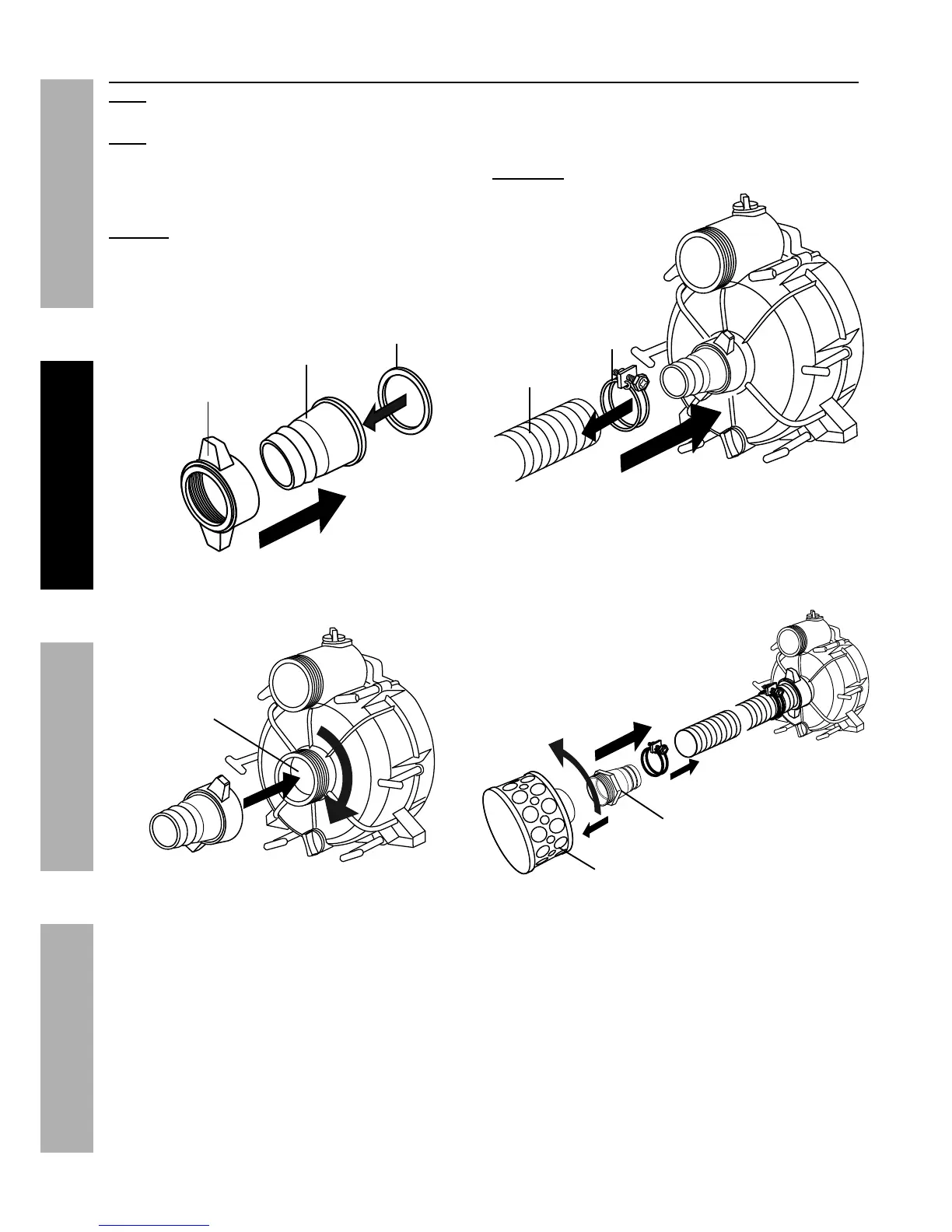

Connecting Hoses
Note: Hose coupling components
and hoses not included.
Note: The Suction Hose (not included)
MUST be reinforced with braided material or
have non-collapsible construction. Do not use
a hose with an inside diameter smaller than 3"
(pump’s intake and discharge port diameters).
NOTICE: Do not over-tighten Hose Clamps as the
clamp may damage the hose or other components.
1. Slide one of the Hose Coupling Rings over
one of the Hose Couplers (a), then place a
Gasket on the end of the Hose Coupler (b).
Gasket
Hose Coupler
Hose Coupling Ring
a
b
2. Thread the Hose Coupling Ring onto
the Intake Port (a), and turn clockwise
until fastened securely (b).
Intake Port
3. Slide one of the Hose Clamps over the end of the
suction hose (a). Slide the Hose onto the Hose
Coupler (b). Use a screwdriver (not included)
to tighten the Hose Clamp until secure.
CAUTION: Use only a non-collapsible intake hose.
a
b
Hose Clamp
Suction Hose
4. Slide the threaded Hose Coupler onto the Intake
Strainer and thread it securely in place, turning
clockwise (a and b). Slide a Hose Clamp over
the end of the suction hose (c). Slide the Intake
Strainer into the end of the suction hose (d). Use a
screwdriver to tighten the Hose Clamp until secure.
Threaded
Hose Coupler
Intake Strainer
a
c
b
d
