IV. Installation Procedures
-SC8230S/W, SC8236S/W,SC8830BS/BW, SC8836BS/BW
Hood is designed for installation under a kitchen cabinet.

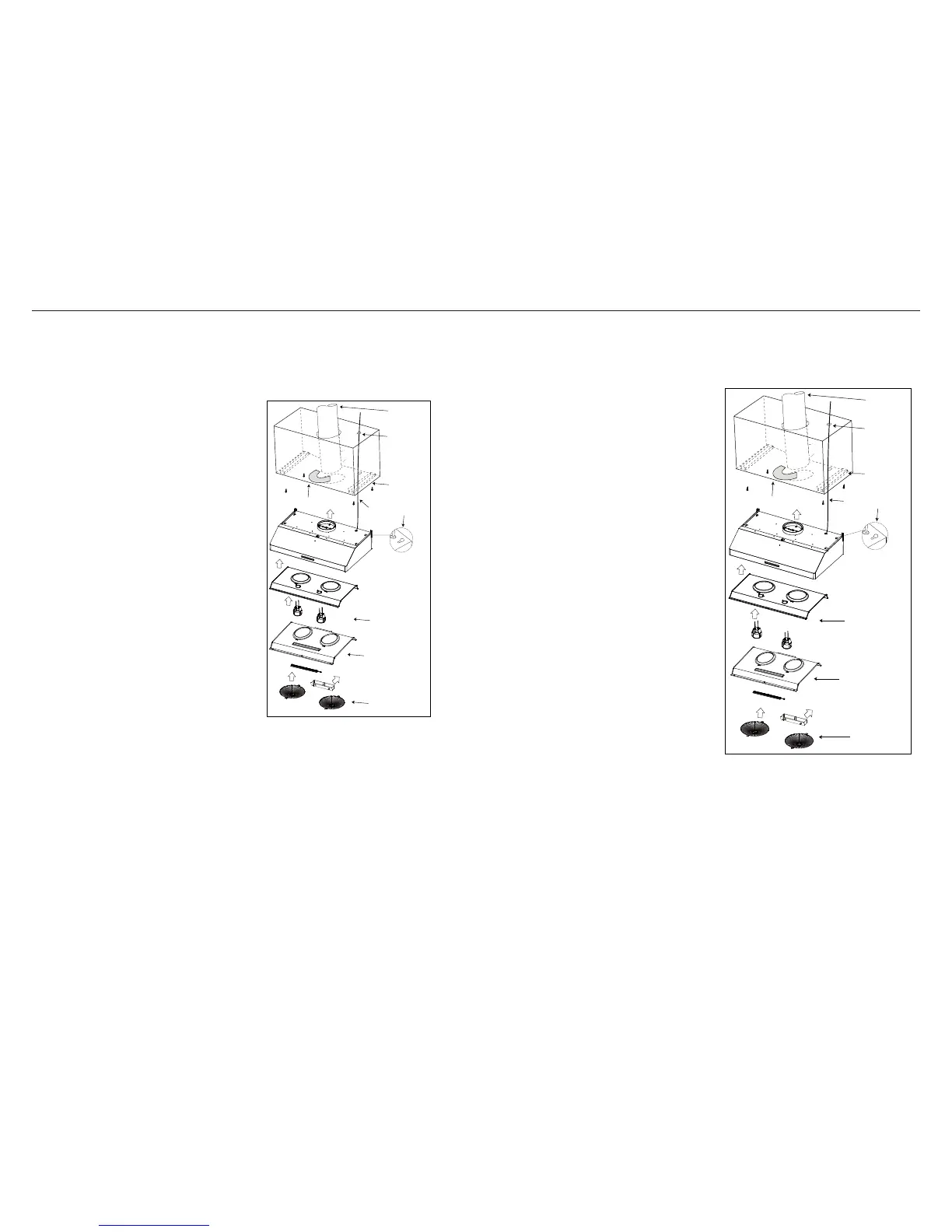

See Fig.1 for details.
1. Prepare duct location on hood .
7. Install electrical.
8. Install ductwork and seal with aluminum duct tape.
10. Reinstall bottom panel and reconnect lighting harness.
11. Slide oil cup into their opening on the bottom of the hood. Install protection
grilles over each blower opening and secure with the pre-installed screw.
9. Power up hood and check for leaks around duct tape and test all functions.
3. Reinforce cabinet bottom with wood strips
if additional strengthening is required or if
cabinets are framed.
4. Remove bottom panel from hood using a
Philips screwdriver to remove each of the
screws. Also remove lighting harness by
pressing in on the clip to release the lights
from the internal wiring.
5. Use 4 wooden screws to secure the hood
to the bottom of the cabinet.
6. Lift hood onto screws located on cabinet
bottom and lock into place. Make sure all
(4) key-holes cover the screws. Tighten
each screw to secure hood to cabinet.
2. Measure and cut out duct and electrical
openings in cabinet or wall to match up
with the hood. Make sure duct opening is
large enough to apply aluminum duct tape.
