Pacific SC8230S - Venting Instruction; 五.安裝排風管

V. Venting Instruction
side wall cap
w/gravity damper
cabinet
soffit or crawl space
side wall cap
w/gravity damper
roof pitch w/
flashing & cap
WARNING FIRE HAZARD

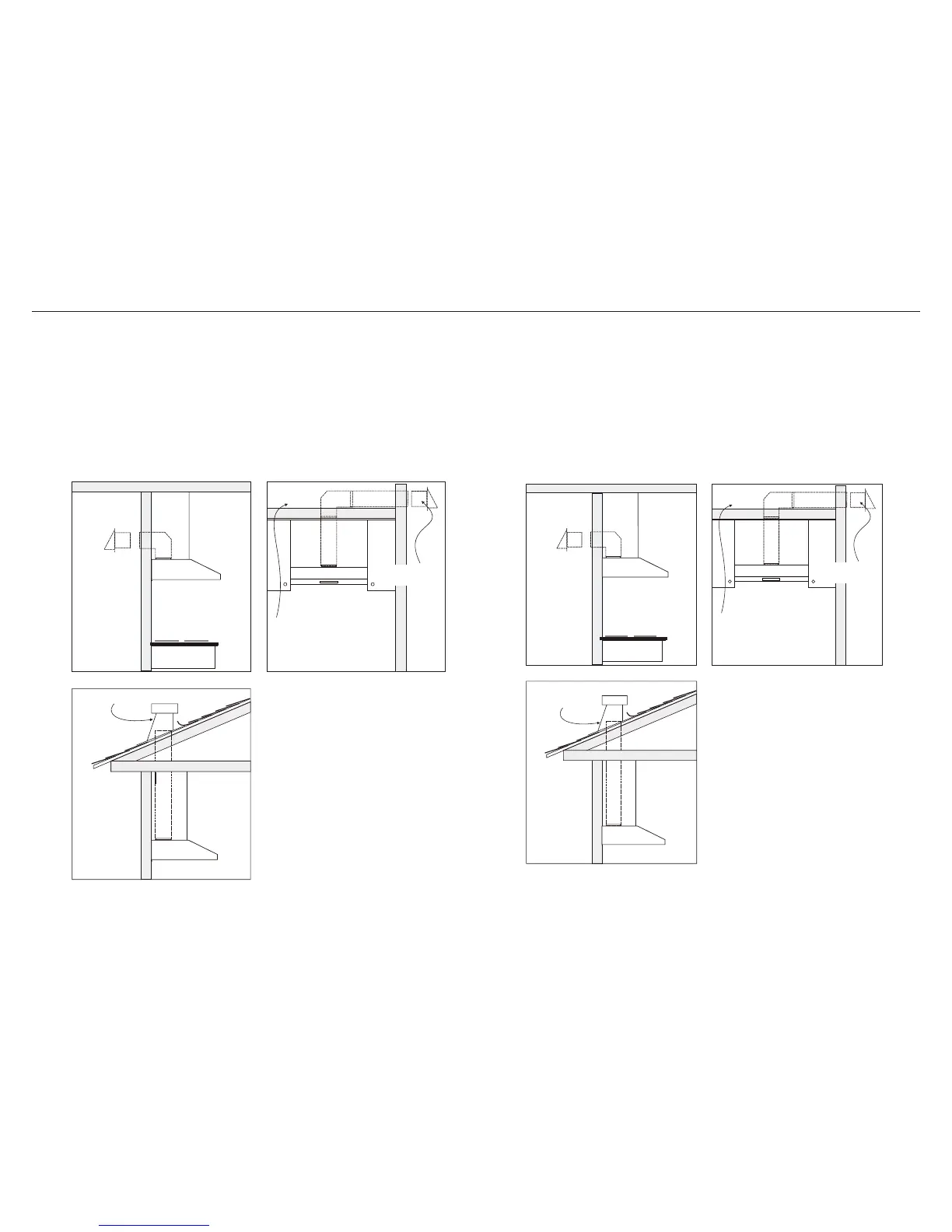

Ducting Options
NEVER exhaust air or terminate duct work into spaces between walls, crawl
spaces, ceiling, attics or garages. All exhaust must be ducted to the outside.
Use metal ductwork only.
Fasten all connections with sheet metal screws and tape all joints with
certified Silver Tape or Duct Tape.
五.安裝排風管
用重力阻尼器
加蓋於側牆面
櫥櫃
依梁柱底面或櫥櫃空間爬行
用重力阻尼器
加蓋於側牆面
屋面坡度可以用遮雨罩或其他遮罩加蓋
櫥櫃安裝注意事項:
安裝之風管、牆壁、櫥櫃空間、天花板或車庫與閣樓之間的空間都要有所保留。
風管只能使用金屬材質。
安裝之連接處的金屬螺絲要鎖緊，接頭處要用有認證的銀膠帶或風管膠帶貼緊。
風管安裝選項:
