IV. Installation Procedures
-SC8130S/W & SC8136S/W
Hood is designed for installation under a kitchen cabinet.

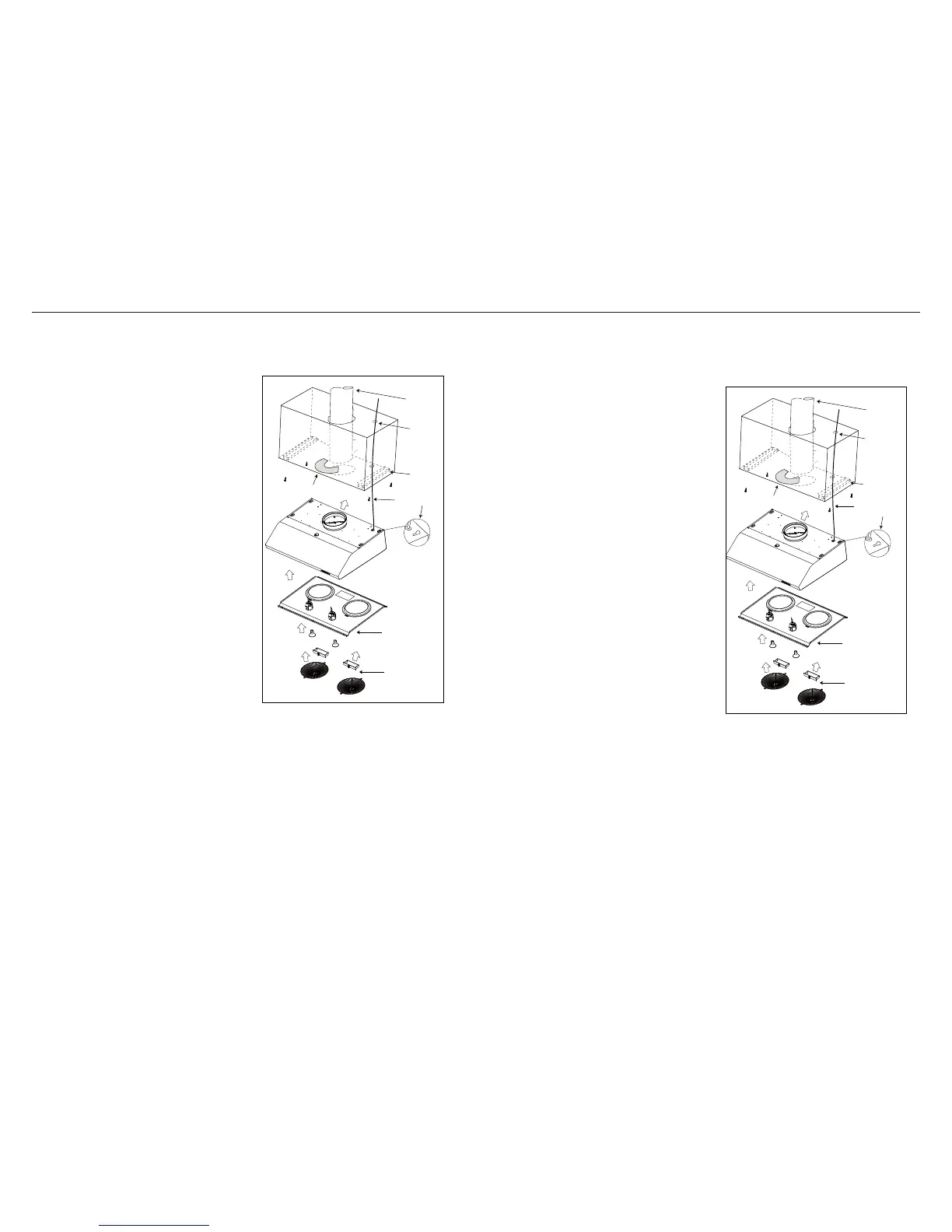

See Fig.1 for details.
1. Prepare duct location on hood .
7. Install electrical.
8. Install ductwork and seal with aluminum duct tape.
10. Reinstall bottom panel and reconnect lighting harness.
11. Slide oil cups into their openings on the bottom of the hood. Install protection
grilles over each blower opening and secure with the pre-installed screw.
9. Power up hood and check for leaks around duct tape and test all functions.
3. Reinforce cabinet bottom with wood strips
if additional strengthening is required or
if cabinets are framed.
4. Remove bottom panel from hood using
a Philips screwdriver to remove each of
the screws. Also remove lighting harness
by pressing in on the clip to release the
lights from the internal wiring.
5. Use 4 wooden screws to secure the
hood to the bottom of the cabinet.
6. Lift hood onto screws located on cabinet
bottom and lock into place. Make sure
all(4) key-holes cover the screws.
Tighten each screw to secure hood to
cabinet.
2. Measure and cut out duct and electrical
openings in cabinet or wall to match up
with the hood. Make sure duct opening
is large enough to apply aluminum duct
tape.
Fig 1
