Paco-Pumps KP - Page 13

13
B1d.1
4/06
Supercedes 8/05
PACOPACO
PACOPACO
PACO
PUMPS

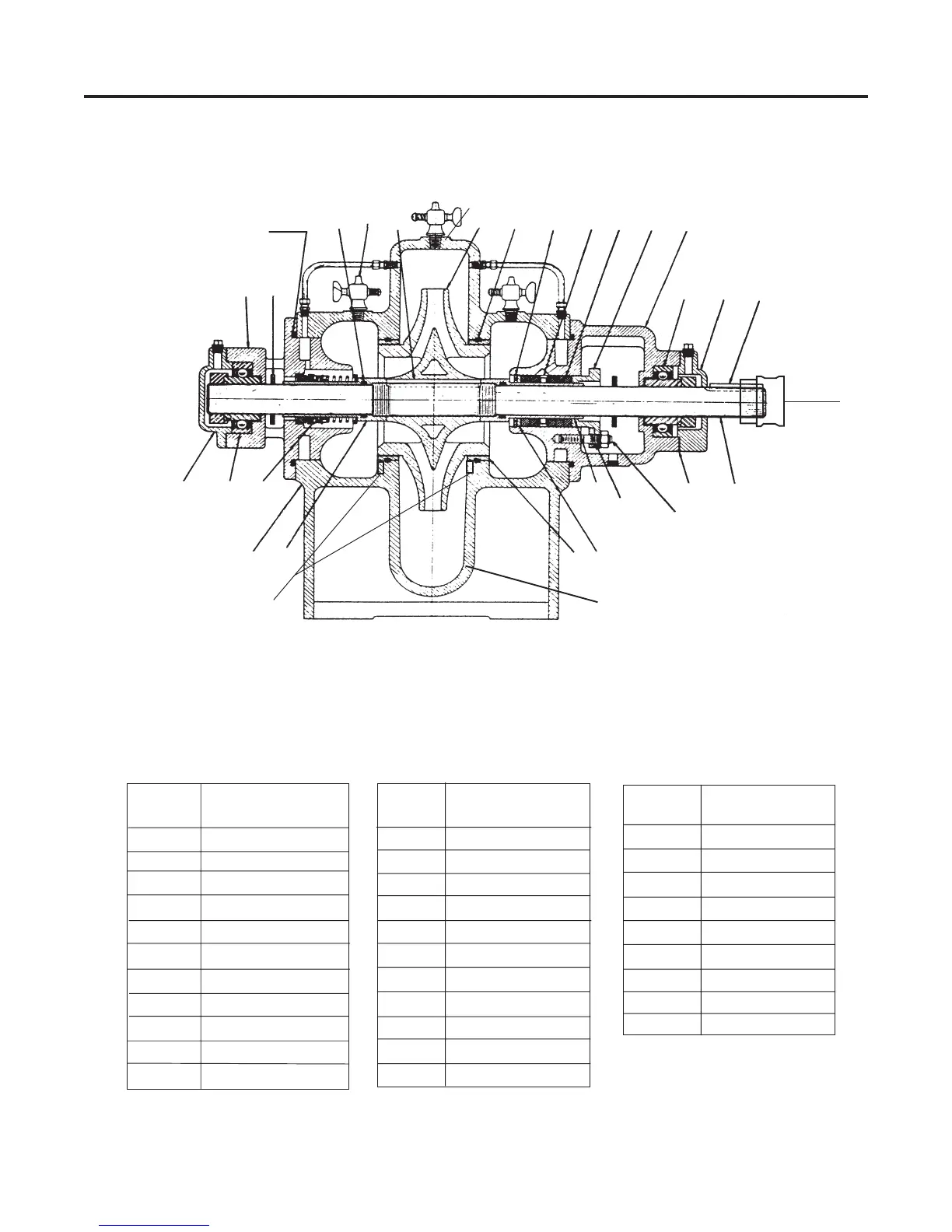

Horizontally Mounted Type KP
18A
14A
11X
5A
4A
3D
35F
22A
7A
12A
98M
1L
1A
17E
10K
6A
12B
26K
13G
19A
1A
5D
61P
61J 5L
13A
26J
15A
17S
18B
19B
23B
ITEM
NO.
1A
1L
3D
4A
4B
5A
5D
5L
6A
7A
10K
PART
NAME
Upper Case
Lower Case
Impeller
Wear Ring
Casing Wear Ring
Shaft Sleeve
Shaft Sleeve
Lantern Ring
Pump shaft
Packing Gland
Packing Retainer
ITEM
NO.
11X
12A
12B
13A
13G
14A
16D
15A
17E
17S
18A
PART
NAME
Gasket
Key
Coupling Key
Packing Ring
Water Slinger
Seal Seat
Plug
Petcock
O-Ring Gasket
O-Ring Gasket
Bearings
ITEM
NO.
18B
19A
19B
23B
26J
26K
61J
61P
98M
PART
NAME
Bearings
Bearing Cap
Bearing Cap
Coupling Half
Bearing Housing
Bearing Housing
Retaining Ring
Retaining Ring
Roll Pin
