Electric heater Aqua compact
MA45-25 GB Translation of the original instructions (Swedish)
Product description
The Aqua compact electric heater is available from 3 kW to 18 kW, see the type plate on the product.
The heater is supplied with built-in safety functions such as an adjustable thermostat (with a temperature range of 0 -45°C),
overheating protection (with a maximum breakage temperature of 60°C) and a ow monitor.
The casing is made of reinforced thermoplastic (short casing: 3/6/9 kW, long casing: 12/15/18 kW), the heater element is made
of Incoloy 825 (or titanium) and the connections are made of PVC.
As standard, connections for internal gluing to Ø50 mm PVC pipes are included.
Option A: connections for internal gluing to Ø1½" PVC pipes.
Option B: connections with 1½" internal thread.
NOTE! The standard version of the heater (with Incoloy element) is not intended for use in aggressive water, salt water or in
pools with a chlorine machine/salt generator. In such contexts, Aqua Compact Titanium is required.
Technical data
Min. ow 90 l/min
Max. ow 300 l/min
Voltage: 230 V 1-phase (3-6 kW), 230 V 3-phase (3-18 kW), 400 V 3-phase (3-18 kW)
Max. pressure: 2.5 bar (2.5 Pa)
Max. temperature: 45°C
Enclosure class: IP45
Rated power and power consumption
Power Rated power 220-240 V / 380-415 V 50-60 Hz Power consumption
Standard Titanium 230 V, 1-phase 230 V, 3-phase 400 V, 3-phase
3 kW 2.7–3.5 kW 2.7–3.2 kW 13 A 8 A 5 A
6 kW 5.4–6.5 kW 5.4–6.5 kW 26 A 15 A 9 A
9 kW 8.1–9.7 kW 8.1–9.7 kW — 23 A 14 A
12 kW 10.8–13 kW 10.8–12.9 kW — 31 A 18 A
15 kW 13.5–16.2 kW 13.5–16.1 kW — 38 A 22 A
18 kW 16.2–19.4 kW 16.2–19.4 kW — 46 A 27 A

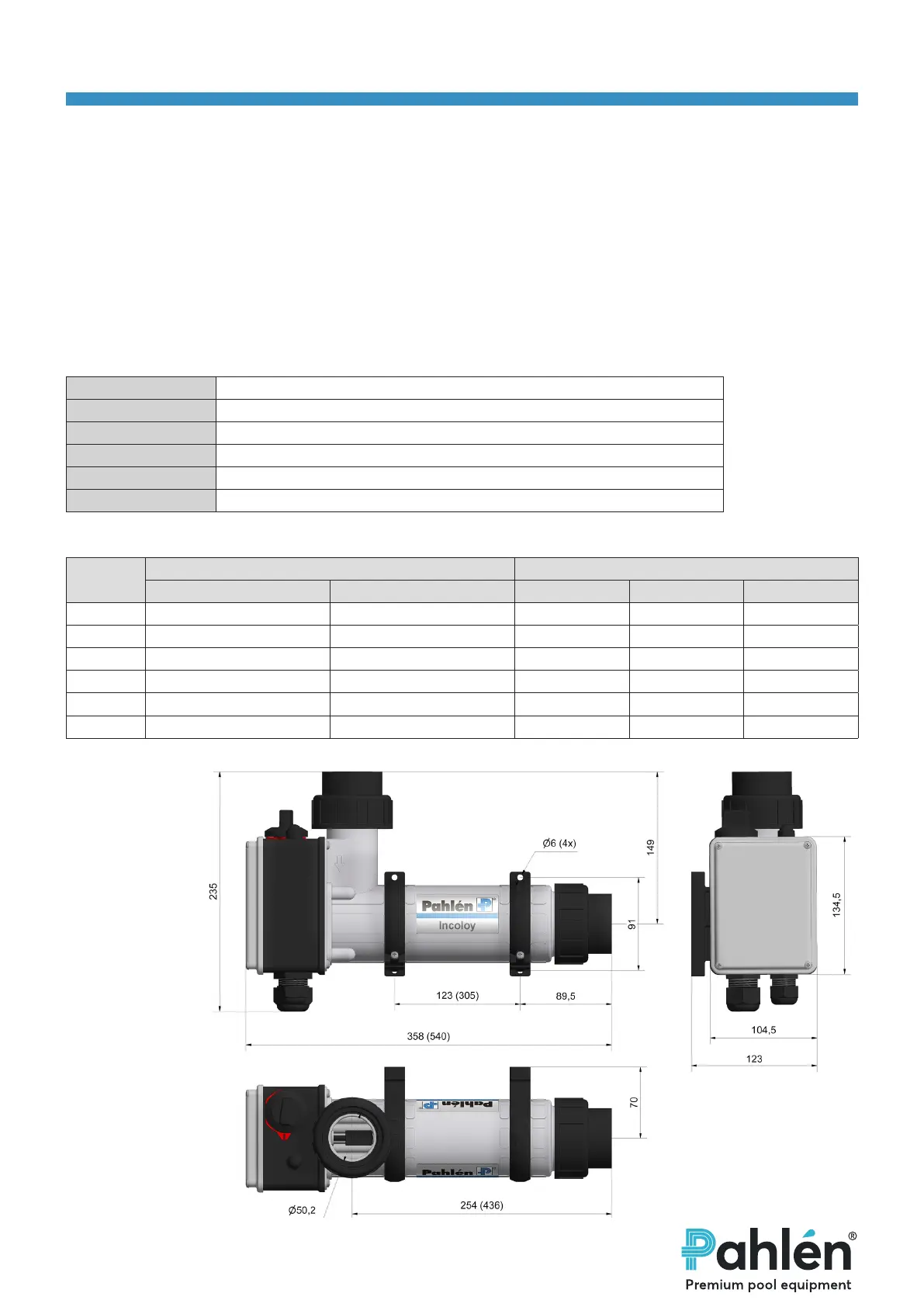

Dimensions
