Damage to the body may occur if up stops are not installed properly
How to install the Up-stop:
1. Raise platform up to rear sill verifying it is level with body floor and there is a slight gap (approx. 1/8”)
between lift arm and rear sill.
2. Determine type of up stop for your installation.
3. Set up stop so that it makes contact with liftarm.
4. Tack weld in place.
5. Cycle gate to verify liftarm makes contact with left and right up stops before making contact with rear
sill.
6. There is not an excess gap between rear sill and liftarm
7. Platform is level with body floor.

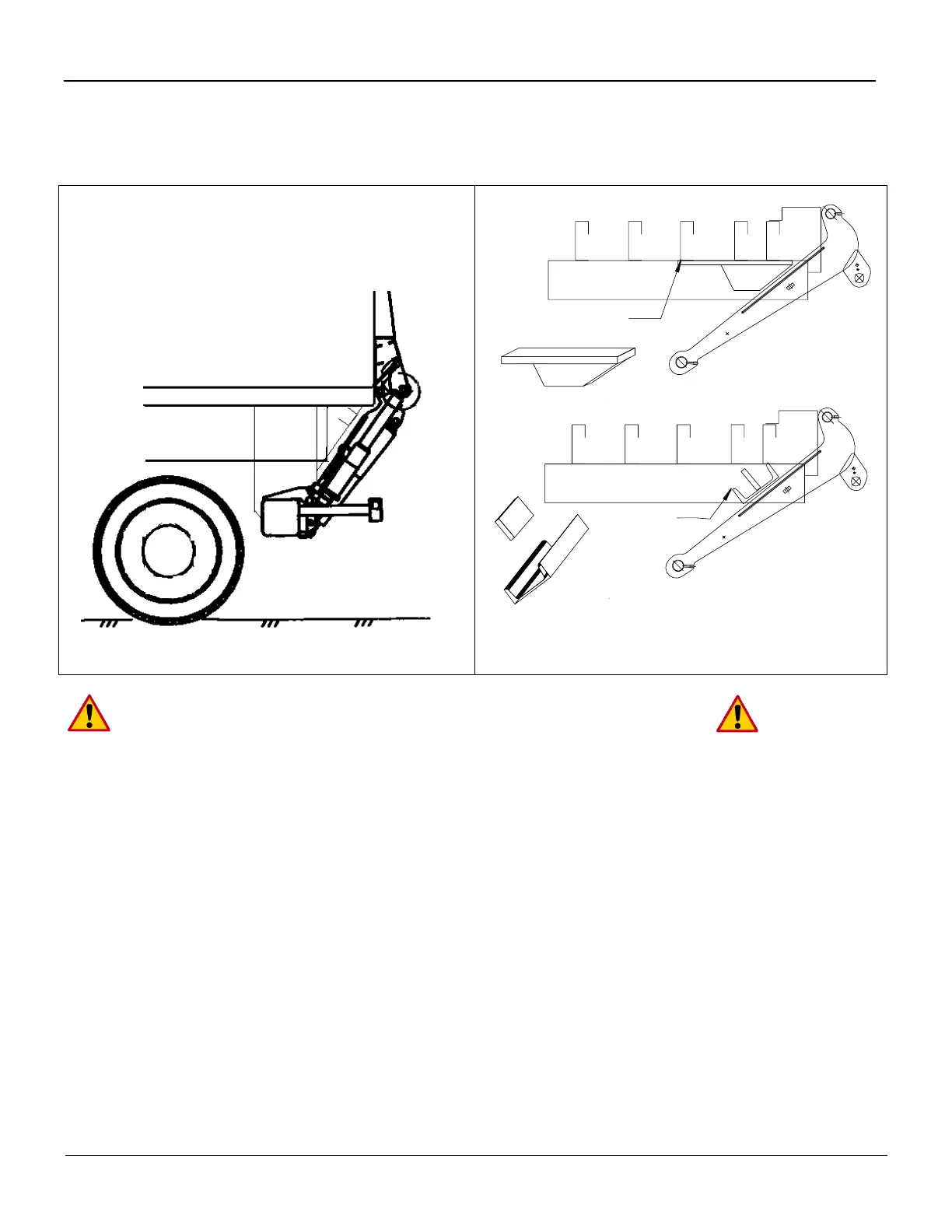

Install the liftarm up stop
so it is positioned in a
way that it stops the
liftarm when the platform
is level with the floor of
the truck
